OA172AP Series

Catalog

AC FAN, 135 CFM, 1800 RPM, 16 W, 115 VAC, 33 DB, 172 MM X 51 MM, TERMINALS

Part	Material - Frame	Lifetime @ Temp.	Material - Blade	Voltage Range [Min]	Voltage Range [Max]	Weight	Weight	Voltage - Rated	RPM	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Bearing Type	Air Flow	Air Flow	Power (Watts)	Size / Dimension [diameter]	Size / Dimension	Approval Agency	Width [x]	Fan Type	Termination	Static Pressure	Static Pressure	Noise	Ingress Protection	Termination

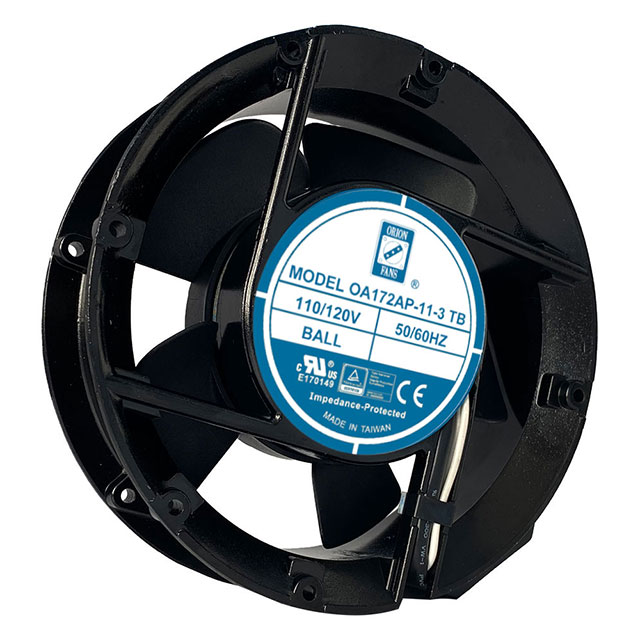

ORION FANS OA172AP-11-3TB	Aluminum	40 °C 60000 Hrs	Polybutylene Terephthalate (PBT)	80 VAC	130 VAC	2.7 lbs	1.2 kg	115 VAC	1800 RPM	-40 C	70 °C	70 °C	-40 °C	Ball	135 CFM	3.78 mł/min	16 W	172 mm	Round	cURus TUV	51 mm	Tubeaxial	2	107.1 Pa	0.43 in H2O	33 dB(A)
ORION FANS OA172AP-22-1TB	Aluminum	40 °C 60000 Hrs	Polybutylene Terephthalate (PBT)	160 VAC	260 VAC	2.7 lbs	1.2 kg	230 VAC	3200 RPM	-40 C	70 °C	70 °C	-40 °C	Ball	235 CFM	6.58 m³/min	35 W	172 mm	Round	cURus TUV	51 mm	Tubeaxial	2	174.4 Pa	0.7 in H2O	52 dB

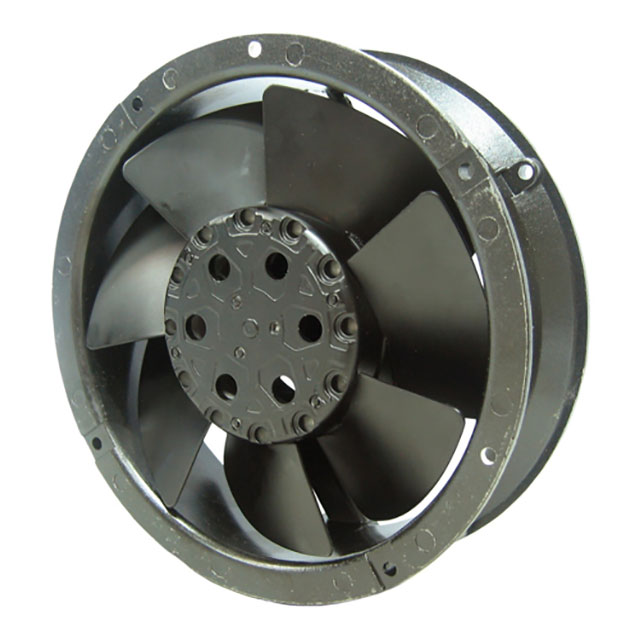

ORION FANS OA172AP-22-1TB1855	Aluminum	50000 Hrs	Metal			3 lb	1.4 kg	230 VAC	3200 RPM					Ball	215 CFM	6.02 m³/min	42 W	172 mm	Round		51 mm	Tubeaxial	2	127 Pa	0.51 in H2O	59 dB(A)	IP55 - Dust Protected Water Resistant
ORION FANS OA172AP-22-3TB								230 VAC	1800 RPM	-40 C	70 °C	70 °C	-40 °C	Ball	135 CFM	3.78 mł/min	16 W	172 mm	Round	cURus TUV	51 mm	Tubeaxial	2	107 Pa	0.43 in H2O	33 dB(A)
ORION FANS OA172AP-22-1WB1855	Aluminum	50000 Hrs	Metal			3 lb	1.4 kg	230 VAC	3200 RPM					Ball	215 CFM	6.02 m³/min	42 W	172 mm	Round		51 mm	Tubeaxial		127 Pa	0.51 in H2O	59 dB(A)	IP55 - Dust Protected Water Resistant	2 Wire Leads
ORION FANS OA172AP-11-2TB	Aluminum	40 °C 60000 Hrs	Polybutylene Terephthalate (PBT)	80 VAC	130 VAC	2.7 lbs	1.2 kg	115 VAC	2400 RPM	-40 C	70 °C	70 °C	-40 °C	Ball	170 CFM	4.76 m³/min	20 W	172 mm	Round	cURus TUV	51 mm	Tubeaxial	2	122.1 Pa	0.49 in H2O	42 dB
ORION FANS OA172AP-11-2WB	Aluminum	40 °C 60000 Hrs	Polybutylene Terephthalate (PBT)	80 VAC	130 VAC	2.7 lbs	1.2 kg	115 VAC	2400 RPM	-40 C	70 °C	70 °C	-40 °C	Ball	170 CFM	4.76 m³/min	20 W	172 mm	Round	cURus TUV	51 mm	Tubeaxial		122.1 Pa	0.49 in H2O	42 dB		2 Wire Leads
ORION FANS OA172AP-22-2TB	Aluminum	40 °C 60000 Hrs	Polybutylene Terephthalate (PBT)	160 VAC	260 VAC	2.7 lbs	1.2 kg	230 VAC	2400 RPM	-40 C	70 °C	70 °C	-40 °C	Ball	170 CFM	4.76 m³/min	20 W	172 mm	Round	cURus TUV	51 mm	Tubeaxial	2	122.1 Pa	0.49 in H2O	42 dB
ORION FANS OA172AP-22-1WB	Aluminum	40 °C 60000 Hrs	Polybutylene Terephthalate (PBT)	160 VAC	260 VAC	2.7 lbs	1.2 kg	230 VAC	3200 RPM	-40 C	70 °C	70 °C	-40 °C	Ball	235 CFM	6.58 m³/min	35 W	172 mm	Round	cURus TUV	51 mm	Tubeaxial		174.4 Pa	0.7 in H2O	52 dB		2 Wire Leads

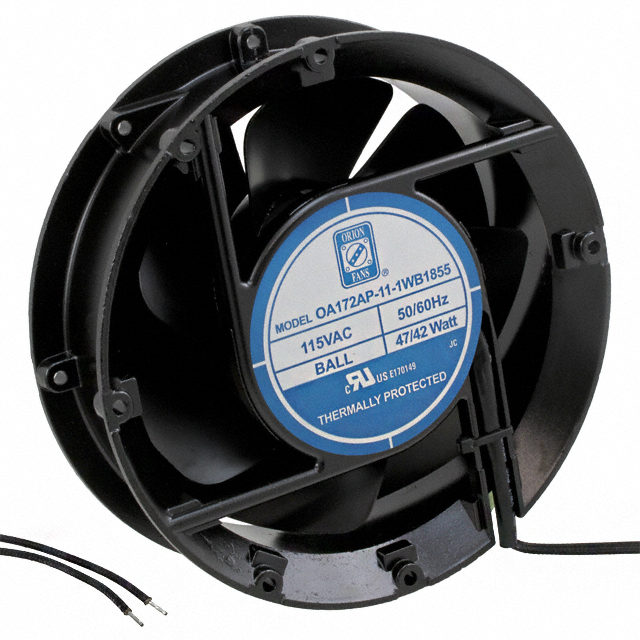

ORION FANS OA172AP-11-1WB1855	Aluminum	50000 Hrs	Metal	100 VAC	120 VAC	3 lb	1.4 kg	115 VAC	3200 RPM					Ball	215 CFM	6.02 m³/min	42 W	172 mm	Round		51 mm	Tubeaxial		127 Pa	0.51 in H2O	59 dB(A)	IP55 - Dust Protected Water Resistant	2 Wire Leads
