2211 Series
Manufacturer: Oupiin
Beta
⌘K

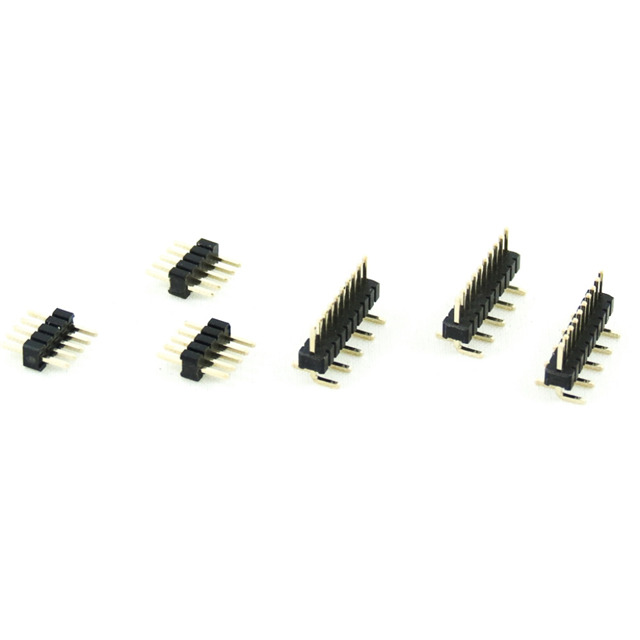

PIN HEADER, SINGLE ROW, 5 PIN, S
| Part | Contact Length - Mating | Contact Finish Thickness - Post | Contact Finish Thickness - Post (string_set) | Material Flammability Rating | Insulation Height | Current Rating | Fastening Type | Shrouding | Pitch - Mating | Contact Length - Post | Number of Rows | Contact Shape | Contact Type | Contact Material | Contact Finish Thickness - Mating | Insulation Material | Connector Type | Contact Finish - Mating | Overall Contact Length | Termination | Contact Finish - Post | Mounting Type | Number of Positions Loaded | Operating Temperature (Min) | Operating Temperature (Max) | Style | Insulation Color | Number of Positions | Row Spacing - Mating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Oupiin | 0.11 in | Flash | Flash | UL94 V-0 | 0.067 in | 1 A | Push-Pull | Unshrouded | 0.05 in | 0.102 in | 1 | Square | Male Pin | Brass | Flash | Nylon 6T Polyamide (PA6T) | Header | Gold | 0.28 in | Solder | Gold | Through Hole | All | -40 °C | 105 °C | Board | Black | 5 | |
Oupiin | 0.11 in | Flash | Flash | UL94 V-0 | 0.067 in | 1 A | Push-Pull | Unshrouded | 0.05 in | 0.102 in | 1 | Square | Male Pin | Brass | Flash | Nylon 6T Polyamide (PA6T) | Header | Gold | 0.28 in | Solder | Gold | Through Hole | All | -40 °C | 105 °C | Board | Black | 7 | |
Oupiin | 0.11 in | Flash | Flash | UL94 V-0 | 0.067 in | 1 A | Push-Pull | Unshrouded | 0.05 in | 0.102 in | 1 | Square | Male Pin | Brass | Flash | Nylon 6T Polyamide (PA6T) | Header | Gold | 0.28 in | Solder | Gold | Through Hole | All | -40 °C | 105 °C | Board | Black | 10 | |

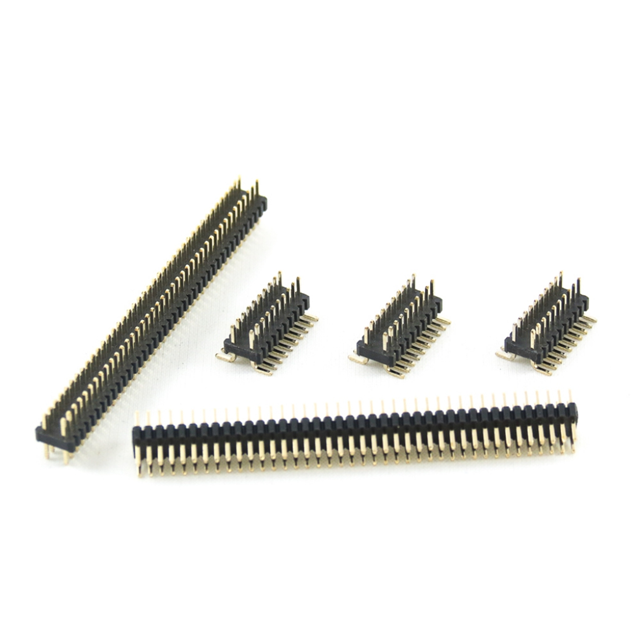

 Oupiin | 0.11 in | Flash | Flash | UL94 V-0 | 0.067 in | 1 A | Push-Pull | Unshrouded | 0.1 in | 0.102 in | 2 | Square | Male Pin | Brass | Flash | Nylon 6T Polyamide (PA6T) | Cuttable Header | Gold | 0.28 in | Solder | Gold | Through Hole | All | -40 °C | 105 °C | Board | Black | 20 | 0.1 in |
Oupiin | 0.11 in | Flash | Flash | UL94 V-0 | 0.067 in | 1 A | Push-Pull | Unshrouded | 0.05 in | 0.102 in | 1 | Square | Male Pin | Brass | Flash | Nylon 6T Polyamide (PA6T) | Header | Gold | 0.28 in | Solder | Gold | Through Hole | All | -40 °C | 105 °C | Board | Black | 6 | |
Oupiin | 0.11 in | Flash | Flash | UL94 V-0 | 0.067 in | 1 A | Push-Pull | Unshrouded | 0.05 in | 0.102 in | 1 | Square | Male Pin | Brass | Flash | Nylon 6T Polyamide (PA6T) | Header | Gold | 0.28 in | Solder | Gold | Through Hole | All | -40 °C | 105 °C | Board | Black | 9 |
