GSM160B20 Series
Manufacturer: MEAN WELL USA Inc.
Beta
⌘K

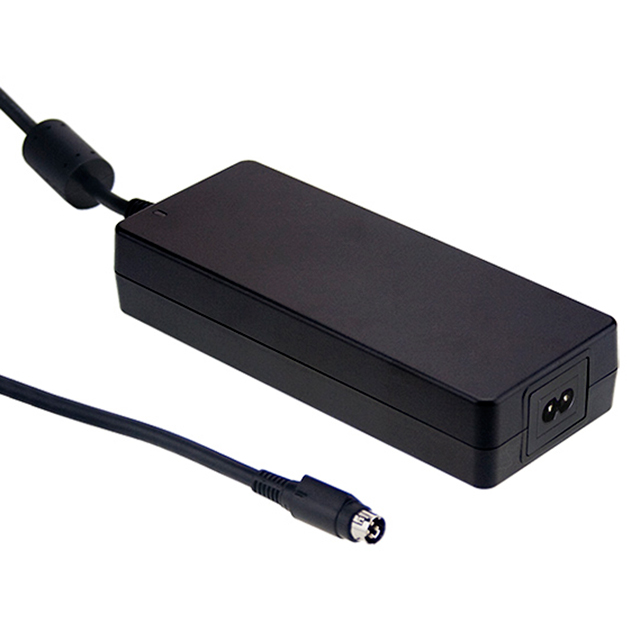

AC/DC DESKTOP ADAPTER 20V 160W
| Part | Region Utilized | Operating Temperature [Min] | Operating Temperature [Max] | Approval Agency | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [x] | Efficiency | Input Type | Voltage - Output | Voltage - Input [Min] | Voltage - Input [Max] | Output Connector | Power (Watts) | No Load Power Consumption | Form | Applications | Input Connector | Cord Length | Cord Length | Current - Output (Max) [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 MEAN WELL USA Inc. | International | -30 ░C | 70 °C | CB CE cURus TUV | 2.83 " | 35 mm | 72 mm | 6.89 in | 1.38 in | 175 mm | Level VI | Cord (Sold Separately) | 20 V | 80 VAC | 264 VAC | Power DIN 4 Pin | 160 W | 150 mW | Desktop (Class II) | Medical | IEC 320-C8 | 1.2 m | 47.2 in | 8 A |
