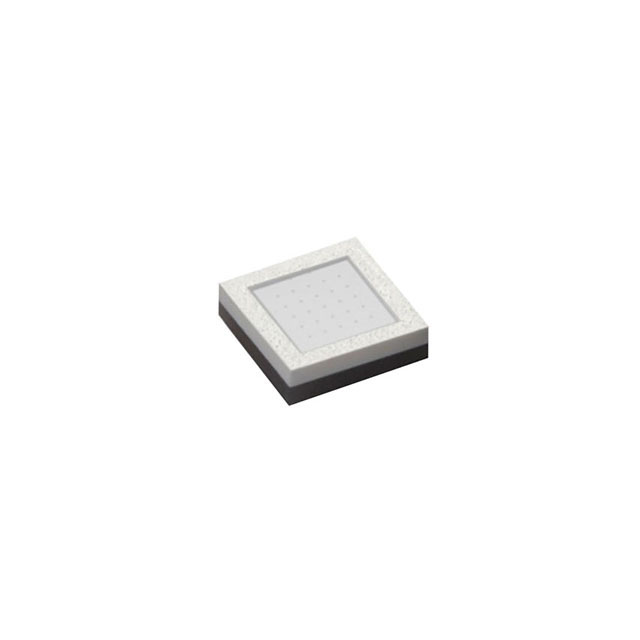

L1RX Series

Manufacturer: Lumileds

Catalog

LED LUXEON WARM WHT 3000K 1414

Part	CRI (Color Rendering Index)	Color	Mounting Type	Viewing Angle	Flux @ 85°C, Current - Test	Current - Test	Height - Seated (Max) [Max] [z]	Height - Seated (Max)	CCT (K)	Voltage - Forward (Vf) (Typ)	Lumens/Watt @ Current - Test	Current - Max [Max]	Supplier Device Package	Package / Case	Package / Case	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Luminous Flux @ Current/Temperature	Temperature - Test	Wavelength
Lumileds L1RX-3080000000000	80	Warm White	Surface Mount	125 °	245 lm	1 A	0.037 in	0.93 mm	3000 K	3.04 V	81 lm/W	1.6 A	1414	1313	0505	0.055 "	1.4 mm	0.055 in	1.4 mm
Lumileds L1RX-6570000000000	70	Cool White	Surface Mount	125 °	295 lm	1 A	0.037 in	0.93 mm	6500 K	3.04 V	97 lm/W	1.6 A	1414	1313	0505	0.055 "	1.4 mm	0.055 in	1.4 mm
Lumileds L1RX-6580000000000	80	Cool White	Surface Mount	125 °	295 lm	1 A	0.037 in	0.93 mm	6500 K	3.04 V	97 lm/W	1.6 A	1414	1313	0505	0.055 "	1.4 mm	0.055 in	1.4 mm
Lumileds L1RX-GRN1000000000		Green	Surface Mount	125 °		1.5 A	0.037 in	0.93 mm		3.8 V	50 lm/W	3 A	1414	1313	0505	0.055 "	1.4 mm	0.055 in	1.4 mm	285 lm	85 °C	528 nm
Lumileds L1RX-PCA1000000000		Amber	Surface Mount	125 °		1.5 A	0.037 in	0.93 mm		3.04 V	55 lm/W	3 A	1414	1313	0505	0.055 "	1.4 mm	0.055 in	1.4 mm	250 lm	85 °C
Lumileds L1RX-CYN1000000000		Cyan	Surface Mount	125 °		1.5 A	0.037 in	0.93 mm		3.64 V	42 lm/W	3 A	1414	1313	0505	0.055 "	1.4 mm	0.055 in	1.4 mm	230 lm	85 °C	500 nm
Lumileds L1RX-LME1000000000		Lime	Surface Mount	125 °		1.5 A	0.037 in	0.93 mm		3.09 V	110 lm/W	3 A	1414	1313	0505	0.055 "	1.4 mm	0.055 in	1.4 mm	510 lm	85 °C
Lumileds L1RX-2280000000000	80	Warm White	Surface Mount	125 °	190 lm	1 A	0.037 in	0.93 mm	2200 K	3.04 V	63 lm/W	1.6 A	1414	1313	0505	0.055 "	1.4 mm	0.055 in	1.4 mm
Lumileds L1RX-RED1000000000		Red	Surface Mount	125 °		1.5 A	0.037 in	0.93 mm		2.3 V	23 lm/W	2.2 A	1414	1313	0505	0.055 "	1.4 mm	0.055 in	1.4 mm	80 lm	85 °C	625 nm
Lumileds L1RX-2790000000000	90	Warm White	Surface Mount	125 °	185 lm	1 A	0.037 in	0.93 mm	2700 K	3.04 V	61 lm/W	1.6 A	1414	1313	0505	0.055 "	1.4 mm	0.055 in	1.4 mm
