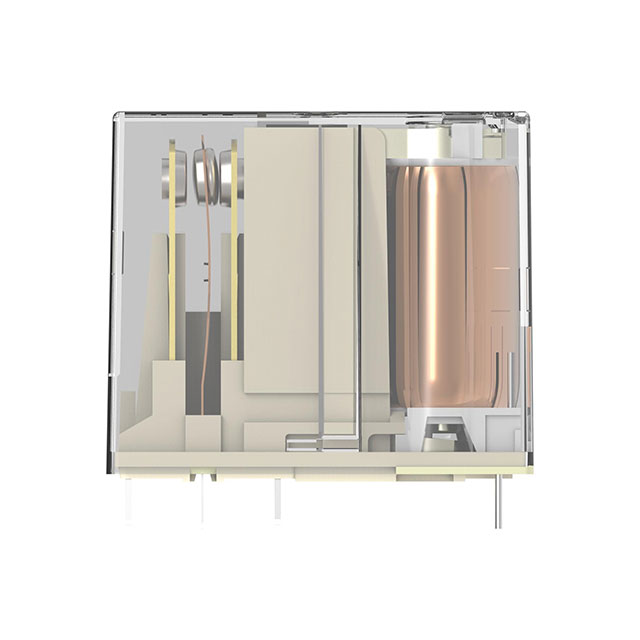

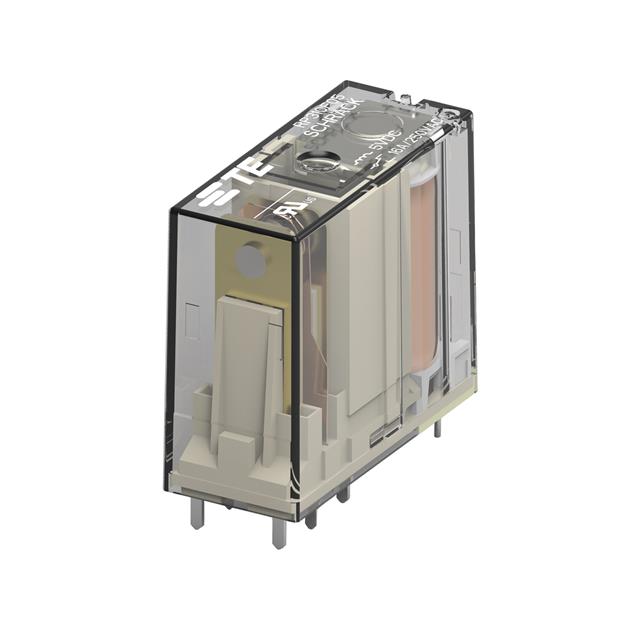

RP310F Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K
RELAY GEN PURP
| Part | Relay Type | Must Operate Voltage | Switching Voltage [Max] | Release Time | Contact Rating (Current) | Coil Type | Load - Max Switching | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Type | Termination Style | Operate Time | Coil Voltage | Contact Form | Contact Material | Approval Agency | Coil Resistance | Coil Current | Seal Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | General Purpose | 3.7 VDC | 400 VAC | 2 ms | 16 A | Dual Coil Latching | 6400 VA | 70 °C | -40 C | Through Hole | PC Pin | 8 ms | 5 VDC | SPDT (1 Form C) | Silver Cadmium Oxide (AgCdO) | cURus VDE | |||
 TE Connectivity AMP Connectors | General Purpose | 9 VDC | 400 VAC | 2 ms | 16 A | Non Latching | 6400 VA | 70 °C | -40 C | Through Hole | PC Pin | 8 ms | 12 VDC | SPDT (1 Form C) | Silver Cadmium Oxide (AgCdO) | 105 Ohms | 114.3 mA | ||
 TE Connectivity AMP Connectors | General Purpose | 400 VAC | 2 ms | 16 A | Dual Coil Latching | 6400 VA | 70 °C | -40 C | Through Hole | PC Pin | 8 ms | 24 VDC | SPDT (1 Form C) | Silver Cadmium Oxide (AgCdO) | cURus VDE | Sealed - Flux Protection |
