59K151 Series
Manufacturer: Rosenberger
Beta
⌘K

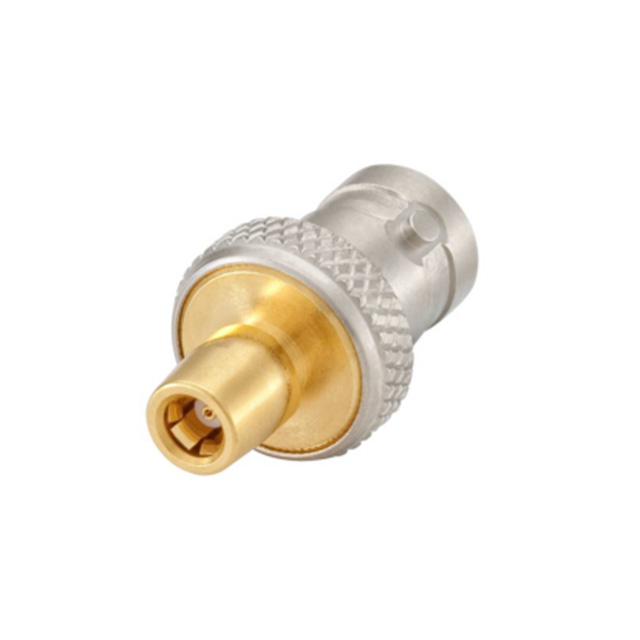

CONN ADAPT SMB JACK TO BNC JACK
| Part | Dielectric Material | Operating Temperature [Max] | Operating Temperature [Min] | Body Finish | Center Contact Material | Body Material | Mating Cycles | Fastening Type | Frequency - Max [Max] | Style | Center Gender | Conversion Type | Convert To (Adapter End) | Adapter Type | Center Contact Plating | Mounting Type | Convert From (Adapter End) | Impedance |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Rosenberger | Polytetrafluoroethylene (PTFE) | 155 C | -55 C | Gold Nickel | Beryllium Copper | Beryllium Copper Brass | 500 | Bayonet Lock Snap-On | 4 GHz | Straight | Female to Female | Between Series | BNC Jack Female Socket | Jack to Jack | Gold | Free Hanging (In-Line) | SMB Jack Female Socket | 50 Ohms |
