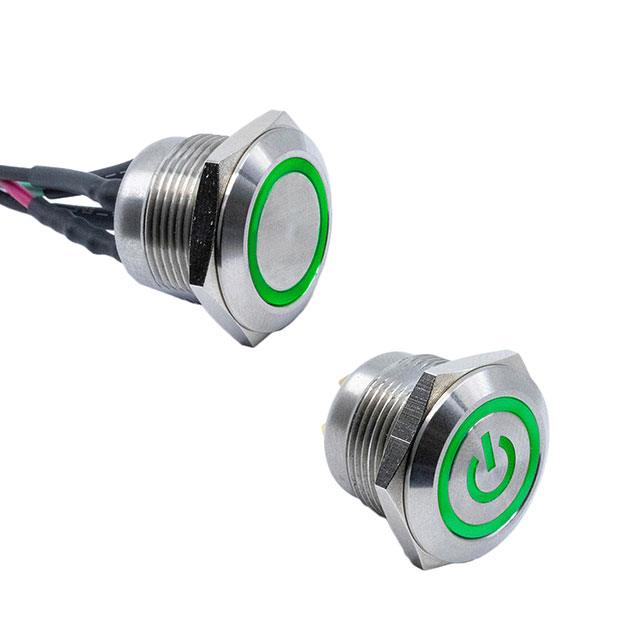

SV4F23 Series
Manufacturer: E-Switch
Beta
⌘K
SWITCH PB SPST-NO 2A 36V
| Part | Electrical Life | Operating Temperature [Min] | Operating Temperature [Max] | Actuator Type | Termination Style | Current Rating (Amps) | Actuator Marking | Type | Ingress Protection | Illumination Voltage (Nominal) | Illumination Type, Color | Color - Actuator/Cap | Circuit | Voltage Rating - DC | Switch Function | Mounting Type | Panel Cutout Dimensions [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 E-Switch | 200000 Cycles | -20 ░C | 70 °C | Button Flush Round | Solder Quick Connect - 0.110" (2.8mm) | 2 A | Power Symbol | Anti-Vandal Illuminated | IP67 - Dust Tight Waterproof | 2 VDC 3.1 VDC | Green/Red LED | Silver | SPST-NO | 36 VDC | Off-Mom | Panel Mount Front | 19 mm |
 E-Switch | 200000 Cycles | -20 ░C | 70 °C | Button Flush Round | Solder Quick Connect - 0.110" (2.8mm) | 2 A | No Marking | Anti-Vandal Illuminated | IP67 - Dust Tight Waterproof | 3.1 VDC | LED White | Silver | SPST-NO | 36 VDC | Off-Mom | Panel Mount Front | 19 mm |
