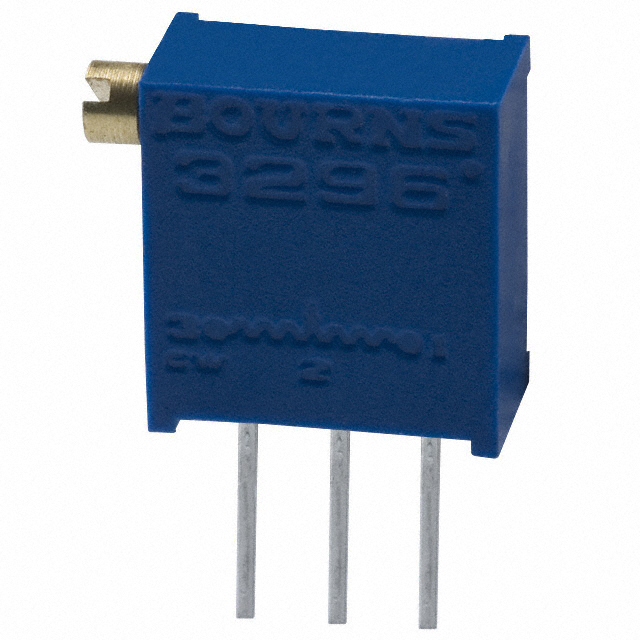

3296X Series

Catalog

RES,CERMET,1KOHMS,300WVDC,10+/-% TOL,-100,100PPM-TC,3825-CASE ROHS COMPLIANT: NO

Part	Temperature Coefficient	Resistive Material	Resistance	Tolerance	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Number of Turns	Termination Style	Power (Watts)	Power (Watts)	Mounting Type	Adjustment Type
Bourns Inc. 3296X-1-102A	100 ppm/°C	Cermet	1000 Ohms	10 %	10.03 mm	4.83 mm	0.395 "	0.19 in	25	PC Pins	0.5 W	0.5 W	Through Hole	Side Adjustment
Bourns Inc. 3296X-1-505	100 ppm/°C	Cermet	5000000 Ohms	10 %	10.03 mm	4.83 mm	0.395 "	0.19 in	25	PC Pins	0.5 W	0.5 W	Through Hole	Side Adjustment
Bourns Inc. 3296X-1-503ALF	100 ppm/°C	Cermet	50000 Ohms	10 %	10.03 mm	4.83 mm	0.395 "	0.19 in	25	PC Pins	0.5 W	0.5 W	Through Hole	Side Adjustment
Bourns Inc. 3296X-1-504RLF	100 ppm/°C	Cermet		10 %	10.03 mm	4.83 mm	0.395 "	0.19 in	25	PC Pins	0.5 W	0.5 W	Through Hole	Side Adjustment
Bourns Inc. 3296X-1-225LF	100 ppm/°C	Cermet	2.2 MOhms	10 %	10.03 mm	4.83 mm	0.395 "	0.19 in	25	PC Pins	0.5 W	0.5 W	Through Hole	Side Adjustment
Bourns Inc. 3296X-1-101	100 ppm/°C	Cermet	100 Ohms	10 %	10.03 mm	4.83 mm	0.395 "	0.19 in	25	PC Pins	0.5 W	0.5 W	Through Hole	Side Adjustment
Bourns Inc. 3296X-1-203ALF	100 ppm/°C	Cermet	20 kOhms	10 %	10.03 mm	4.83 mm	0.395 "	0.19 in	25	PC Pins	0.5 W	0.5 W	Through Hole	Side Adjustment
Bourns Inc. 3296X-1-100LF	100 ppm/°C	Cermet	10 Ohms	10 %	10.03 mm	4.83 mm	0.395 "	0.19 in	25	PC Pins	0.5 W	0.5 W	Through Hole	Side Adjustment
Bourns Inc. 3296X-1-471LF	100 ppm/°C	Cermet	470 Ohms	10 %	10.03 mm	4.83 mm	0.395 "	0.19 in	25	PC Pins	0.5 W	0.5 W	Through Hole	Side Adjustment
Bourns Inc. 3296X-1-101LF	100 ppm/°C	Cermet	100 Ohms	10 %	10.03 mm	4.83 mm	0.395 "	0.19 in	25	PC Pins	0.5 W	0.5 W	Through Hole	Side Adjustment
