2358992 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

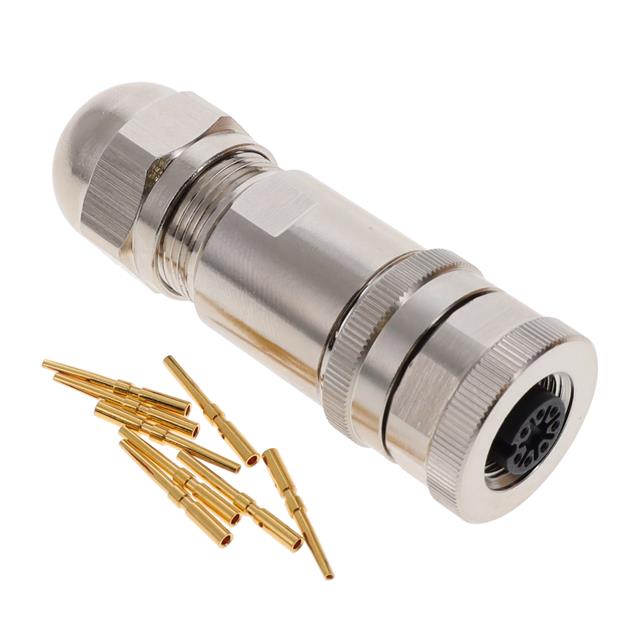

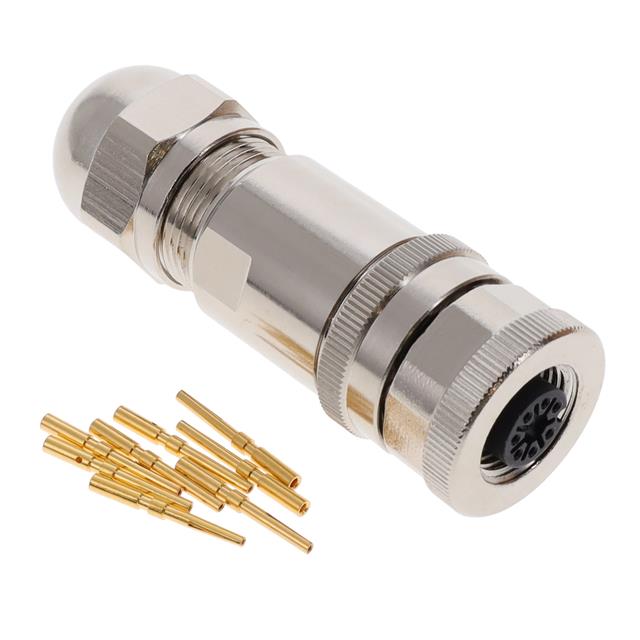

M12 FEMALE, A8,STR CONNECTOR, PG7 SEAL
| Part | Insert Material | Shielding | Connector Type | Number of Positions | Mounting Type | Housing Color | Operating Temperature [Max] | Operating Temperature [Min] | Primary Material | Contact Shape | Features | Shell Size - Insert | Orientation | Note | Material Flammability Rating | Shell Material | Shell Finish | Type | Ingress Protection | Contact Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | Nylon Polyamide (PA) | Shielded | Receptacle Housing | 8 | Free Hanging (In-Line) | Silver | 85 °C | -40 °C | Metal | Circular | Backshell Coupling Nut Railway (EN45545 IEC61373) | M12-8 | D | Contacts Not Included | UL94 V-0 | Brass | Nickel | For Female Sockets | IP67 - Dust Tight Waterproof | Crimp |
TE Connectivity Raychem Cable Protection | Nylon Polyamide (PA) | Shielded | Receptacle Housing | 8 | Free Hanging (In-Line) | Silver | 85 °C | -40 °C | Metal | Circular | Backshell Coupling Nut Railway (EN45545 IEC61373) | M12-8 | D | Contacts Not Included | UL94 V-0 | Brass | Nickel | For Female Sockets | IP67 - Dust Tight Waterproof | Crimp |
 TE Connectivity Raychem Cable Protection | Nylon Polyamide (PA) | Shielded | Receptacle Housing | 8 | Free Hanging (In-Line) | Silver | 85 °C | -40 °C | Metal | Circular | Backshell Coupling Nut Railway (EN45545 IEC61373) | M12-8 | D | Contacts Not Included | UL94 V-0 | Brass | Nickel | For Female Sockets | IP67 - Dust Tight Waterproof | Crimp |
 TE Connectivity Raychem Cable Protection | Nylon Polyamide (PA) | Shielded | Receptacle Housing | 8 | Free Hanging (In-Line) | Silver | 85 °C | -40 °C | Metal | Circular | Backshell Coupling Nut Railway (EN45545 IEC61373) | M12-8 | D | Contacts Not Included | UL94 V-0 | Brass | Nickel | For Female Sockets | IP67 - Dust Tight Waterproof | Crimp |
