77315 Series

Catalog

CONN HEADER R/A 25POS 2.54MM

...

Part	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Insulation Color	Contact Finish - Post	Termination	Contact Material	Current Rating (Amps)	Pitch - Mating	Pitch - Mating	Number of Positions Loaded	Contact Length - Mating	Contact Length - Mating	Insulation Height	Insulation Height	Insulation Material	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Material Flammability Rating	Contact Finish - Mating	Operating Temperature [Max]	Operating Temperature [Min]	Fastening Type	Contact Type	Connector Type	Contact Length - Post	Contact Length - Post	Contact Shape	Number of Rows	Mounting Type	Shrouding	Number of Positions	Contact Length - Post [x]	Contact Length - Post [x]	Contact Length - Mating [x]	Contact Length - Mating [x]
Amphenol ICC (FCI) 77315-103-25LF	2 çm	78.7 çin	Black	Tin	Solder	Phosphor Bronze	3 A	0.1 in	2.54 mm	All	0.225 in	5.72 mm	0.094 in	2.4 mm	Thermoplastic	30 Áin	0.76 Ám	UL94 V-0	Gold or Gold GXT™	125 °C	-65 ░C	Push-Pull	Male Pin	Breakaway Header	7.65 mm	0.301 in	Square	1	Through Hole Right Angle	Unshrouded

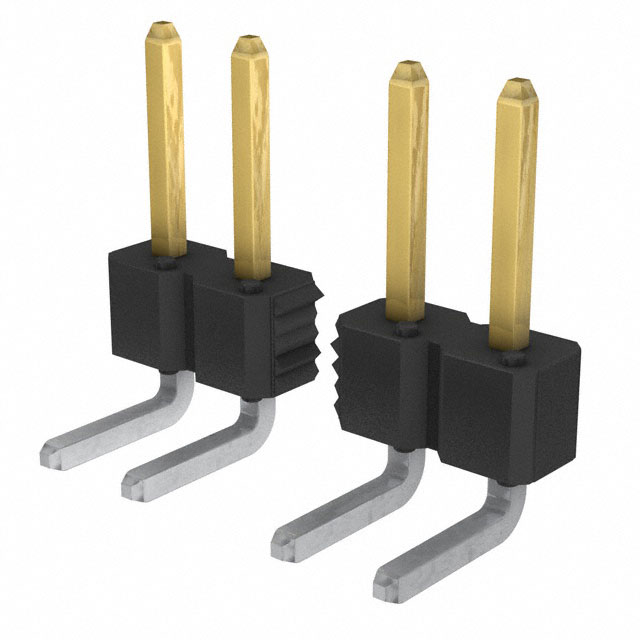

Amphenol ICC (FCI) 77315-101-31LF	2 çm	78.7 çin	Black	Tin	Solder	Phosphor Bronze	3 A	0.1 in	2.54 mm	All	0.225 in	5.72 mm	0.094 in	2.4 mm	Thermoplastic	30 Áin	0.76 Ám	UL94 V-0	Gold or Gold GXT™	125 °C	-65 ░C	Push-Pull	Male Pin	Breakaway Header	2.57 mm	0.101 in	Square	1	Through Hole Right Angle	Unshrouded	31
Amphenol ICC (FCI) 77315-418-20LF	2 çm	78.7 çin	Black	Tin	Solder	Phosphor Bronze	3 A	0.1 in	2.54 mm	All		5.84 mm	0.094 in	2.4 mm	Thermoplastic	78.7 µin	2 µm	UL94 V-0		125 °C	-65 ░C	Push-Pull	Male Pin	Breakaway Header			Square	1	Through Hole Right Angle	Unshrouded	20	0.12 in	3.05 mm	0.23 in
Amphenol ICC (FCI) 77315-818-21	3.81 Ám	150 Áin	Black	Tin-Lead	Solder	Phosphor Bronze		0.1 in	2.54 mm	All		5.84 mm	0.094 in	2.4 mm	Thermoplastic	15 µin	0.38 µm	UL94 V-0	Gold or Gold GXT™			Push-Pull	Male Pin	Breakaway Header			Square	1	Through Hole Right Angle	Unshrouded	21	0.12 in	3.05 mm	0.23 in
Amphenol ICC (FCI) 77315-201-04LF			Black		Solder	Phosphor Bronze		0.1 in	2.54 mm	All	0.225 in	5.72 mm	0.094 in	2.4 mm	Thermoplastic			UL94 V-0				Push-Pull	Male Pin	Header	2.57 mm	0.101 in	Square	1	Through Hole Right Angle	Unshrouded	4
Amphenol ICC (FCI) 77315-101-08LF	2 çm	78.7 çin	Black	Tin	Solder	Phosphor Bronze	3 A	0.1 in	2.54 mm	All	0.225 in	5.72 mm	0.094 in	2.4 mm	Thermoplastic	30 Áin	0.76 Ám	UL94 V-0	Gold or Gold GXT™	125 °C	-65 ░C	Push-Pull	Male Pin	Breakaway Header	2.57 mm	0.101 in	Square	1	Through Hole Right Angle	Unshrouded	8

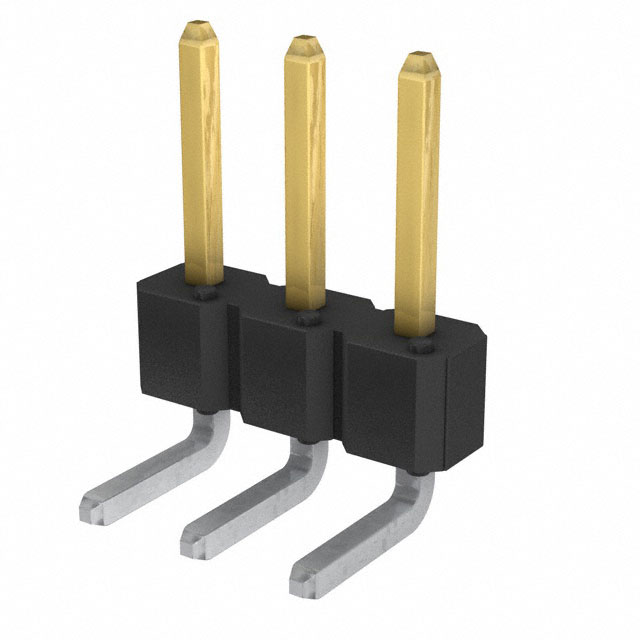

Amphenol ICC (FCI) 77315-818-03LF	2 çm	78.7 çin	Black	Tin	Solder	Phosphor Bronze	3 A	0.1 in	2.54 mm	All		5.84 mm	0.094 in	2.4 mm	Thermoplastic	15 µin	0.38 µm	UL94 V-0	Gold or Gold GXT™	125 °C	-65 ░C	Push-Pull	Male Pin	Breakaway Header			Square	1	Through Hole Right Angle	Unshrouded		0.12 in	3.05 mm	0.23 in
Amphenol ICC (FCI) 77315-818-28LF	2 çm	78.7 çin	Black	Tin	Solder	Phosphor Bronze	3 A	0.1 in	2.54 mm	All		5.84 mm	0.094 in	2.4 mm	Thermoplastic	15 µin	0.38 µm	UL94 V-0	Gold or Gold GXT™	125 °C	-65 ░C	Push-Pull	Male Pin	Breakaway Header			Square	1	Through Hole Right Angle	Unshrouded	28	0.12 in	3.05 mm	0.23 in
Amphenol ICC (FCI) 77315-428-04LF	2 çm	78.7 çin	Black	Tin	Solder	Phosphor Bronze	3 A	0.1 in	2.54 mm	All			0.094 in	2.4 mm	Thermoplastic	78.7 µin	2 µm	UL94 V-0		125 °C	-65 ░C	Push-Pull	Male Pin	Breakaway Header	3.1 mm	0.122 "	Square	1	Through Hole Right Angle	Unshrouded	4			0.122 in	3.1 mm

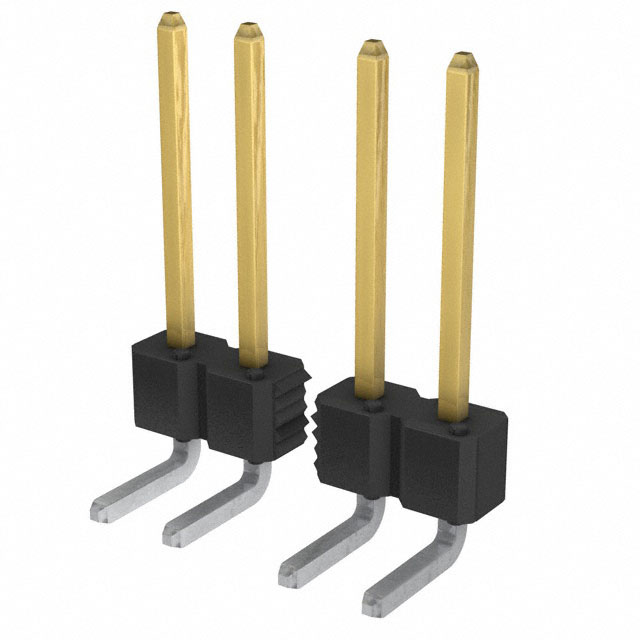

Amphenol ICC (FCI) 77315-133-36LF	2 çm	78.7 çin	Black	Tin	Solder	Phosphor Bronze	3 A	0.1 in	2.54 mm	All	0.402 in	10.2 mm	0.094 in	2.4 mm	Thermoplastic	30 Áin	0.76 Ám	UL94 V-0	Gold or Gold GXT™	125 °C	-65 ░C	Push-Pull	Male Pin	Breakaway Header			Square	1	Through Hole Right Angle	Unshrouded	36	0.12 in	3.05 mm
