78092 Series

Catalog

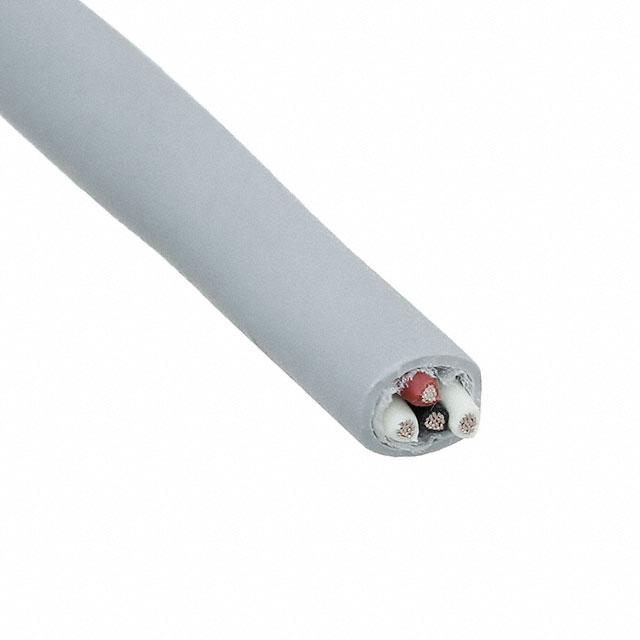

MULTI-PAIR 4COND 20AWG

Part	Conductor Material	Conductor Insulation	Jacket Color	Operating Temperature [Max]	Operating Temperature [Min]	Number of Conductors	Cable Type	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Length	Length	Ratings	Features	Wire Gauge	Voltage	Conductor Strand [custom]	Conductor Strand [custom]	Jacket (Insulation) Material	Jacket (Insulation) Thickness [x]	Jacket (Insulation) Thickness [x]	Length [x]	Length [x]
ALPHA WIRE 78092 SL001	Copper Tinned	Polyphenylene Ether Modified (mPPE)	Slate	80 °C	-40 C	4	Multi-Pair	0.211 in	5.36 mm	304.8 m	1000 ft	ISO 10993 UL Style 21460	Biological Compatibility Rip Cord	20 AWG	300 VDC	19	32 AWG	Polyphenylene Ether Modified (mPPE)	0.381 mm	0.015 in
ALPHA WIRE 78092 SL005	Copper Tinned	Polyphenylene Ether Modified (mPPE)	Slate	80 °C	-40 C	4	Multi-Pair	0.211 in	5.36 mm			ISO 10993 UL Style 21460	Biological Compatibility Rip Cord	20 AWG	300 VDC	19	32 AWG	Polyphenylene Ether Modified (mPPE)	0.381 mm	0.015 in	100 ft	30.5 m
