640504 Series
Manufacturer: TE Connectivity AMP Connectors
Coming soon—Zenode’s new Cross Ref’s tool! RSVP for the webinar here to get early access
Beta
⌘K

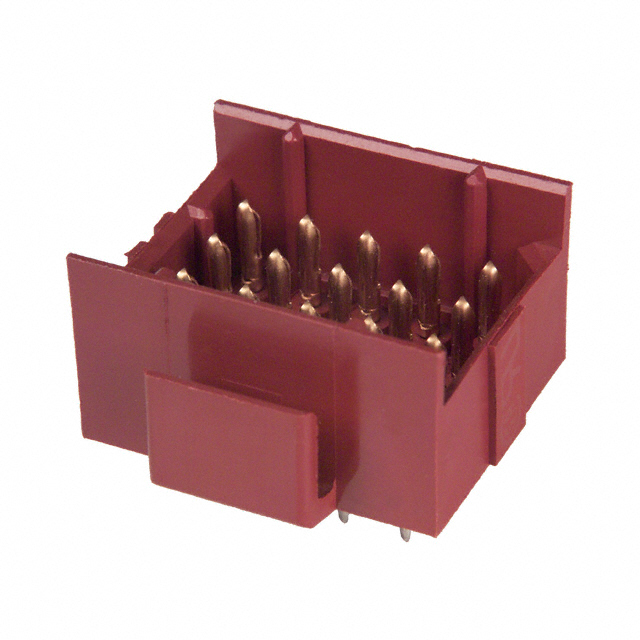

PLUG & SOCKET CONN, HEADER, 20POS, 4.2MM
| Part | Shrouding | Contact Finish - Post | Number of Rows | Pitch - Mating | Row Spacing - Mating | Mounting Type | Contact Length - Post | Number of Positions | Contact Finish Thickness - Mating | Current Rating | Style | Termination | Operating Temperature (Min) | Operating Temperature (Max) | Contact Type | Contact Finish - Mating | Contact Length - Mating | Number of Positions Loaded | Fastening Type | Insulation Material | Connector Type | Insulation Color | Material Flammability Rating | Insulation Height | Contact Shape | Voltage Rating | Contact Material | Applications | Contact Finish Thickness - Post |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | Shrouded - 4 Wall | Tin-Lead | 4 | 0.165 in | 0.165 in | Through Hole | 0.21 in | 20 | 30 µin | 6 A | Board Cable/Wire | Solder | -55 °C | 105 °C | Male Pin | Gold | 0.22 in | All | Latch Lock | Nylon Polyamide (PA) | Header | Black Red | UL94 V-0 | 0.531 in | Circular | 250 V | Phosphor Bronze | General Purpose | 150 µin |
TE Connectivity AMP Connectors | Shrouded - 4 Wall | Tin-Lead | 4 | 0.165 in | 0.165 in | Through Hole | 0.15 in | 20 | 30 µin | 6 A | Board Cable/Wire | Solder | -55 °C | 105 °C | Male Pin | Gold | 0.22 in | All | Latch Lock | Nylon Polyamide (PA) | Header | Black Red | UL94 V-0 | 0.531 in | Circular | 250 V | Phosphor Bronze | General Purpose | 150 µin |
