A21CSQ Series
Manufacturer: CIT Relay and Switch
Beta
⌘K
RELAY AUTOMOTIVE SPDT 40A 12V
| Part | Coil Power | Contact Material | Coil Resistance | Contact Form | Mounting Type | Coil Voltage | Coil Current | Must Release Voltage | Operate Time | Features | Termination Style | Contact Rating (Current) | Switching Voltage [Max] | Operating Temperature [Max] | Operating Temperature [Min] | Must Operate Voltage | Coil Type | Release Time |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

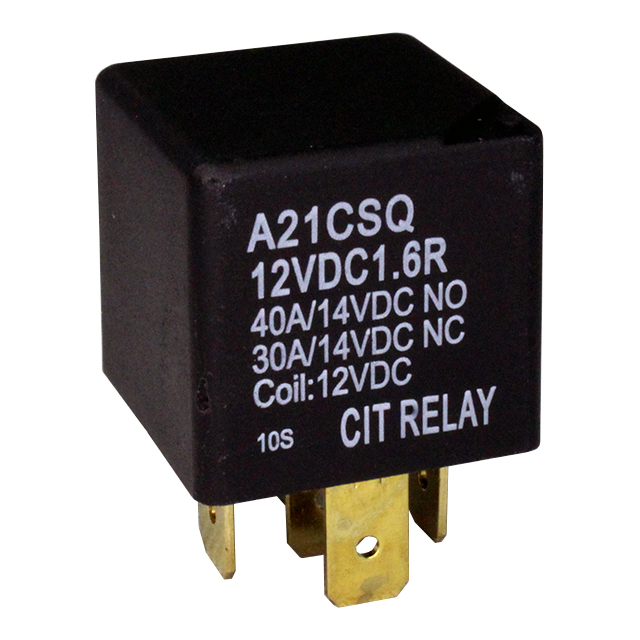

 CIT Relay and Switch | 1.6 W | Silver Tin Oxide (AgSnO) | 90 Ohms | SPDT (1 Form C) | Socketable | 12 VDC | 133.3 mA | 1.2 VDC | 7 ms | Resistor Sealed - Fully | Plug In Quick Connect - 0.250" (6.3mm) | 40 A | 75 VDC | 125 °C | -40 C | 8.4 VDC | Non Latching | 5 ms |

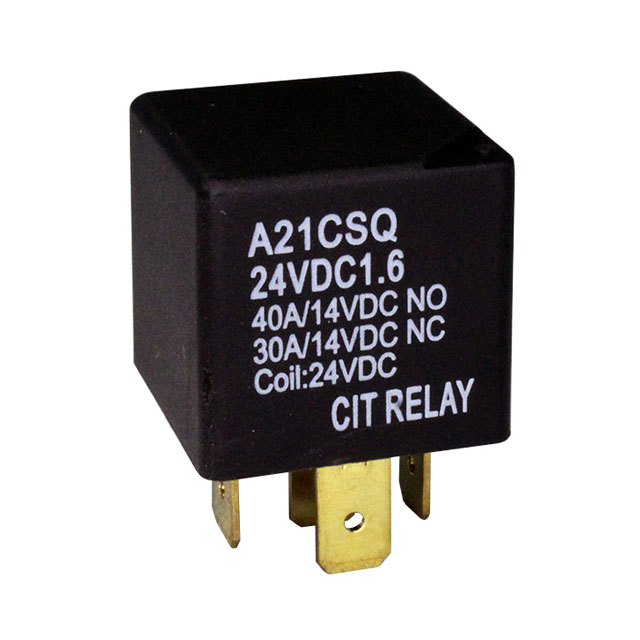

 CIT Relay and Switch | 1.6 W | Silver Tin Oxide (AgSnO) | 360 Ohms | SPDT (1 Form C) | Socketable | 24 VDC | 66.7 mA | 2.4 VDC | 7 ms | Sealed - Fully | Plug In Quick Connect - 0.250" (6.3mm) | 40 A | 75 VDC | 125 °C | -40 C | 16.8 VDC | Non Latching | 5 ms |

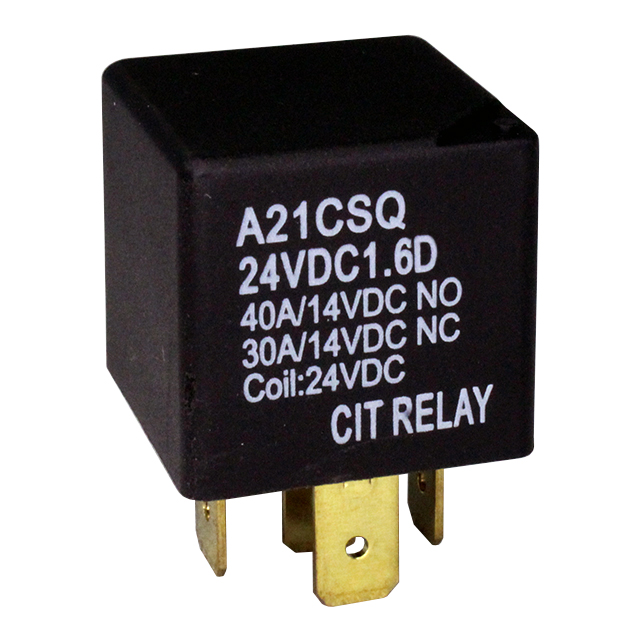

 CIT Relay and Switch | 1.6 W | Silver Tin Oxide (AgSnO) | 360 Ohms | SPDT (1 Form C) | Socketable | 24 VDC | 66.7 mA | 2.4 VDC | 7 ms | Diode Sealed - Fully | Plug In Quick Connect - 0.250" (6.3mm) | 40 A | 75 VDC | 125 °C | -40 C | 16.8 VDC | Non Latching | 5 ms |

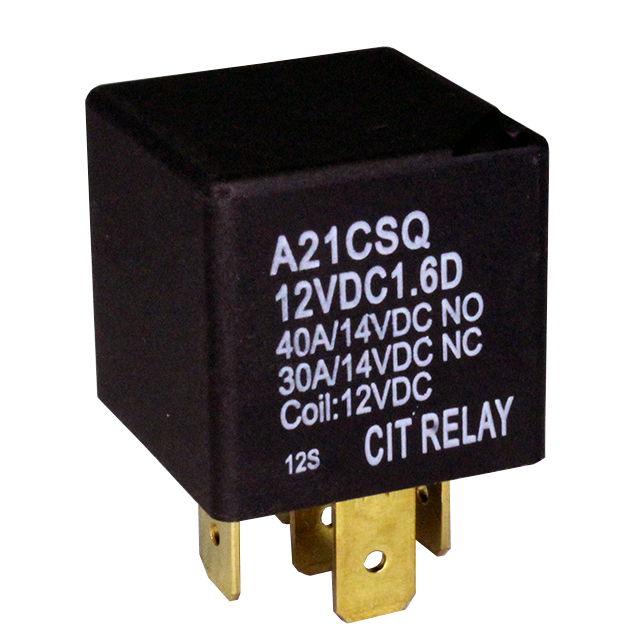

 CIT Relay and Switch | 1.6 W | Silver Tin Oxide (AgSnO) | 90 Ohms | SPDT (1 Form C) | Socketable | 12 VDC | 133.3 mA | 1.2 VDC | 7 ms | Diode Sealed - Fully | Plug In Quick Connect - 0.250" (6.3mm) | 40 A | 75 VDC | 125 °C | -40 C | 8.4 VDC | Non Latching | 5 ms |
