87 Series

Catalog

AC POWER ENTRY MODULES 4751 CONNECTOR DISTRIBUTION 10A F

Part	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Current Rating - Appliance Inlet	Mounting Type	Connector Style	Connector Type	Ingress Protection	Number of Positions	Number of Positions	Approval Agency	Material Flammability Rating	Features	Filter Type	Voltage Rating - Appliance Inlet	Termination	Termination	Termination	Panel Thickness	Panel Thickness

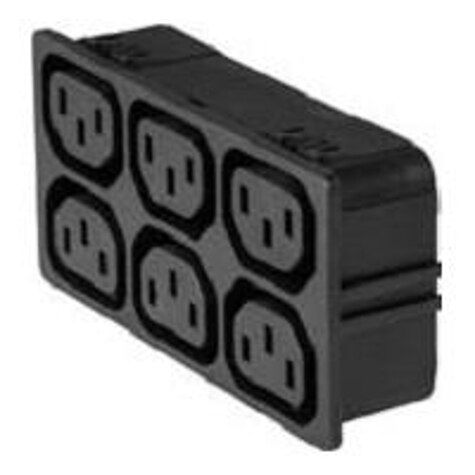

SCHURTER Inc. 3-103-872	97.2 mm	48.9 mm	10 A	Panel Mount Snap-In	IEC 320-2-2/F	Receptacle Female Sockets	IP20	6	3	CCC cURus ENEC	UL94 V-0	Terminating Cover	Unfiltered - Commercial	250 VAC	6.3 mm	Quick Connect	0.25 "	1.5 mm	0.059 in
SCHURTER Inc. 3-103-839	64.75 mm	48.9 mm	10 A	Panel Mount Snap-In	IEC 320-2-2/F	Receptacle Female Sockets	IP20		3	CCC cURus ENEC	UL94 V-0	Terminating Cover	Unfiltered - Commercial	250 VAC	6.3 mm	Quick Connect	0.25 "	1.5 mm	0.059 in
SCHURTER Inc. 3-103-838	49 mm	32.45 mm	10 A	Panel Mount Snap-In	IEC 320-2-2/F	Receptacle Female Sockets	IP20		3	CCC cURus ENEC	UL94 V-0	Terminating Cover	Unfiltered - Commercial	250 VAC	6.3 mm	Quick Connect	0.25 "	1.5 mm	0.059 in
SCHURTER Inc. 3-103-835	49 mm	32.45 mm	10 A	Panel Mount Snap-In	IEC 320-2-2/F	Receptacle Female Sockets	IP20		3	CCC cURus ENEC	UL94 V-0	Terminating Cover	Unfiltered - Commercial	250 VAC	6.3 mm	Quick Connect	0.25 "	1.5 mm	0.059 in
SCHURTER Inc. 3-103-841	64.75 mm	48.9 mm	10 A	Panel Mount Snap-In	IEC 320-2-2/F	Receptacle Female Sockets	IP20		3	CCC cURus ENEC	UL94 V-0	Terminating Cover	Unfiltered - Commercial	250 VAC	6.3 mm	Quick Connect	0.25 "	1.5 mm	0.059 in
