SRR0604 Series

Catalog

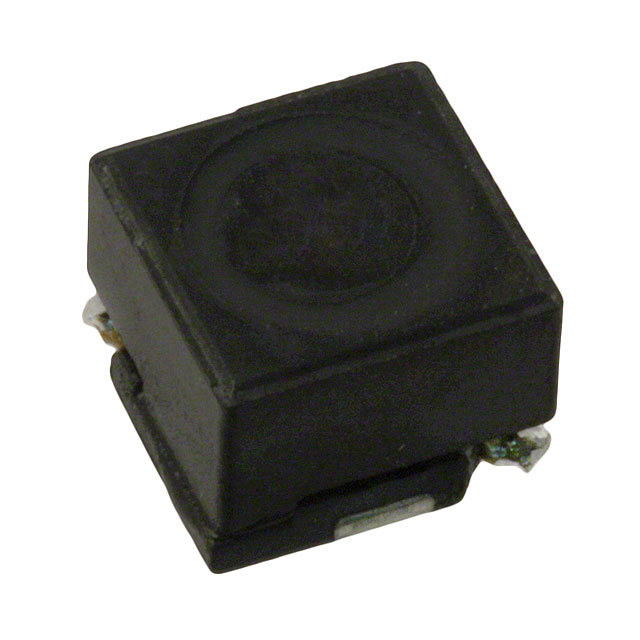

MAGNETICS-SHIELDED POWER INDUCTOR /TAPE & REEL - 13" REEL ROHS COMPLIANT: YES

Part	Inductance Frequency - Test	Mounting Type	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Shielding	Package / Case	Inductance	Operating Temperature [Max]	Operating Temperature [Min]	Type	Material - Core	Height - Seated (Max) [Max]	Height - Seated (Max)	Q @ Freq [custom]	Q @ Freq [custom]	Frequency - Self Resonant	DC Resistance (DCR) [Max]	Tolerance	Current - Saturation (Isat)	Current Rating (Amps)	Q @ Freq
Bourns Inc. SRR0604-470YL	1 kHz	Surface Mount	0.256 in	6.5 mm	6.5 mm	0.256 "	Shielded	Nonstandard Corner Terminals	47 µH	125 °C	-40 C	Drum Core Wirewound	Ferrite	0.189 "	4.8 mm
Bourns Inc. SRR0604-151KL	1 kHz	Surface Mount	0.256 in	6.5 mm	6.5 mm	0.256 "	Shielded	Nonstandard Corner Terminals	150 µH	125 °C	-40 C	Drum Core Wirewound	Ferrite	0.189 "	4.8 mm	796 kHz	21	12 MHz	1 Ohm	10 %	470 mA	0.3 A
Bourns Inc. SRR0604-470KL	1 kHz	Surface Mount	0.256 in	6.5 mm	6.5 mm	0.256 "	Shielded	Nonstandard Corner Terminals	47 µH	125 °C	-40 C	Drum Core Wirewound	Ferrite	0.189 "	4.8 mm			18 MHz	360 mOhm	10 %	800 mA	600 mA	2.52 MHz 15
Bourns Inc. SRR0604-471KL	1 kHz	Surface Mount	0.256 in	6.5 mm	6.5 mm	0.256 "	Shielded	Nonstandard Corner Terminals	470 µH	125 °C	-40 C	Drum Core Wirewound	Ferrite	0.189 "	4.8 mm			6.5 MHz	3.3 Ohm	10 %	220 mA	0.18 A	18 796 kHz
Bourns Inc. SRR0604-222KL	1 kHz	Surface Mount	0.256 in	6.5 mm	6.5 mm	0.256 "	Shielded	Nonstandard Corner Terminals	2.2 mH	125 °C	-40 C	Drum Core Wirewound	Ferrite	0.189 "	4.8 mm			650 kHz	16 Ohm	10 %	80 mA	100 mA	80 252 kHz
Bourns Inc. SRR0604-4R7ML	1 kHz	Surface Mount	0.256 in	6.5 mm	6.5 mm	0.256 "	Shielded	Nonstandard Corner Terminals	4.7 ÁH	125 °C	-40 C	Drum Core Wirewound	Ferrite	0.189 "	4.8 mm			50 MHz		20 %	2.55 A	2 A	7.96 MHz 10
Bourns Inc. SRR0604-331KL	1 kHz	Surface Mount	0.256 in	6.5 mm	6.5 mm	0.256 "	Shielded	Nonstandard Corner Terminals	330 µH	125 °C	-40 C	Drum Core Wirewound	Ferrite	0.189 "	4.8 mm			7 MHz	2.1 Ohm	10 %	280 mA	0.2 A	18 796 kHz
Bourns Inc. SRR0604-2R5ML	1 kHz	Surface Mount	0.256 in	6.5 mm	6.5 mm	0.256 "	Shielded	Nonstandard Corner Terminals	2.5 µH	125 °C	-40 C	Drum Core Wirewound	Ferrite	0.189 "	4.8 mm			100 MHz	35 mOhm	20 %	3.5 A	2.5 A	7.96 MHz 21
Bourns Inc. SRR0604-221KL	1 kHz	Surface Mount	0.256 in	6.5 mm	6.5 mm	0.256 "	Shielded	Nonstandard Corner Terminals	220 µH	125 °C	-40 C	Drum Core Wirewound	Ferrite	0.189 "	4.8 mm	796 kHz	20	10 MHz	1.7 Ohm	10 %	320 mA	0.25 A
Bourns Inc. SRR0604-100ML	1 kHz	Surface Mount	0.256 in	6.5 mm	6.5 mm	0.256 "	Shielded	Nonstandard Corner Terminals	10 µH	125 °C	-40 C	Drum Core Wirewound	Ferrite	0.189 "	4.8 mm			30 MHz	120 mOhm	20 %	1.8 A	1.3 A	2.52 MHz 18
