MR4028 Series
Manufacturer: Mechatronics Fan Group
Beta
⌘K

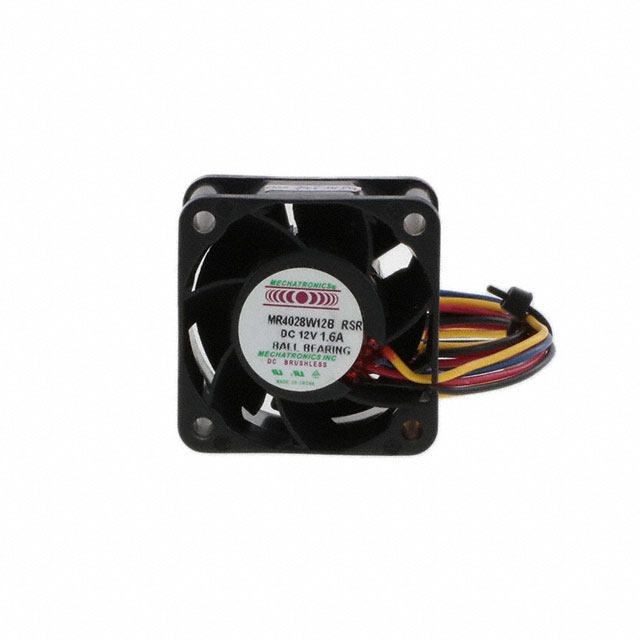

FAN AXIAL 40X28MM 12VDC WIRE
| Part | Lifetime @ Temp. | Voltage Range [Min] | Voltage Range [Max] | Material - Blade | Air Flow | Air Flow | Current Rating (Amps) | Fan Type | Width [x] | Size / Dimension [x] | Size / Dimension [z] | Voltage - Rated | Termination | Features | RPM | Bearing Type | Power (Watts) | Noise | Static Pressure | Static Pressure | Operating Temperature [Max] | Operating Temperature [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mechatronics Fan Group | 70000 Hrs | 8 V | 14 V | Polybutylene Terephthalate (PBT) | 0.913 m³/min | 32.6 CFM | 1.6 A | Tubeaxial | 28 mm | 40 mm | 40 mm | 12 VDC | 4 Wire Leads | Auto Restart PWM Control Speed Sensor (Tach) | 24000 RPM | Ball | 19.2 W | 65 dB | 909.2 Pa | 3.65 in H2O | 70 °C | -10 °C |
