G12JH Series

Catalog

ULTRA-MINIATURE FULLY ILLUMINATED TOGGLE

Part	Electrical Life	Actuator Material	Actuator Type	Features	Illumination	Illumination Type, Color	Operating Temperature [Max]	Operating Temperature [Min]	Circuit	Current Rating (Amps)	Mounting Type	Bushing Thread	Voltage Rating - DC	Termination Style	Illumination Voltage (Nominal)	Actuator Length [x]	Switch Function	Voltage Rating - AC

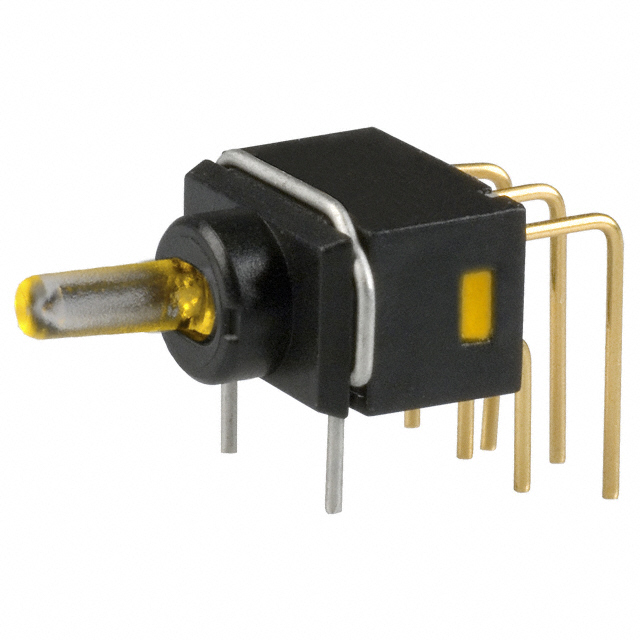

NKK Switches G12JHD	100000 Cycles	Glass Filled Nylon Polyamide (PA)	Standard Round	Process Sealed	Illuminated	Amber LED	85 °C	-25 °C	SPDT	0.4 VA	Right Angle Through Hole	Unthreaded	28 V	PC Pin	2 VDC	3.8 mm	On-On	28 V
NKK Switches G12JHF	100000 Cycles	Glass Filled Nylon Polyamide (PA)	Standard Round	Process Sealed	Illuminated	Green LED	85 °C	-25 °C	SPDT	0.4 VA	Right Angle Through Hole	Unthreaded	28 V	PC Pin	2.1 VDC	3.8 mm	On-On	28 V

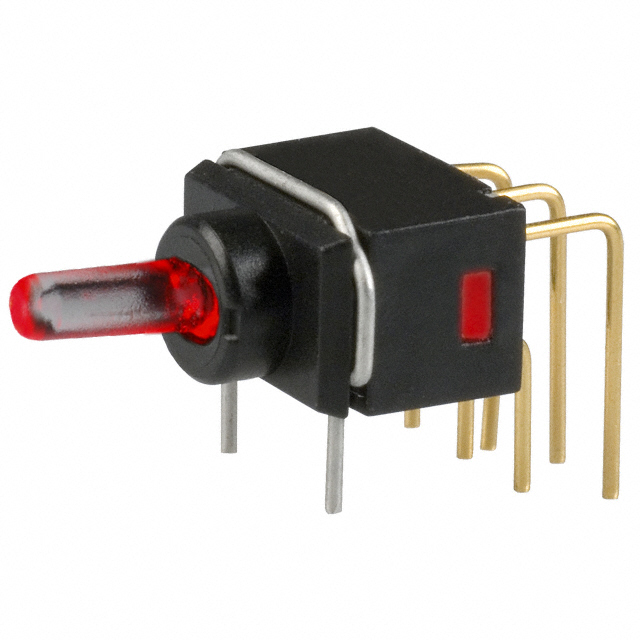

NKK Switches G12JHC	100000 Cycles	Glass Filled Nylon Polyamide (PA)	Standard Round	Process Sealed	Illuminated	LED Red	85 °C	-25 °C	SPDT	0.4 VA	Right Angle Through Hole	Unthreaded	28 V	PC Pin	2 VDC	3.8 mm	On-On	28 V

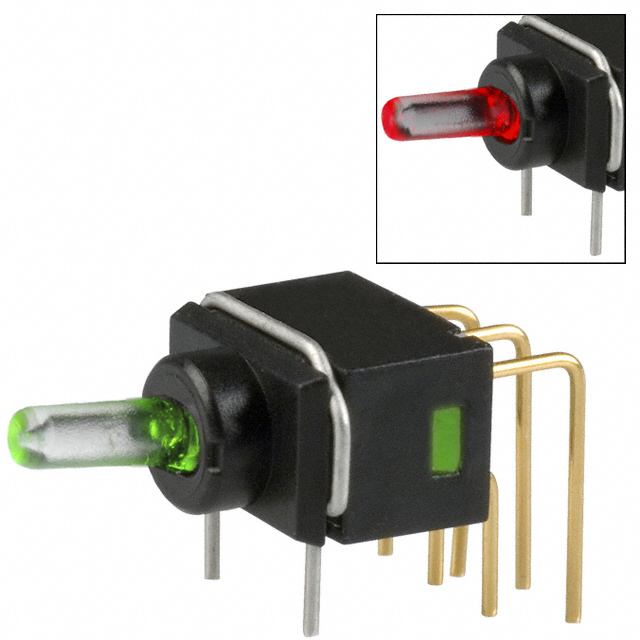

NKK Switches G12JHCF	100000 Cycles	Glass Filled Nylon Polyamide (PA)	Standard Round	Process Sealed	Illuminated	Green/Red LED	85 °C	-25 °C	SPDT	0.4 VA	Right Angle Through Hole	Unthreaded	28 V	PC Pin	2 VDC 2.1 VDC	3.8 mm	On-On	28 V
