82-4152 Series

Manufacturer: EAO

Catalog

82-4152.1154.ILLUMINATED PUSHBUTTON.MOMENTARY.16 MM.STAINLESS STEEL.FLUSH/FLAT.RING.WHITE.24 V.SCREW TERMINAL

Part	Mechanical Life	Electrical Life	Termination Style	Actuator Marking	Color - Actuator/Cap	Mounting Type	Current Rating (Amps)	Illumination Type, Color	Voltage Rating - DC	Illumination Voltage (Nominal)	Panel Cutout Dimensions [diameter]	Ingress Protection	Voltage Rating - AC	Type	Operating Temperature [Min]	Operating Temperature [Max]	Circuit	Switch Function	Actuator Type	Current	Lens Size [diameter]	Lens Color	Ratings	Lamp Color	Panel Cutout Dimensions [custom]	Panel Cutout Dimensions [custom]	Panel Cutout Shape	Lens Style	Voltage
EAO 82-4152.1154	1000000 Cycles	50000 Cycles	Screw Terminal	No Marking	Silver	Panel Mount Front	3 A	LED White	240 VDC	24 VAC/DC	16 mm	IP65 IP67	240 V	Illuminated Standard	-30 ░C	70 °C	SPDT	On-Mom	Button Flush Round
EAO 82-4152.02A4			Solder Lug									IP65 IP67		LED						7 mA	18 mm	Colorless	DC	Green Red	0.64 in	16.2 mm	Round	Round with Flat Top	24 V

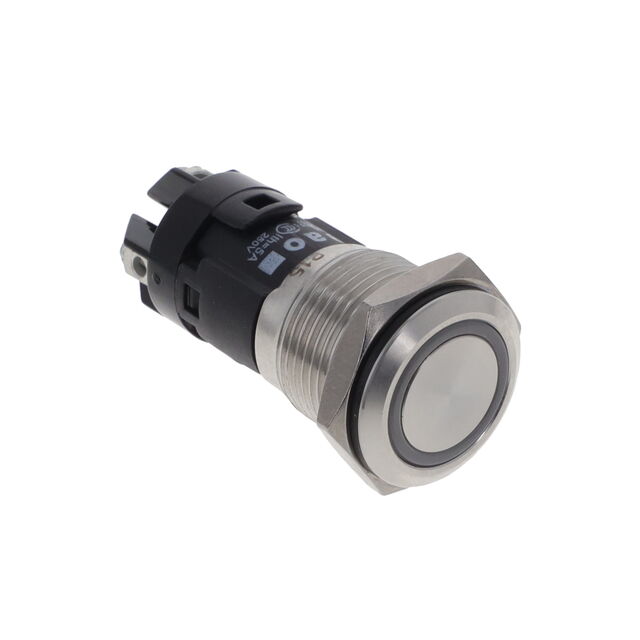

EAO 82-4152.21A4	500000 Cycles	50000 Cycles	Screw Terminal	No Marking	Silver	Panel Mount Front	3 A	Green/Red LED	240 VDC	24 VAC/DC	16 mm	IP65 IP67	240 V	Illuminated Standard	-30 ░C	70 °C	SPDT	On-On	Button Flush Round
EAO 82-4152.0214			Solder Lug									IP65 IP67		LED						7 mA	18 mm	Colorless	AC/DC	Red	0.64 in	16.2 mm	Round	Round with Flat Top	24 V
EAO 82-4152.0234			Solder Lug									IP65 IP67		LED						7 mA	18 mm	Colorless	AC/DC	Green	0.64 in	16.2 mm	Round	Round with Flat Top	24 V
EAO 82-4152.22A4	500000 Cycles	50000 Cycles	Screw Terminal	No Marking	Silver	Panel Mount Front	3 A	Green/Red LED	240 VDC	24 VAC/DC	16 mm	IP65 IP67	240 V	Illuminated Standard	-30 ░C	70 °C	SPDT	On-On	Button Flush Round
EAO 82-4152.12A4	1000000 Cycles	50000 Cycles	Screw Terminal	No Marking	Silver	Panel Mount Front	3 A	Green/Red LED	240 VDC	24 VAC/DC	16 mm	IP65 IP67	240 V	Illuminated Standard	-30 ░C	70 °C	SPDT	On-Mom	Button Flush Round
