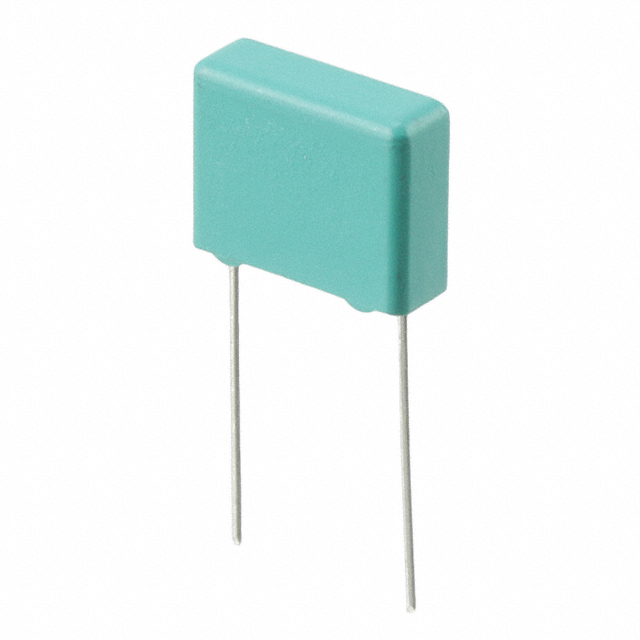

PHE850 Series

Manufacturer: KEMET

Catalog

SAFETY CAPACITORS 300V 0.010UF 20% LS=15MM

Part	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Tolerance	Operating Temperature [Min]	Operating Temperature [Max]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Lead Spacing	Lead Spacing	Ratings	Applications	Voltage Rating - DC	Voltage Rating - DC	Voltage Rating - AC	Package / Case	Dielectric Material	Termination	Capacitance	Mounting Type	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Height - Seated (Max)	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [z]
KEMET PHE850EB5100MB04R17	0.413 "	10.5 mm	20 %	-55 C	110 °C	0.217 in	0.709 in	5.5 mm	18 mm	15 mm	0.591 in	Y2	EMI RFI Suppression	1250 V	1.25 kV	300 V	Radial	Polypropylene (PP) Metallized	PC Pins	10000 pF	Through Hole
KEMET PHE850EB5390MB11R17
KEMET PHE850EA4470MA03R17			20 %	-55 C	110 °C	0.197 "	0.512 "	5 mm	13 mm	10 mm	0.394 in	Y2	EMI RFI Suppression	1250 V	1.25 kV	300 V	Radial	Polypropylene (PP) Metallized	PC Pins	0.0047 µF	Through Hole	11 mm	0.433 in
KEMET PHE850EB5150MB15R17	0.472 in		20 %	-55 C	110 °C	0.236 "	0.709 in	6 mm	18 mm	15 mm	0.591 in	Y2	EMI RFI Suppression	1250 V	1.25 kV	300 V	Radial	Polypropylene (PP) Metallized	PC Pins	15000 pF	Through Hole			12 mm

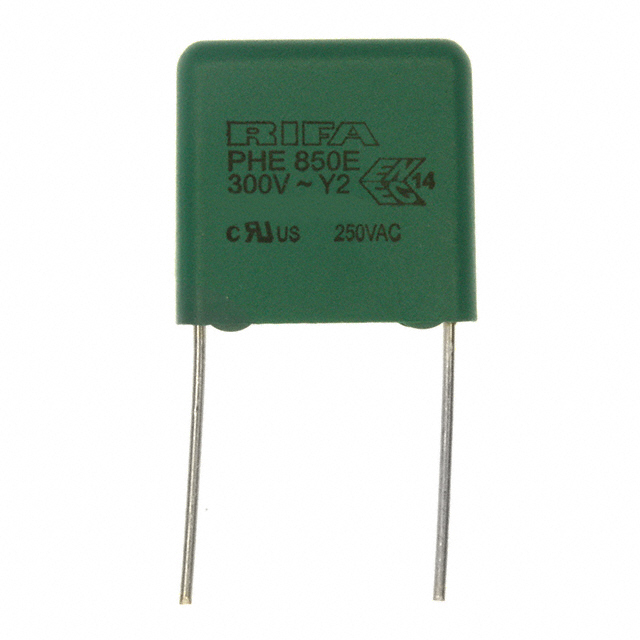

KEMET PHE850EB5470MB14R17			20 %	-55 C	110 °C	0.374 in	0.709 in	9.5 mm	18 mm	15 mm	0.591 in	Y2	EMI RFI Suppression	1250 V	1.25 kV	300 V	Radial	Polypropylene (PP) Metallized	PC Pins		Through Hole	0.689 in			17.5 mm
KEMET PHE850EB5150MB15R17T0
KEMET PHE850EA4150MA01R17	0.354 in	9 mm	20 %	-55 C	110 °C	0.157 "	0.512 "	4 mm	13 mm	10 mm	0.394 in	Y2	EMI RFI Suppression	1250 V	1.25 kV	300 V	Radial	Polypropylene (PP) Metallized	PC Pins	1500 pF	Through Hole

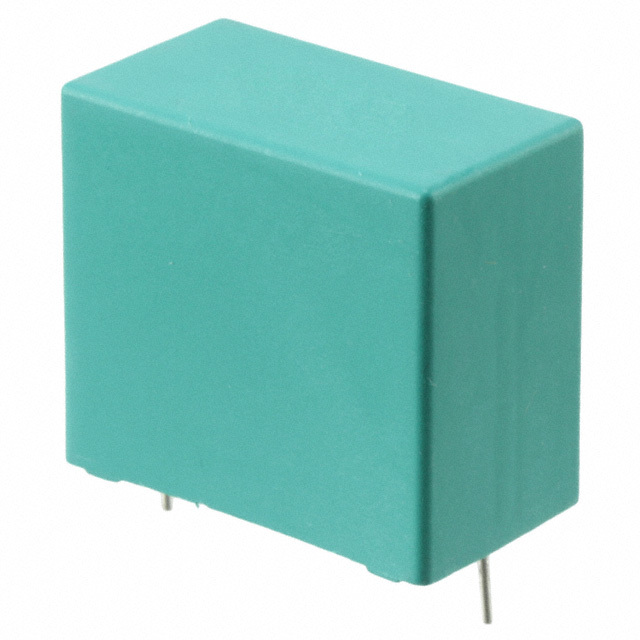

KEMET PHE850EF6470MF14R06L2			20 %	-55 C	110 °C	0.689 in	1.24 in	17.5 mm	31.5 mm	27.5 mm	1.083 in	Y2	EMI RFI Suppression	1250 V	1.25 kV	300 V	Radial	Polypropylene (PP) Metallized	PC Pins	0.47 µF	Through Hole	28 mm	1.102 in
KEMET PHE850EF6150MF11R06L2			20 %	-55 C	110 °C	0.413 in	1.24 in	10.5 mm	31.5 mm	27.5 mm	1.083 in	Y2	EMI RFI Suppression	1250 V	1.25 kV	300 V	Radial	Polypropylene (PP) Metallized	PC Pins	0.15 ÁF	Through Hole		0.807 in			20.5 mm
KEMET PHE850EA4470MA03R17T0			20 %	-55 C	110 °C	0.197 "	0.512 "	5 mm	13 mm	10 mm	0.394 in	Y2	EMI RFI Suppression	1250 V	1.25 kV	300 V	Radial	Polypropylene (PP) Metallized	PC Pins	0.0047 µF	Through Hole	11 mm	0.433 in
