29096 Series
Manufacturer: Phoenix Contact
Beta
⌘K

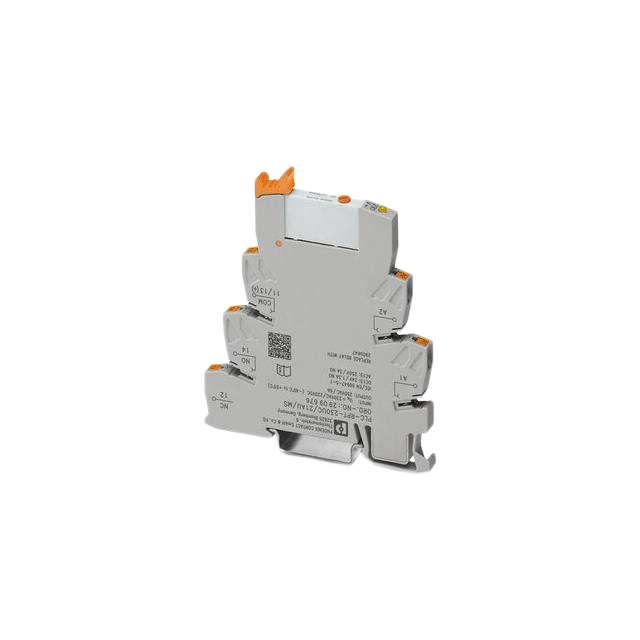

ELECTROMECHANICAL RELAY 24VDC 2.67KOHM 6A SPDT( (6.2MM 94MM 80MM)) DIN RAIL RELAY MODULE
| Part | Coil Resistance | Coil Current | Release Time | Switching Voltage | Contact Rating (Current) | Approval Agency | Contact Form | Coil Type | Termination Style | Operate Time | Must Operate Voltage | Features | Operating Temperature [Max] | Operating Temperature [Min] | Relay Type | Mounting Type | Contact Material | Coil Voltage | Seal Rating | Coil Voltage | Coil Voltage | Coil Voltage | Switching Voltage [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Phoenix Contact | 2.667 kOhms | 9 mA | 8 ms | 250 VAC 250 VDC | 6 A | CE UKCA | SPDT (1 Form C) | Non Latching | Spring Terminal | 5 ms | 18.5 VDC | Diode Lighted Indicator Socket Included | 60 °C | -40 C | General Purpose | DIN Rail | Gold (Au) Silver Tin Oxide (AgSnO) | 24 VDC | |||||
 Phoenix Contact | 34.29 kOhms | 3.5 mA | 15 ms | 250 VAC 250 VDC | 6 A | CE UKCA | SPDT (1 Form C) | Non Latching | Spring Terminal | 6 ms | Lighted Indicator Socket Included | 55 °C | -40 C | General Purpose | DIN Rail | Silver Tin Oxide (AgSnO) | Sealed - Fully | 120VAC/DC | |||||
 Phoenix Contact | 71.875 kOhms | 3.2 mA | 15 ms | 250 VAC 250 VDC | 6 A | CE UKCA | SPST-NO (1 Form A) | Non Latching | Spring Terminal | 7 ms | Lighted Indicator Socket Included | 55 °C | -40 C | General Purpose | DIN Rail | Gold (Au) Silver Tin Oxide (AgSnO) | 230 VDC | 230 VAC | |||||
 Phoenix Contact | 784.314 Ohms | 15.3 mA | 8 ms | 250 VAC 250 VDC | 6 A | CE UKCA | SPDT (1 Form C) | Non Latching | Spring Terminal | 5 ms | 9.7 VDC | Diode Lighted Indicator Socket Included | 60 °C | -40 C | General Purpose | DIN Rail | Gold (Au) Silver Tin Oxide (AgSnO) | 12 VDC | |||||
 Phoenix Contact | 34.29 kOhms | 3.5 mA | 15 ms | 250 VAC 250 VDC | 6 A | CE UKCA | SPDT (1 Form C) | Non Latching | Spring Terminal | 6 ms | 93.6 VAC/DC | Lighted Indicator Socket Included | 55 °C | -40 C | General Purpose | DIN Rail | Gold (Au) Silver Tin Oxide (AgSnO) | 120VAC/DC | |||||
 Phoenix Contact | 71.875 kOhms | 3.2 mA | 15 ms | 250 VAC 250 VDC | 6 A | CE UKCA | SPDT (1 Form C) | Non Latching | Spring Terminal | 7 ms | Lighted Indicator Socket Included | 55 °C | -40 C | General Purpose | DIN Rail | Silver Tin Oxide (AgSnO) | Sealed - Fully | 230 VDC | 230 VAC | ||||
 Phoenix Contact | 71.875 kOhms | 3.2 mA | 15 ms | 50 mA | cULus DNV EAC UL | SPDT (1 Form C) | Non Latching | Spring Terminal | 7 ms | 179.4 VAC/DC | Lighted Indicator Socket Included | 55 °C | -40 C | General Purpose | DIN Rail | Gold (Au) Silver Tin Oxide (AgSnO) | 230 VDC | 230 VAC | 30 VAC 36 VDC |
