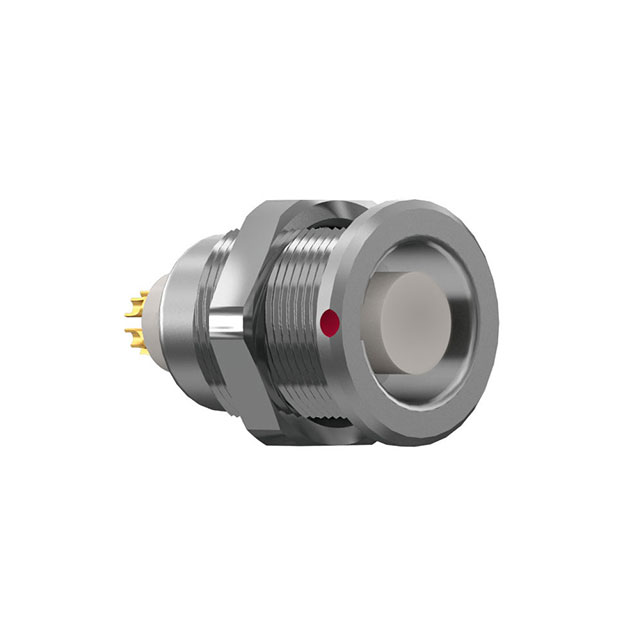

G11L0C-P Series
Manufacturer: ODU
Beta
⌘K
CONN RCPT FMALE 5P GOLD SLDR CUP
| Part | Primary Material | Contact Material | Fastening Type | Contact Finish - Mating | Connector Type | Shell Material | Insert Material | Number of Positions | Ingress Protection | Operating Temperature [Max] | Operating Temperature [Min] | Shell Finish | Mounting Type | Color | Shell Size - Insert | Current Rating (Amps) | Mounting Feature | Features | Applications | Orientation | Voltage Rating | Shielding | Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Metal | Brass | Push-Pull | Gold | Receptacle Female Sockets | Brass | Polyetheretherketone (PEEK) | 5 | IP50 - Dust Protected | 120 °C | -40 C | Chrome over Nickel | Panel Mount | Silver | 1 | 7.5 A | Bulkhead - Rear Side Nut | Ground | Industrial Medical Military Testing Equipment & Measurement | 0 | ||||
Metal | Brass | Push-Pull | Gold | Receptacle Female Sockets | Brass | Polyetheretherketone (PEEK) | 8 | IP50 - Dust Protected | 120 °C | -40 C | Chrome over Nickel | Panel Mount | Silver | 1 | 7.5 A | Bulkhead - Rear Side Nut | Ground | Industrial Medical Military Testing Equipment & Measurement | 0 | 300 VDC | Unshielded | Crimp | |
Metal | Brass | Push-Pull | Gold | Receptacle Female Sockets | Brass | Polyetheretherketone (PEEK) | 2 | IP50 - Dust Protected | 120 °C | -40 C | Chrome over Nickel | Panel Mount | Silver | 1 | 12 Amps | Bulkhead - Rear Side Nut | Ground | Industrial Medical Military Testing Equipment & Measurement | 0 | 550 VDC | Unshielded | ||
Metal | Brass | Push-Pull | Gold | Receptacle Female Sockets | Brass | Polyetheretherketone (PEEK) | 8 | IP50 - Dust Protected | 120 °C | -40 C | Chrome over Nickel | Panel Mount Through Hole | Silver | 1 | 6 A | Bulkhead - Rear Side Nut | Ground | Industrial Medical Military Testing Equipment & Measurement | 0 | 333 V | Unshielded | Solder | |
Metal | Brass | Push-Pull | Gold | Receptacle Female Sockets | Brass | Polyetheretherketone (PEEK) | 6 | IP50 - Dust Protected | 120 °C | -40 C | Chrome over Nickel | Panel Mount | Silver | 1 | 7.5 A | Bulkhead - Rear Side Nut | Ground | Industrial Medical Military Testing Equipment & Measurement | 0 | 333 V | Unshielded | Crimp | |
Metal | Brass | Push-Pull | Gold | Receptacle Female Sockets | Brass | Polyetheretherketone (PEEK) | IP50 - Dust Protected | 120 °C | -40 C | Chrome over Nickel | Panel Mount | Silver | 1 | 12 Amps | Bulkhead - Rear Side Nut | Ground | Industrial Medical Military Testing Equipment & Measurement | 0 | |||||
Metal | Brass | Push-Pull | Gold | Receptacle Female Sockets | Brass | Polyetheretherketone (PEEK) | 8 | IP50 - Dust Protected | 120 °C | -40 C | Chrome over Nickel | Panel Mount | Silver | 1 | 6 A | Bulkhead - Rear Side Nut | Ground | Industrial Medical Military Testing Equipment & Measurement | 0 | 333 V | Unshielded | ||
Metal | Brass | Push-Pull | Gold | Receptacle Female Sockets | Brass | Polyetheretherketone (PEEK) | 2 | IP50 - Dust Protected | 120 °C | -40 C | Chrome over Nickel | Panel Mount | Silver | 1 | 12 Amps | Bulkhead - Rear Side Nut | Ground | Industrial Medical Military Testing Equipment & Measurement | 0 | Shielded | |||
Metal | Brass | Push-Pull | Gold | Receptacle Female Sockets | Brass | Polyetheretherketone (PEEK) | 5 | IP50 - Dust Protected | 120 °C | -40 C | Chrome over Nickel | Panel Mount | Silver | 1 | 10 A | Bulkhead - Rear Side Nut | Ground | Industrial Medical Military Testing Equipment & Measurement | 0 | 333 V | Unshielded | ||
Metal | Brass | Push-Pull | Gold | Receptacle Female Sockets | Brass | Polyetheretherketone (PEEK) | 16 | IP50 - Dust Protected | 120 °C | -40 C | Chrome over Nickel | Panel Mount Through Hole | Silver | 1 | 4 A | Bulkhead - Rear Side Nut | Ground | Industrial Medical Military Testing Equipment & Measurement | 0 | 300 VDC | Unshielded | Solder |
