540-88 Series

Manufacturer: Preci-Dip

Catalog

CONN SOCKET PLCC 68POS TIN

Part	Material Flammability Rating	Contact Resistance	Current Rating (Amps)	Contact Finish - Post	Pitch - Post	Pitch - Post	Mounting Type	Pitch - Mating	Pitch - Mating	Contact Material - Post	Number of Positions or Pins (Grid) [custom]	Number of Positions or Pins (Grid) [custom]	Number of Positions or Pins (Grid) [custom]	Type	Contact Material - Mating	Termination	Features	Number of Positions or Pins (Grid)	Number of Positions or Pins (Grid) [custom]	Number of Positions or Pins (Grid) [custom]	Number of Positions or Pins (Grid) [y]	Number of Positions or Pins (Grid) [x]	Termination Post Length	Termination Post Length	Number of Positions or Pins (Grid) [custom]
Preci-Dip 540-88-068-17-400-2	UL94 V-0	20 mOhm	1 A	Tin	0.1 in	2.54 mm	Surface Mount	1.27 mm	0.05 in	Phosphor Bronze	4	17	68	PLCC	Phosphor Bronze	Solder	Board Guide Closed Frame
Preci-Dip 540-88-020-17-400	UL94 V-0	20 mOhm	1 A	Tin	0.1 in	2.54 mm	Surface Mount	1.27 mm	0.05 in	Phosphor Bronze				PLCC	Phosphor Bronze	Solder	Closed Frame	20	5	4
Preci-Dip 540-88-032-17-400	UL94 V-0	20 mOhm	1 A	Tin	0.1 in	2.54 mm	Surface Mount	1.27 mm	0.05 in	Phosphor Bronze				PLCC	Phosphor Bronze	Solder	Closed Frame	32

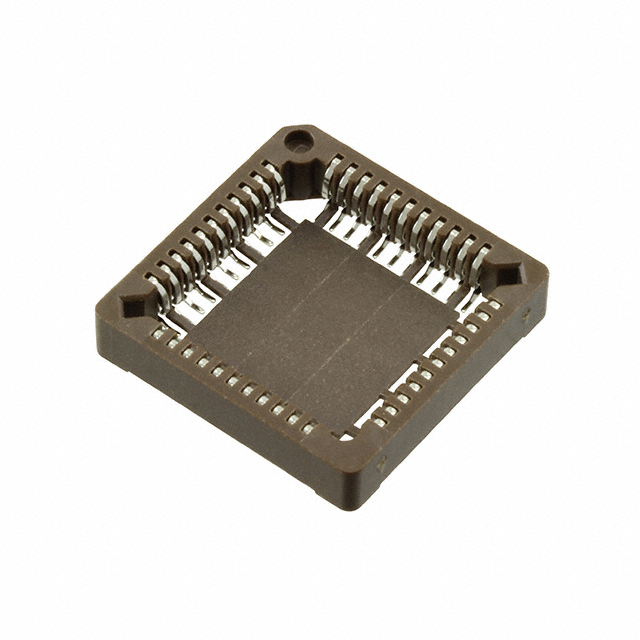

Preci-Dip 540-88-044-17-400	UL94 V-0	20 mOhm	1 A	Tin	0.1 in	2.54 mm	Surface Mount	1.27 mm	0.05 in	Phosphor Bronze				PLCC	Phosphor Bronze	Solder	Closed Frame	44			11	4
Preci-Dip 540-88-044-17-400-TR	UL94 V-0	20 mOhm	1 A	Tin	0.1 in	2.54 mm	Surface Mount	1.27 mm	0.05 in	Phosphor Bronze				PLCC	Phosphor Bronze	Solder	Closed Frame	44			11	4
Preci-Dip 540-88-032-24-008	UL94 V-0	20 mOhm	1 A	Tin	0.1 in	2.54 mm	Through Hole	1.27 mm	0.05 in	Phosphor Bronze				PLCC	Phosphor Bronze	Solder	Closed Frame	32					0.122 in	3.1 mm
Preci-Dip 540-88-052-24-008	UL94 V-0	20 mOhm	1 A	Tin	0.1 in	2.54 mm	Through Hole	1.27 mm	0.05 in	Phosphor Bronze				PLCC	Phosphor Bronze	Solder	Closed Frame	52					0.122 in	3.1 mm	4 x 13
Preci-Dip 540-88-084-24-008	UL94 V-0	20 mOhm	1 A	Tin	0.1 in	2.54 mm	Through Hole	1.27 mm	0.05 in	Phosphor Bronze				PLCC	Phosphor Bronze	Solder	Closed Frame						0.122 in	3.1 mm
Preci-Dip 540-88-028-24-008	UL94 V-0	20 mOhm	1 A	Tin	0.1 in	2.54 mm	Through Hole	1.27 mm	0.05 in	Phosphor Bronze				PLCC	Phosphor Bronze	Solder	Closed Frame	28					0.122 in	3.1 mm
Preci-Dip 540-88-020-17-400-TR	UL94 V-0	20 mOhm	1 A	Tin	0.1 in	2.54 mm	Surface Mount	1.27 mm	0.05 in	Phosphor Bronze				PLCC	Phosphor Bronze	Solder	Closed Frame	20	5	4
