C146 21R006 Series

Catalog

CONN HOOD SIDE ENTRY SZE6 M32

Part	Ingress Protection	Lock Location	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Connector Type	Thread Size	Housing Material	Style	Operating Temperature [Min]	Operating Temperature [Max]

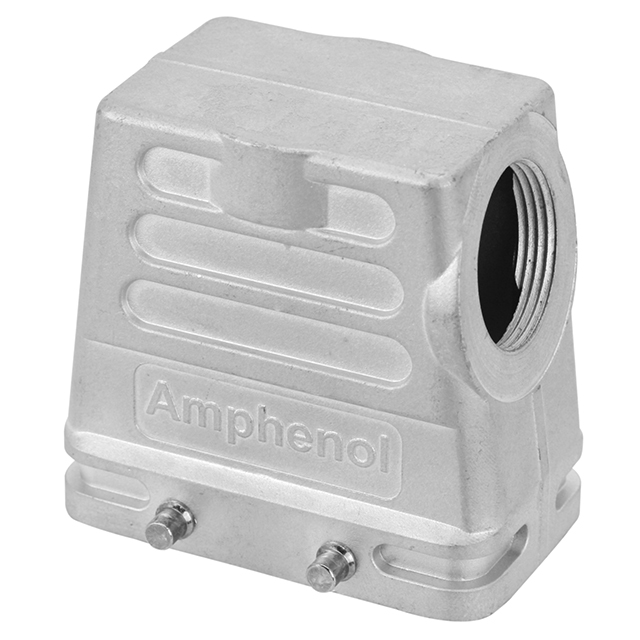

Amphenol Tuchel Industrial C146 21R006 506 8	IP65 - Dust Tight Water Resistant	Locking Clip (1) on Base Bottom	2.362 in	70 mm	43 mm	60 mm	1.693 "	2.756 "	Hood	M32	Aluminum Die Cast	Side Entry	-40 C	100 °C
Amphenol Tuchel Industrial C146 21R006 656 1	IP65 - Dust Tight Water Resistant	Locking Clip (1) on Base Bottom	2.362 in			60 mm	1.693 " 43 mm		Hood	M16	Aluminum Alloy Die Cast	Top Entry	-40 C	100 °C

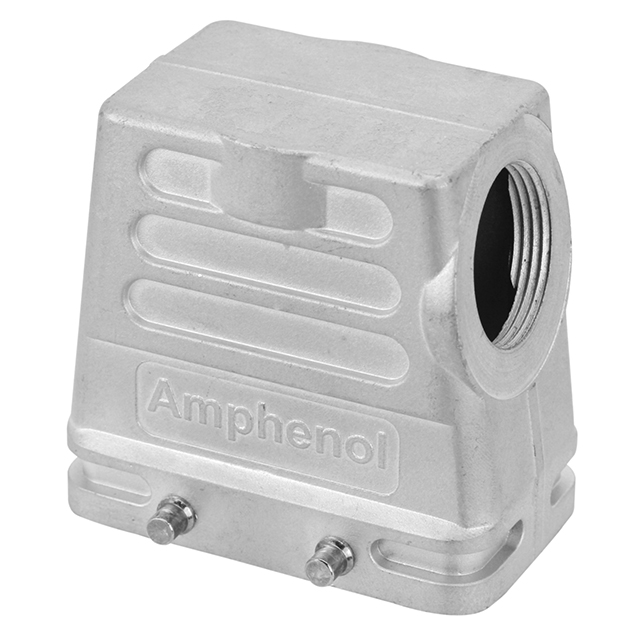

Amphenol Tuchel Industrial C146 21R006 556 8	IP65 - Dust Tight Water Resistant	Locking Clip (1) on Base Bottom	2.362 in	70 mm	43 mm	60 mm	1.693 "	2.756 "	Hood	M25	Aluminum Die Cast	Side Entry	-40 C	100 °C

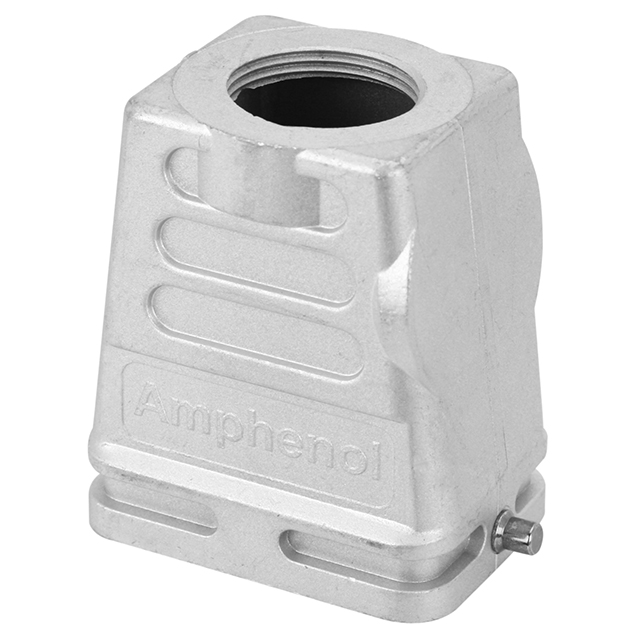

Amphenol Tuchel Industrial C146 21R006 606 8	IP65 - Dust Tight Water Resistant	Locking Clip (1) on Base Bottom	2.362 in	70 mm	43 mm	60 mm	1.693 "	2.756 "	Hood	M32	Aluminum Die Cast	Top Entry	-40 C	100 °C
Amphenol Tuchel Industrial C146 21R006 607 1	IP65 - Dust Tight Water Resistant	Locking Clip (1) on Base Bottom							Hood	M25	Aluminum Alloy Die Cast	Top Entry	-40 C	100 °C
