8P1P004 Series
Manufacturer: NorComp Inc.
Beta
⌘K

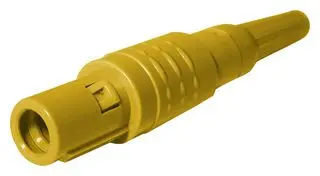

CIRCULAR CONNECTOR, QUIK-LOQ 8P1P SERIES, CABLE MOUNT PLUG, 4 CONTACTS, SOLDER PIN, PUSH-PULL
| Part | Current Rating (Amps) | Contact Finish - Mating | Connector Type | Insert Material | Fastening Type | Color | Shell Material | Operating Temperature [Max] | Operating Temperature [Min] | Orientation | Number of Positions | Voltage Rating | Primary Material | Shielding | Mounting Type | Contact Material | Cable Opening [Max] | Cable Opening [Max] | Cable Opening [Min] | Cable Opening [Min] | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Ingress Protection | Mounting Feature | Termination | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NorComp Inc. | 8 A | Gold | Plug Male Pins | Polyphenylene Sulfide (PPS) | Push-Pull | Blue Gray | Polyacrylonitrile Butadiene Styrene (ABS) Polycarbonate (PC) | 120 °C | -20 ░C | Keyed | 4 | 500 V | Plastic | Unshielded | Free Hanging (In-Line) | Copper Alloy | 6 mm | 0.236 in | 5 mm | 0.197 in | 7 µin | 0.178 µm | IP50 - Dust Protected | |||
 NorComp Inc. | 8 A | Gold | Receptacle Female Sockets | Polyphenylene Sulfide (PPS) | Push-Pull | Polyacrylonitrile Butadiene Styrene (ABS) Polycarbonate (PC) | 120 °C | -20 ░C | Keyed | 4 | 500 V | Plastic | Unshielded | Panel Mount | Copper Alloy | 7 µin | 0.178 µm | IP50 - Dust Protected | Bulkhead - Front Side Nut | |||||||
 NorComp Inc. | 8 A | Gold | Receptacle Female Sockets | Polyphenylene Sulfide (PPS) | Push-Pull | Gray Red | Polyacrylonitrile Butadiene Styrene (ABS) Polycarbonate (PC) | 120 °C | -20 ░C | Keyed | 4 | 500 V | Plastic | Unshielded | Panel Mount Right Angle Through Hole | Copper Alloy | 7 µin | 0.178 µm | IP50 - Dust Protected | Bulkhead - Front Side Nut | Solder | |||||
 NorComp Inc. | 8 A | Gold | Plug Male Pins | Polyphenylene Sulfide (PPS) | Push-Pull | Gray Yellow | Polyacrylonitrile Butadiene Styrene (ABS) Polycarbonate (PC) | 120 °C | -20 ░C | Keyed | 4 | 500 V | Plastic | Unshielded | Free Hanging (In-Line) | Copper Alloy | 3.99 mm | 0.157 in | 2.2 mm | 0.087 in | 7 µin | 0.178 µm | IP50 - Dust Protected | Backshell Strain Relief | ||
 NorComp Inc. | 8 A | Gold | Receptacle Female Sockets | Polyphenylene Sulfide (PPS) | Push-Pull | Gray Yellow | Polyacrylonitrile Butadiene Styrene (ABS) Polycarbonate (PC) | 120 °C | -20 ░C | Keyed | 4 | 500 V | Plastic | Unshielded | Panel Mount Right Angle Through Hole | Copper Alloy | 7 µin | 0.178 µm | IP50 - Dust Protected | Bulkhead - Front Side Nut | Solder | |||||
NorComp Inc. | 8 A | Gold | Plug Male Pins | Polyphenylene Sulfide (PPS) | Push-Pull | Gray | Polyacrylonitrile Butadiene Styrene (ABS) Polycarbonate (PC) | 120 °C | -20 ░C | Keyed | 4 | 500 V | Plastic | Unshielded | Free Hanging (In-Line) | Copper Alloy | 3.99 mm | 0.157 in | 2.2 mm | 0.087 in | 7 µin | 0.178 µm | IP50 - Dust Protected | |||
 NorComp Inc. | 8 A | Gold | Receptacle Female Sockets | Polyphenylene Sulfide (PPS) | Push-Pull | Gray Yellow | Polyacrylonitrile Butadiene Styrene (ABS) Polycarbonate (PC) | 120 °C | -20 ░C | Keyed | 4 | 500 V | Plastic | Unshielded | Panel Mount Through Hole | Copper Alloy | 7 µin | 0.178 µm | IP50 - Dust Protected | Bulkhead - Front Side Nut | Solder | |||||
NorComp Inc. | 8 A | Gold | Plug Male Pins | Polyphenylene Sulfide (PPS) | Push-Pull | Gray | Polyacrylonitrile Butadiene Styrene (ABS) Polycarbonate (PC) | 120 °C | -20 ░C | Keyed | 4 | 500 V | Plastic | Unshielded | Free Hanging (In-Line) | Copper Alloy | 6 mm | 0.236 in | 5 mm | 0.197 in | 7 µin | 0.178 µm | IP50 - Dust Protected | |||
 NorComp Inc. | 8 A | Gold | Receptacle Female Sockets | Polyphenylene Sulfide (PPS) | Push-Pull | Gray Green | Polyacrylonitrile Butadiene Styrene (ABS) Polycarbonate (PC) | 120 °C | -20 ░C | Keyed | 4 | 500 V | Plastic | Unshielded | Panel Mount Through Hole | Copper Alloy | 7 µin | 0.178 µm | IP50 - Dust Protected | Bulkhead - Front Side Nut | Solder | |||||
 NorComp Inc. | 8 A | Gold | Receptacle Female Sockets | Polyphenylene Sulfide (PPS) | Push-Pull | Polyacrylonitrile Butadiene Styrene (ABS) Polycarbonate (PC) | 120 °C | -20 ░C | Keyed | 4 | 500 V | Plastic | Unshielded | Panel Mount Through Hole | Copper Alloy | 7 µin | 0.178 µm | IP50 - Dust Protected | Bulkhead - Front Side Nut | Solder |
