KD14.4101 Series

Catalog

PWR ENT MOD RCPT IEC320-C14 PNL

Part	Connector Type	Mounting Type	Approval Agency	Voltage Rating - Appliance Inlet	Termination	Termination	Termination	Filter Type	Ingress Protection	Panel Thickness	Panel Thickness	Current Rating - Appliance Inlet	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Switch Features	Fuse Holder, Drawer	Features	Material Flammability Rating	Connector Style

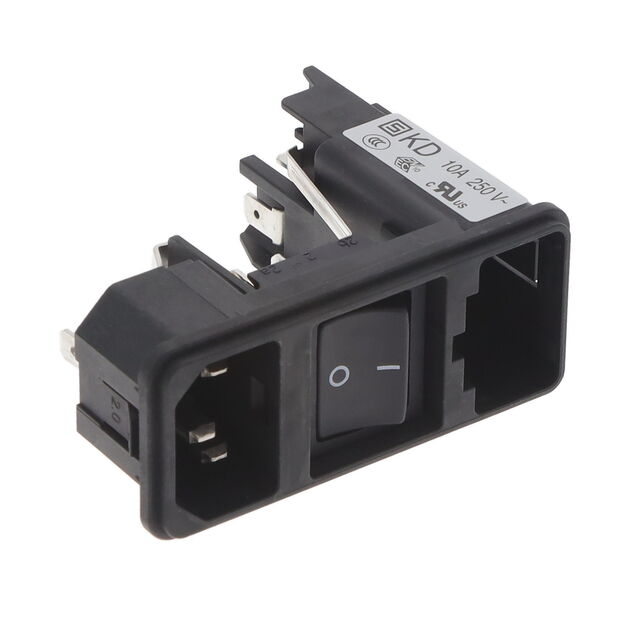

SCHURTER Inc. KD14.4101.107	Receptacle Male Blades - Module	Panel Mount Snap-In	CCC CSA ENEC UL	250 VAC	0.189 "	4.8 mm	Quick Connect	Unfiltered - Commercial	IP40	0.079 in	2 mm	10 A	27.5 mm	66.5 mm	Switch On-Off	Drawer Sold Separate	Voltage Selector	UL94 V-0	IEC 320-C14

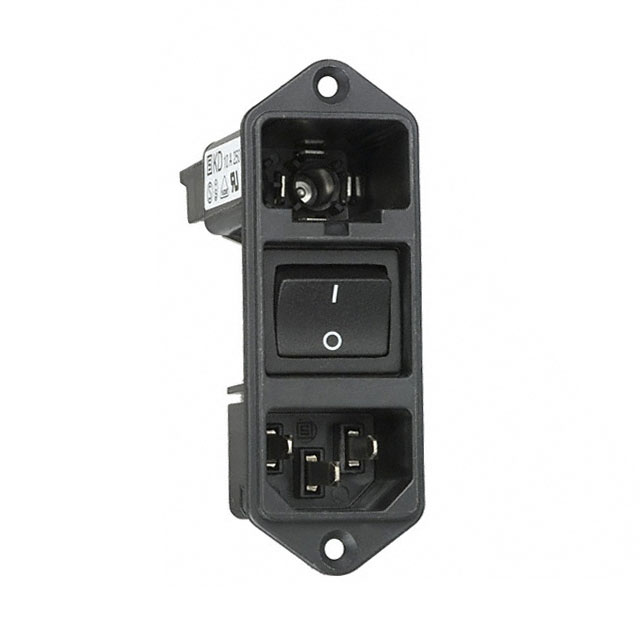

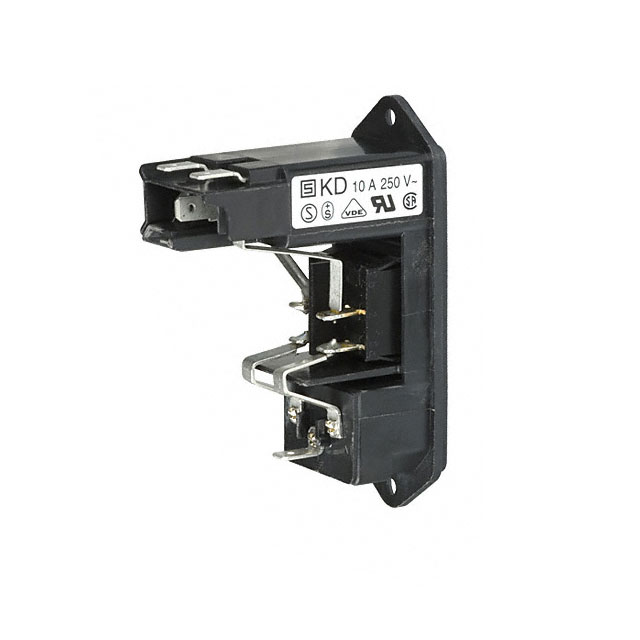

SCHURTER Inc. KD14.4101.151	Receptacle Male Blades - Module	Flange Panel Mount	CCC CSA ENEC UL	250 VAC	0.189 "	4.8 mm	Quick Connect	Unfiltered - Commercial	IP40			10 A	27.5 mm	66.5 mm	Switch On-Off	Drawer Sold Separate	Voltage Selector	UL94 V-0	IEC 320-C14

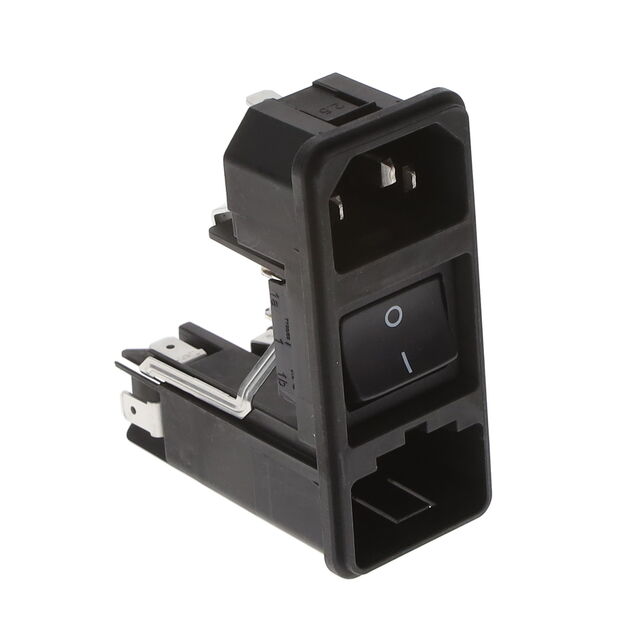

SCHURTER Inc. KD14.4101.109	Receptacle Male Blades - Module	Panel Mount Snap-In	CCC CSA ENEC UL	250 VAC	0.189 "	4.8 mm	Quick Connect	Unfiltered - Commercial	IP40	0.098 in	2.5 mm	10 A	27.5 mm	66.5 mm	Switch On-Off	Drawer Sold Separate	Voltage Selector	UL94 V-0	IEC 320-C14
SCHURTER Inc. KD14.4101.307	Receptacle Male Blades - Module		CCC CSA ENEC UL	250 VAC				Unfiltered - Commercial	IP40			10 A	27.5 mm	66.5 mm	Switch On-Off	Drawer Sold Separate		UL94 V-0	IEC 320-C14

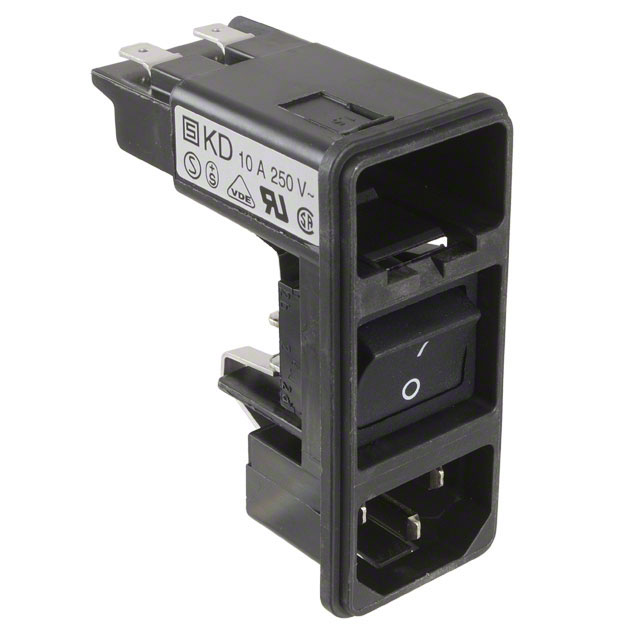

SCHURTER Inc. KD14.4101.105	Receptacle Male Blades - Module	Panel Mount Snap-In	CCC CSA ENEC UL	250 VAC	0.189 "	4.8 mm	Quick Connect	Unfiltered - Commercial	IP40	0.059 in	1.5 mm	10 A	27.5 mm	66.5 mm	Switch On-Off	Drawer Sold Separate	Voltage Selector	UL94 V-0	IEC 320-C14
