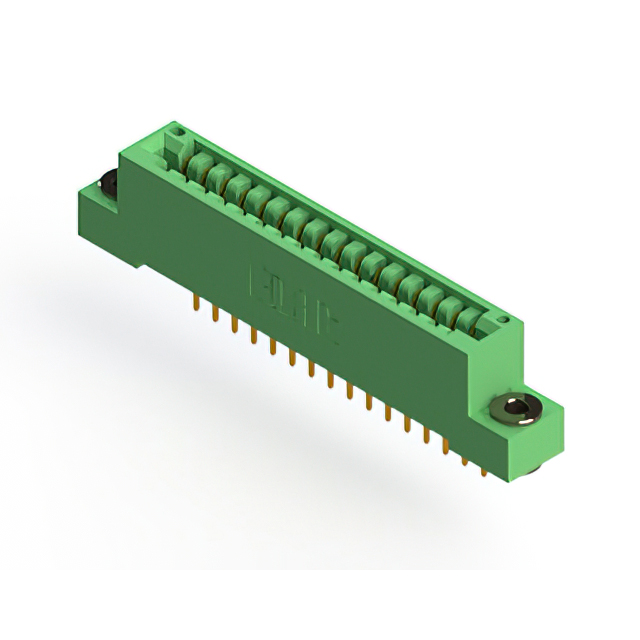

846-016 Series
Manufacturer: EDAC Inc.
Beta
⌘K
CONN EDGE SGL FMALE 16POS 0.125
| Part | Material - Insulation | Termination Rows | Operating Temperature [Max] | Operating Temperature [Min] | Card Type | Contact Finish Thickness | Contact Finish Thickness | Number of Rows | Flange Feature | Pitch | Pitch | Read Out | Termination | Card Thickness [Max] | Card Thickness [Min] | Gender | Color | Number of Positions | Contact Finish | Number of Positions/Bay/Row | Mounting Type | Contact Material | Contact Type | Flange Feature [diameter] | Flange Feature [diameter] | Termination Rows [custom] | Number of Rows [custom] | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | Diallyl Phthalate (DAP) | 1 | 125 °C | -40 C | Non Specified - Single Edge | 0.25 Ám | 10 Áin | 1 | 4-40 Threaded Insert Top Mount Opening | 3.18 mm | 0.125 in | Single | Solder | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Female | Green | 16 | Gold | 16 | Through Hole | Copper Alloy | Cantilever | |||||
 EDAC Inc. | Diallyl Phthalate (DAP) | 1 | 125 °C | -40 C | Non Specified - Single Edge | 0.25 Ám | 10 Áin | 1 | Floating Bobbin Flush Mount | 3.18 mm | 0.125 in | Single | Solder | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Female | Green | 16 | Gold | 16 | Through Hole | Copper Alloy | Cantilever | 0.116 " | 2.95 mm | |||
 EDAC Inc. | Diallyl Phthalate (DAP) | 1 | 125 °C | -40 C | Non Specified - Single Edge | 0.25 Ám | 10 Áin | 1 | 4-40 Flush Mount Threaded Insert Top Opening | 3.18 mm | 0.125 in | Single | Solder Eyelet(s) | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Female | Green | 16 | Gold | 16 | Through Hole | Copper Alloy | Cantilever | |||||
 EDAC Inc. | Diallyl Phthalate (DAP) | 125 °C | -40 C | Non Specified - Dual Edge | 0.25 Ám | 10 Áin | Flush Mount Side Opening Unthreaded | 3.18 mm | 0.125 in | Dual | Solder | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Female | Green | 16 | Gold | 8 | Through Hole | Copper Alloy | Cantilever | 0.128 " | 3.25 mm | 2 | 2 | |||
 EDAC Inc. | Diallyl Phthalate (DAP) | 125 °C | -40 C | Non Specified - Dual Edge | 0.25 Ám | 10 Áin | Floating Bobbin Top Mount Opening | 3.18 mm | 0.125 in | Dual | Solder | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Female | Green | 16 | Gold | 8 | Board Edge Straddle Mount | Copper Alloy | Cantilever | 0.116 " | 2.95 mm | 2 | 2 | Card Extender | ||
 EDAC Inc. | Diallyl Phthalate (DAP) | 1 | 125 °C | -40 C | Non Specified - Single Edge | 0.25 Ám | 10 Áin | 1 | 3.18 mm | 0.125 in | Single | Solder | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Female | Green | 16 | Gold | 16 | Right Angle Through Hole | Copper Alloy | Cantilever | ||||||
 EDAC Inc. | Diallyl Phthalate (DAP) | 125 °C | -40 C | Non Specified - Dual Edge | 0.25 Ám | 10 Áin | 3.18 mm | 0.125 in | Dual | Solder | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Female | Green | 16 | Gold | 8 | Board Edge Straddle Mount | Copper Alloy | Cantilever | 0.128 " | 3.25 mm | 2 | 2 | Card Extender | |||
 EDAC Inc. | Diallyl Phthalate (DAP) | 1 | 125 °C | -40 C | Non Specified - Single Edge | 0.25 Ám | 10 Áin | 1 | 4-40 Threaded Insert Top Mount Opening | 3.18 mm | 0.125 in | Single | Solder Eyelet(s) | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Female | Green | 16 | Gold | 16 | Through Hole | Copper Alloy | Cantilever | |||||
 EDAC Inc. | Diallyl Phthalate (DAP) | 125 °C | -40 C | Non Specified - Dual Edge | 0.25 Ám | 10 Áin | Flush Mount Top Opening Unthreaded | 3.18 mm | 0.125 in | Dual | Solder | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Female | Green | 16 | Gold | 8 | Board Edge Straddle Mount | Copper Alloy | Cantilever | 0.156 " | 3.96 mm | 2 | 2 | Card Extender | ||
 EDAC Inc. | Diallyl Phthalate (DAP) | 125 °C | -40 C | Non Specified - Dual Edge | 0.25 Ám | 10 Áin | Floating Bobbin Top Mount Opening | 3.18 mm | 0.125 in | Dual | Solder | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Female | Green | 16 | Gold | 8 | Through Hole | Copper Alloy | Cantilever | 0.116 " | 2.95 mm | 2 | 2 |
