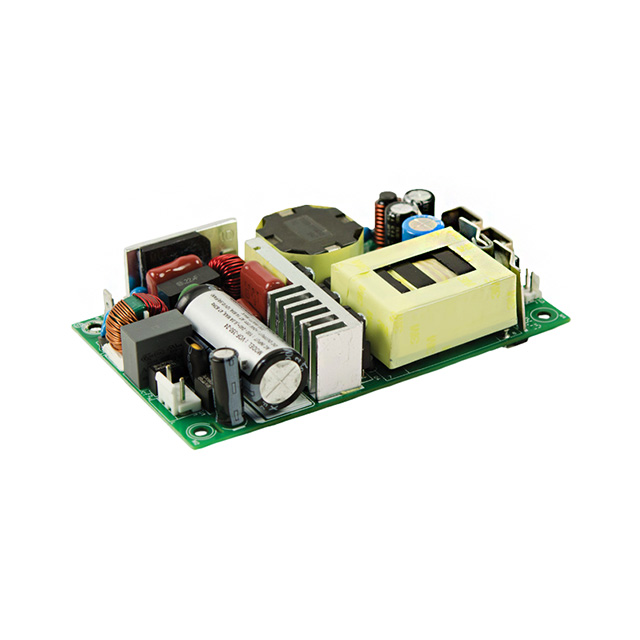

VOF-350 Series

Manufacturer: CUI Inc.

Catalog

SWITCHING POWER SUPPLIES 350W 58V 6.04A 3X5 JST CONNECTOR

Part	Current - Output 1	Standard Number	Approval Agency	Voltage - Isolation	Type	Applications	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Number of Outputs	Mounting Type	Voltage - Input [Max]	Voltage - Input [Min]	Power (Watts)	Power (Watts)	Features	Efficiency	Voltage - Output 1
CUI Inc. VOF-350-58-1	6.04 A	55024 55032 Class B 60950-1 61000-3-2 61000-3-3	CB Scheme EN FCC IEC SIQ TUV UL	3000 V	Open Frame	ITE (Commercial)	76.2 mm	127 mm	127 mm	3 "	25.4 mm	25.4 mm	1	Chassis Mount	264 VAC	90 VAC	200 Watts	350 W	Adjustable Output PFC Standby Output Universal Input	94 %
CUI Inc. VOF-350-15-1	12 A	55024 55032 Class B 60950-1 61000-3-2 61000-3-3	CB Scheme EN FCC IEC SIQ TUV UL	3000 V	Open Frame	ITE (Commercial)	76.2 mm	127 mm	127 mm	3 "	25.4 mm	25.4 mm	1	Chassis Mount	264 VAC	90 VAC	180 W	270 W	Adjustable Output PFC Standby Output Universal Input	92 %	15 V
CUI Inc. VOF-350-58	6.04 A	55024 55032 Class B 60950-1 61000-3-2 61000-3-3	CB Scheme EN FCC IEC SIQ TUV UL	3000 V	Open Frame	ITE (Commercial)	76.2 mm	127 mm	127 mm	3 "	25.4 mm	25.4 mm	1	Chassis Mount	264 VAC	90 VAC	200 Watts	350 W	Adjustable Output PFC Standby Output Universal Input	94 %
CUI Inc. VOF-350-48	4.17 A	55024 55032 Class B 60950-1 61000-3-2 61000-3-3	CB Scheme EN FCC IEC SIQ TUV UL	3000 V	Open Frame	ITE (Commercial)	76.2 mm	127 mm	127 mm	3 "	25.4 mm	25.4 mm	1	Chassis Mount	264 VAC	90 VAC	200 Watts	350 W	Adjustable Output Standby Output Universal Input	94 %	48 V
CUI Inc. VOF-350-48-1	4.17 A	55024 55032 Class B 60950-1 61000-3-2 61000-3-3	CB Scheme EN FCC IEC SIQ TUV UL	3000 V	Open Frame	ITE (Commercial)	76.2 mm	127 mm	127 mm	3 "	25.4 mm	25.4 mm	1	Chassis Mount	264 VAC	90 VAC	200 Watts	350 W	Adjustable Output PFC Standby Output Universal Input	94 %	48 V
CUI Inc. VOF-350-12-1	15 A	55024 55032 Class B 60950-1 61000-3-2 61000-3-3	CB Scheme EN FCC IEC SIQ TUV UL	3000 V	Open Frame	ITE (Commercial)	76.2 mm	127 mm	127 mm	3 "	25.4 mm	25.4 mm	1	Chassis Mount	264 VAC	90 VAC	180 W 225 W		Adjustable Output PFC Standby Output Universal Input	92 %	12 V
CUI Inc. VOF-350-24	8.33 A	55024 55032 Class B 60950-1 61000-3-2 61000-3-3	CB Scheme EN FCC IEC SIQ TUV UL	3000 V	Open Frame	ITE (Commercial)	76.2 mm	127 mm	127 mm	3 "	25.4 mm	25.4 mm	1	Chassis Mount	264 VAC	90 VAC	200 Watts	350 W	Adjustable Output Standby Output Universal Input	93 %	24 V
CUI Inc. VOF-350-24-1	8.33 A	55024 55032 Class B 60950-1 61000-3-2 61000-3-3	CB Scheme EN FCC IEC SIQ TUV UL	3000 V	Open Frame	ITE (Commercial)	76.2 mm	127 mm	127 mm	3 "	25.4 mm	25.4 mm	1	Chassis Mount	264 VAC	90 VAC	200 Watts	350 W	Adjustable Output PFC Standby Output Universal Input	93 %	24 V
CUI Inc. VOF-350-30-1	6.67 A	55024 55032 Class B 60950-1 61000-3-2 61000-3-3	CB Scheme EN FCC IEC SIQ TUV UL	3000 V	Open Frame	ITE (Commercial)	76.2 mm	127 mm	127 mm	3 "	25.4 mm	25.4 mm	1	Chassis Mount	264 VAC	90 VAC	200 Watts	350 W	Adjustable Output PFC Standby Output Universal Input	93 %	30 V
