LAM3LD Series
Manufacturer: Panduit Corp
Beta
⌘K

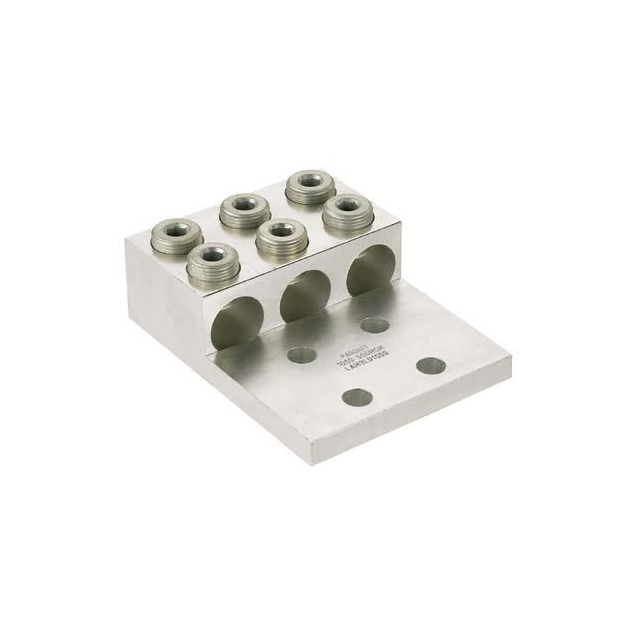

LUG TERMINAL, 4-STUD, PAN-LUG LAM3LD SERIES, SCREW, MECHANICAL LUG, M12
| Part | Mounting Type | Width - Outer Edges [x] | Width - Outer Edges [x] | Tab Thickness | Tab Thickness | Terminal Style | Stud/Tab Size | Termination | Insulation | Wire Gauge [Max] | Wire Gauge [Min] | Length - Overall [x] | Length - Overall [x] | Contact Material | Terminal Type | Contact Finish | Features | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Panduit Corp | Free Hanging (In-Line) | 133.86 mm | 5.27 " | 0.56 in | 14.22 mm | Four Stud Holes | 1/2 Stud | Screw | Non-Insulated | 1000 MCM | 500 MCM | 6.19 in | 157.23 mm | Aluminum Alloy | Grounding Lug | Tin | 3 | With Screw |
