2324579 Series

Manufacturer: TE Connectivity Raychem Cable Protection

Catalog

HOUSING, PLUG, 8P, DUAL ROW, EP2.5

Part	Connector Type	Contact Termination	Number of Rows	Color	Insulation Material	Pitch [x]	Pitch [x]	Mounting Type	Note	Fastening Type	Number of Positions	Row Spacing	Row Spacing	Contact Type	Operating Temperature [Max]	Operating Temperature [Min]

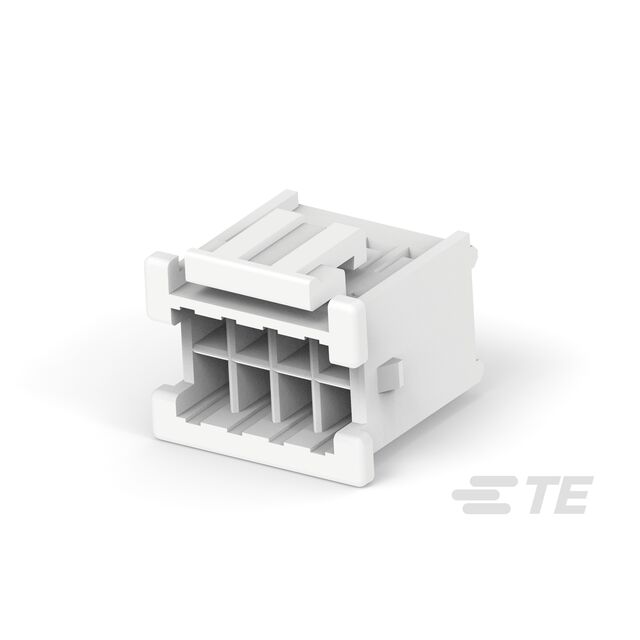

TE Connectivity Raychem Cable Protection 2324579-8	Plug	Crimp	2	Natural	Polyamide (PA66) Nylon 6/6	0.098 in	2.5 mm	Free Hanging (In-Line)	Contacts Not Included	Locking Ramp	8	0.098 in	2.5 mm	Female Socket	105 ░C	-55 °C

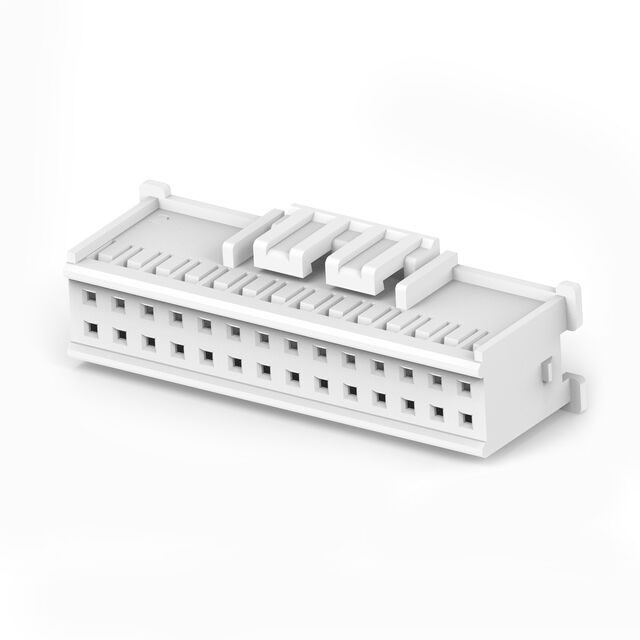

TE Connectivity Raychem Cable Protection 2-2324579-8	Plug	Crimp	2	Natural	Polyamide (PA66) Nylon 6/6	0.098 in	2.5 mm	Free Hanging (In-Line)	Contacts Not Included	Locking Ramp	28	0.098 in	2.5 mm	Female Socket	105 ░C	-55 °C

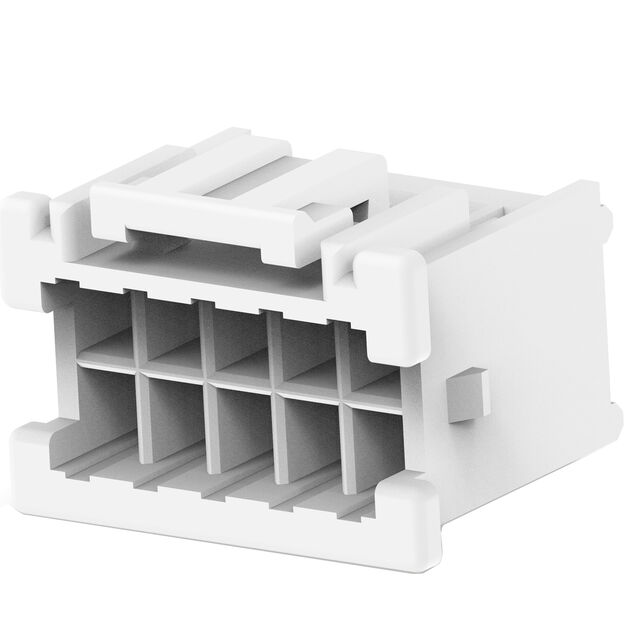

TE Connectivity Raychem Cable Protection 1-2324579-0	Plug	Crimp	2	Natural	Polyamide (PA66) Nylon 6/6	0.098 in	2.5 mm	Free Hanging (In-Line)	Contacts Not Included	Locking Ramp	10	0.098 in	2.5 mm	Female Socket	105 ░C	-55 °C

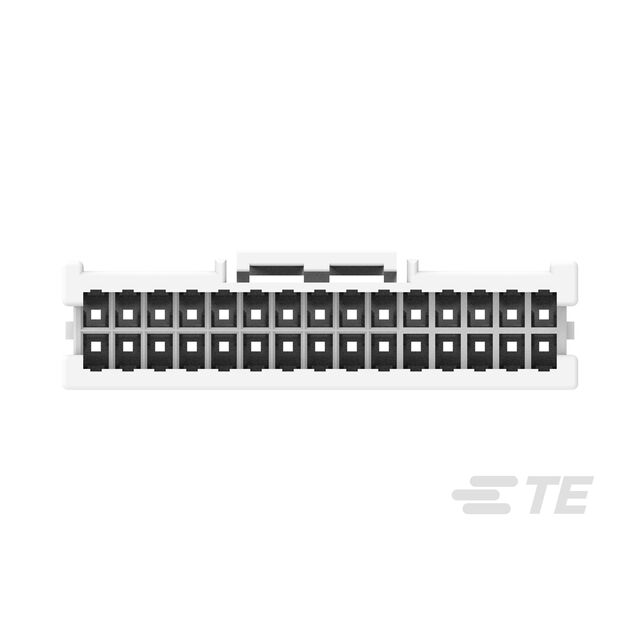

TE Connectivity Raychem Cable Protection 3-2324579-0	Plug	Crimp	2	Natural	Polyamide (PA66) Nylon 6/6	0.098 in	2.5 mm	Free Hanging (In-Line)	Contacts Not Included	Latch Holder	30	0.098 in	2.5 mm	Female Socket	105 ░C	-55 °C

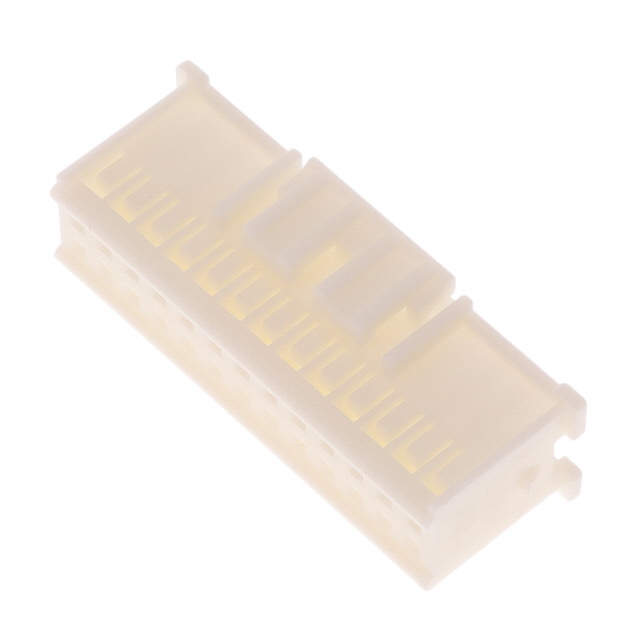

TE Connectivity Raychem Cable Protection 2-2324579-6	Plug	Crimp	2	Natural	Polyamide (PA66) Nylon 6/6	0.098 in	2.5 mm	Free Hanging (In-Line)		Latch Holder	26	0.098 in	2.5 mm	Female Socket	105 ░C	-55 °C

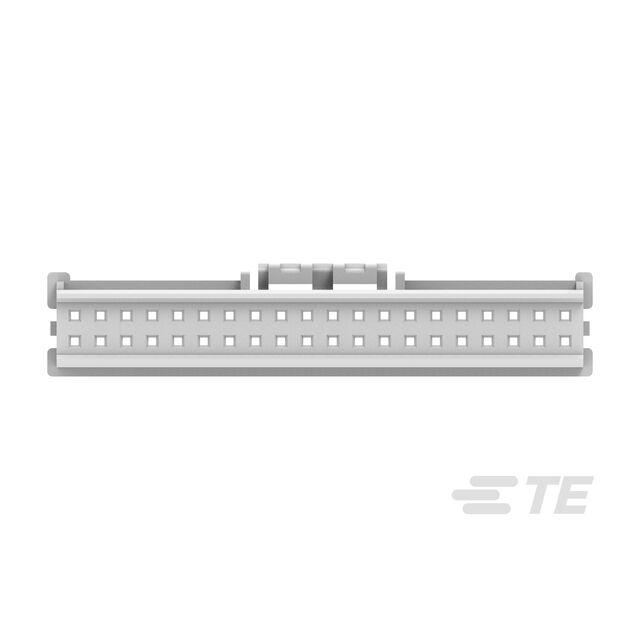

TE Connectivity Raychem Cable Protection 4-2324579-0	Plug	Crimp	2	Natural	Polyamide (PA66) Nylon 6/6	0.098 in	2.5 mm	Free Hanging (In-Line)		Latch Holder	40	0.098 in	2.5 mm	Female Socket	105 ░C	-55 °C

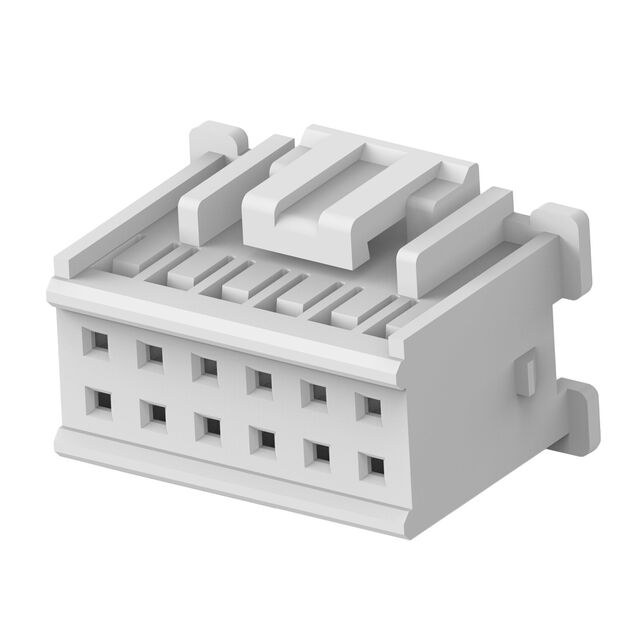

TE Connectivity Raychem Cable Protection 1-2324579-2	Plug	Crimp	2	Natural	Polyamide (PA66) Nylon 6/6	0.098 in	2.5 mm	Free Hanging (In-Line)	Contacts Not Included	Locking Ramp	12	0.098 in	2.5 mm	Female Socket	105 ░C	-55 °C
TE Connectivity Raychem Cable Protection 3-2324579-4	Plug	Crimp	2	Natural	Polyamide (PA66) Nylon 6/6	0.098 in	2.5 mm	Free Hanging (In-Line)		Latch Holder	34	0.098 in	2.5 mm	Female Socket	105 ░C	-55 °C

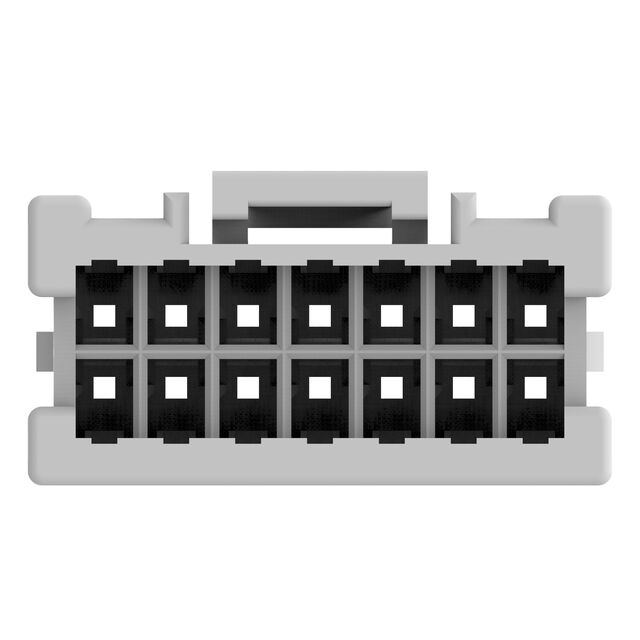

TE Connectivity Raychem Cable Protection 1-2324579-4	Plug	Crimp	2	Natural	Polyamide (PA66) Nylon 6/6	0.098 in	2.5 mm	Free Hanging (In-Line)	Contacts Not Included	Locking Ramp	14	0.098 in	2.5 mm	Female Socket	105 ░C	-55 °C
