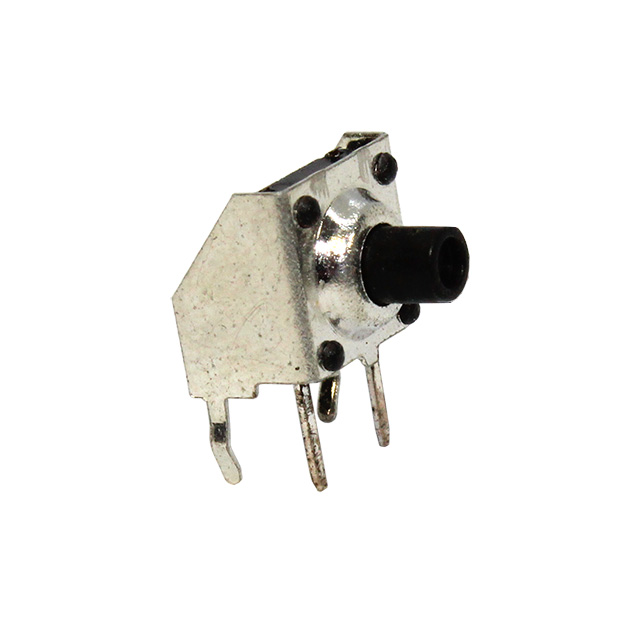

STV4.35 Series
Manufacturer: CIT Relay and Switch
Beta
⌘K
SWITCH TACTILE SPST-NO 0.05A 48V
| Part | Switch Travel | Actuator Material | Operating Force | Actuator Type | Outline [y] | Outline [x] | Actuator Length, Right Angle | Illumination | Contact Rating @ Voltage | Termination Style | Mounting Type | Actuator Orientation | Operating Temperature [Max] | Operating Temperature [Min] | Circuit | Switch Function |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 CIT Relay and Switch | 0.45 mm | Polybutylene Terephthalate (PBT) | 520 gf | Standard | 5.8 mm | 8.2 mm | 4.35 mm | Non-Illuminated | 0.05 A 48 VDC | PC Pin | Right Angle Through Hole | Side Actuated | 85 °C | -40 C | SPST-NO | Off-Mom |
CIT Relay and Switch | 0.45 mm | Polybutylene Terephthalate (PBT) | 0.2 kgf | Standard | 5.8 mm | 8.2 mm | 4.35 mm | Non-Illuminated | 0.05 A 48 VDC | PC Pin | Right Angle Through Hole | Side Actuated | 85 °C | -40 C | SPST-NO | Off-Mom |
CIT Relay and Switch | 0.45 mm | Polybutylene Terephthalate (PBT) | 260 gf | Standard | 5.8 mm | 8.2 mm | 4.35 mm | Non-Illuminated | 0.05 A 48 VDC | PC Pin | Right Angle Through Hole | Side Actuated | 85 °C | -40 C | SPST-NO | Off-Mom |
