9925 Series
Manufacturer: Belden Inc.
Beta
⌘K

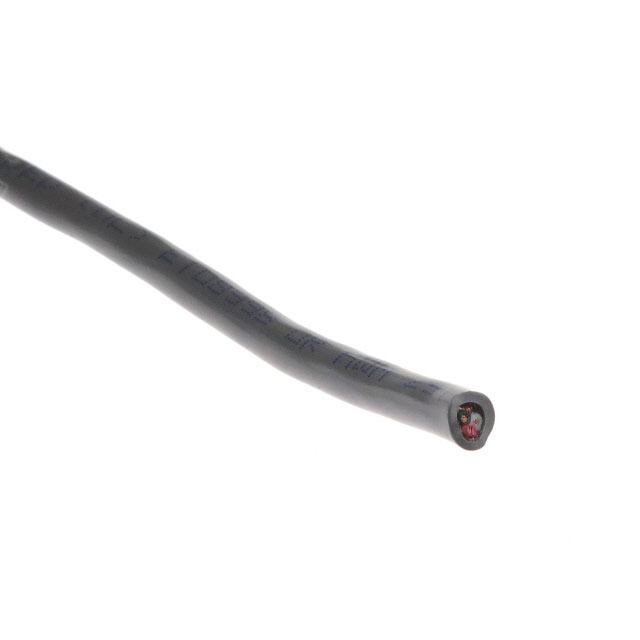

CABLE 3COND 24AWG CHROME SHLD
| Part | Shield Material | Shield Coverage | Jacket Color | Operating Temperature [Max] | Operating Temperature [Min] | Length [x] | Length [x] | Features | Conductor Strand [custom] | Conductor Strand [custom] | Usage | Conductor Insulation | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Shield Type | Wire Gauge | Conductor Material | Jacket (Insulation) Material | Number of Conductors | Cable Type | Ratings |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | Aluminum Copper Tinned | 65 % 100 % | Chrome | 80 °C | -30 ░C | 100 ft | 30.5 m | Drain Wire | 7 | 32 AWG | Computer | Foam Polyethylene (FPE) | 0.035 in | 0.889 mm | 0.209 in | 5.31 mm | Braid Foil | 24 AWG | Copper Tinned | Poly-Vinyl Chloride (PVC) | 3 | Multi-Conductor | UL Style 2919 |
