TPS8268180 Series
Manufacturer: Texas Instruments
Beta
⌘K

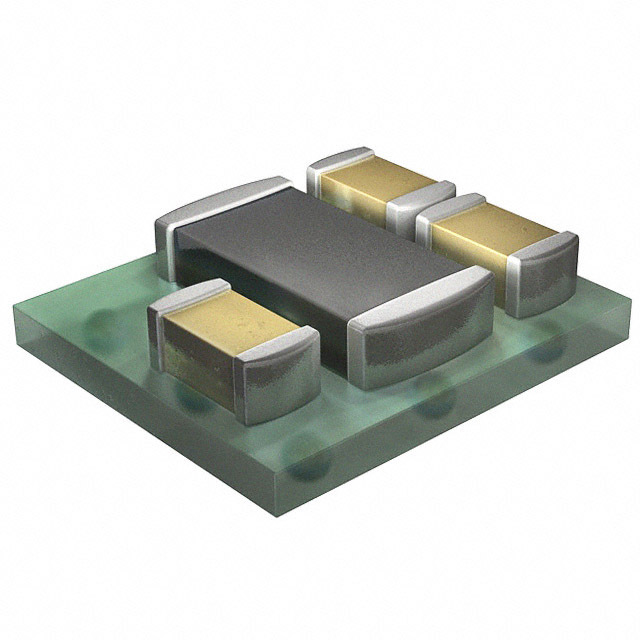

1.6-A, HIGH-EFFICIENCY MICROSIP™ STEP-DOWN CONVERTER MODULE
| Part | Type | Efficiency | Applications | Voltage - Output 1 | Operating Temperature [Max] | Operating Temperature [Min] | Package / Case | Current - Output (Max) [Max] | Number of Outputs | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [y] | Features | Voltage - Input (Max) [Max] | Voltage - Input (Min) [Min] | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Texas Instruments | Non-Isolated PoL Module | 90 % | ITE (Commercial) | 1.8 V | 85 °C | -40 C | 9-SMD Module | 1.6 A | 1 | 2.9 mm | 0.09 " | 0.11 in | 0.04 in | 1 mm | 2.3 mm | OCP OTP Remote On/Off UVLO | 5.5 V | 2.5 V | Surface Mount | 9-USIP |
Texas Instruments | Non-Isolated PoL Module | 90 % | ITE (Commercial) | 1.8 V | 85 °C | -40 C | 9-SMD Module | 1.6 A | 1 | 2.9 mm | 0.09 " | 0.11 in | 0.04 in | 1 mm | 2.3 mm | OCP OTP Remote On/Off UVLO | 5.5 V | 2.5 V | Surface Mount | 9-USIP |
