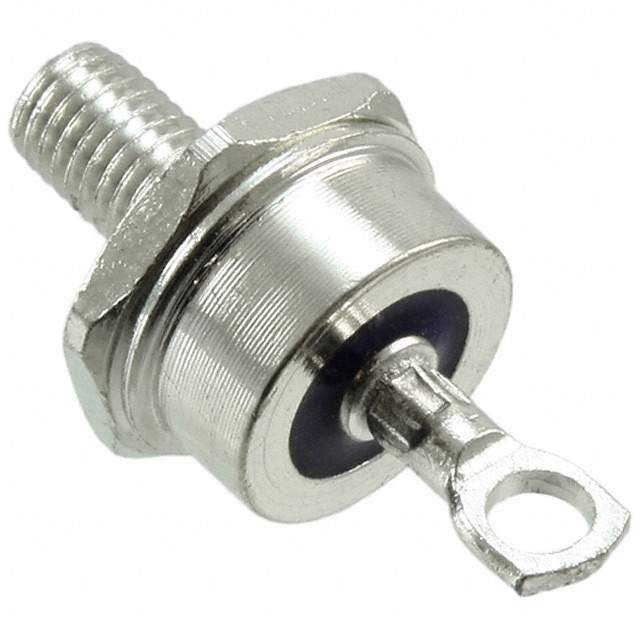

1N1188 Series

Catalog

DIODE GEN PURP 400V 40A DO5

Part	Mounting Type	Supplier Device Package	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]	Voltage - Forward (Vf) (Max) @ If [Max]	Speed [Min]	Current - Reverse Leakage @ Vr	Package / Case	Current - Average Rectified (Io)	Technology	Voltage - DC Reverse (Vr) (Max) [Max]
GeneSiC Semiconductor 1N1188A	Chassis Stud Mount	DO-5	200 C	-65 C	1.1 V	200 mA 500 ns	10 µA	DO-203AB DO-5 Stud	40 A	Standard	400 V
GeneSiC Semiconductor 1N1188	Chassis Stud Mount	DO-5	190 °C	-65 C		200 mA 500 ns	10 µA	DO-203AB DO-5 Stud	35 A	Standard	400 V
