RT6206 Series
Manufacturer: Richtek USA Inc.
Beta
⌘K

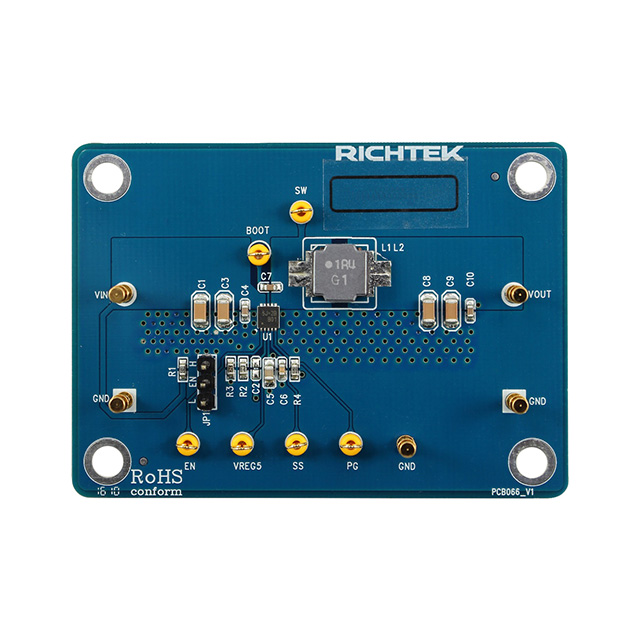

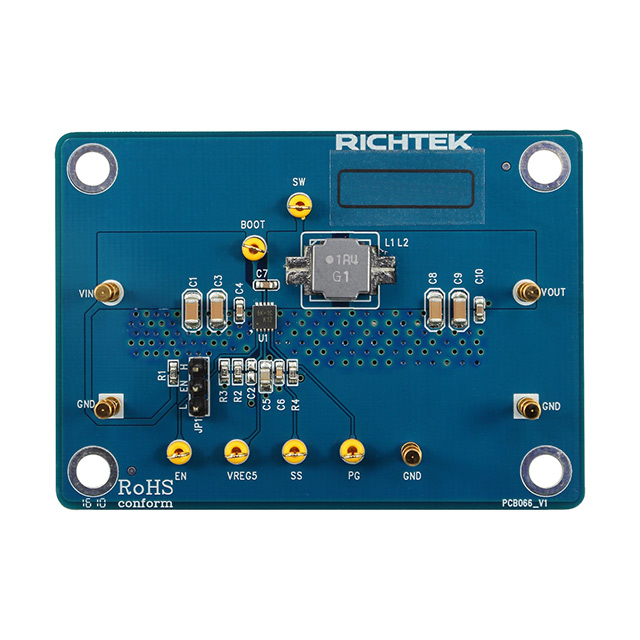

EVAL MODULE FOR RT6206AHGQW
| Part | Board Type | Outputs and Type | Outputs and Type | Supplied Contents | Main Purpose | Regulator Topology | Voltage - Output | Current - Output | Voltage - Input [Max] | Voltage - Input [Min] | Frequency - Switching | Contents | Utilized IC / Part | Voltage - Input (Min) [Min] | Voltage - Output (Max) [Max] | Package / Case | Package / Case [y] | Package / Case [x] | Output Type | Mounting Type | Output Configuration | Voltage - Input (Max) [Max] | Operating Temperature [Max] | Operating Temperature [Min] | Synchronous Rectifier | Supplier Device Package | Function | Number of Outputs | Topology |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Richtek USA Inc. | Fully Populated | 1 | 1 Non-Isolated Output Non-Isolated | Board(s) | DC/DC Step Down | Buck | 1.05 V | 5.5 A | 18 V | 4.5 V | 650 kHz | Board(s) | RT6206A | ||||||||||||||||
 Richtek USA Inc. | 5.5 A | 650 kHz | 4.5 V | 8 V | 8-SOIC Exposed Pad | 3.9 mm | 0.154 in | Adjustable | Surface Mount | Positive | 18 V | 85 C | -40 ¯C | 8-SOP-EP | Step-Down | 1 | Buck | ||||||||||||
 Richtek USA Inc. | Fully Populated | 1 | 1 Non-Isolated Output Non-Isolated | Board(s) | DC/DC Step Down | Buck | 1.05 V | 5.5 A | 18 V | 4.5 V | 650 kHz | Board(s) | RT6206B | ||||||||||||||||
 Richtek USA Inc. | 5.5 A | 650 kHz | 4.5 V | 8 V | 10-WFDFN Exposed Pad | Adjustable | Surface Mount | Positive | 18 V | 85 C | -40 ¯C | 10-WDFN (3x3) | Step-Down | 1 | Buck |
