FHNBBB Series

Catalog

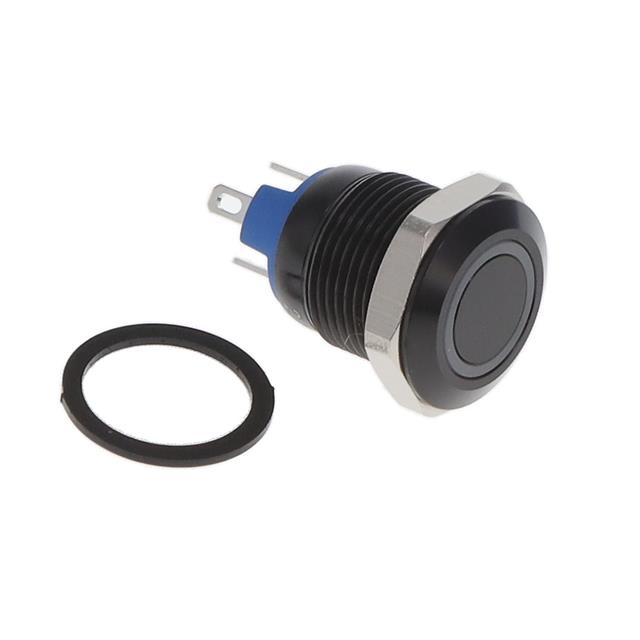

SWITCH PB SPST 2A 48V

Part	Mechanical Life	Switch Function	Electrical Life	Type	Current Rating (Amps)	Voltage Rating - DC	Circuit	Operating Temperature [Max]	Operating Temperature [Min]	Illumination Voltage (Nominal)	Mounting Type	Illumination Type, Color	Color - Actuator/Cap	Panel Cutout Dimensions [diameter]	Ingress Protection	Termination Style	Actuator Type	Actuator Marking
CIT Relay and Switch FHNBBBRGN	100000 Cycles	Off-Mom Off-On	50000 Cycles	Anti-Vandal Illuminated	2 A	48 V	SPST	55 °C	-25 °C	2.1 VDC 3.3 VDC	Panel Mount Front	Green/Red LED	Black	12 mm	IP67 - Dust Tight Waterproof	Solder Lug	Button Flush Round	No Marking
CIT Relay and Switch FHNBBBGN	100000 Cycles	Off-Mom	50000 Cycles	Anti-Vandal Illuminated	2 A	48 V	SPST	55 °C	-25 °C	3.3 VDC	Panel Mount Front	Green LED	Black	12 mm	IP67 - Dust Tight Waterproof	Solder Lug	Button Flush Round	No Marking
