VLD2UNN1 Series
Manufacturer: Carling Technologies
Beta
⌘K

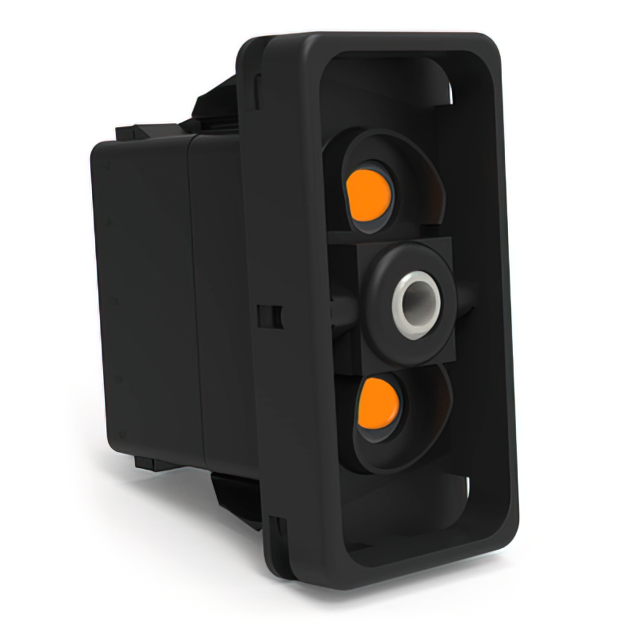

SWITCH ROCKER DPDT 20A 12V
| Part | Electrical Life | Mechanical Life | Current Rating (Amps) | Color - Actuator/Cap | Operating Temperature [Max] | Operating Temperature [Min] | Ingress Protection | Illumination Type, Color | Actuator Type | Switch Function | Illumination Voltage (Nominal) | Panel Cutout Dimensions [x] | Panel Cutout Dimensions [y] | Actuator Marking | Circuit | Termination Style | Voltage Rating - DC | Approval Agency | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Carling Technologies | 100000 Cycles | 100000 Cycles | 20 A | Black | 85 °C | -40 C | IP66 IP68 | Amber LED | Concave (Standard V) - Illuminated | Mom-Off-Mom | 12 VDC | 36.83 mm | 21.08 mm | No Marking | DPDT | Quick Connect - 0.250" (6.3mm) | 12 V | CSA UL VDE | Panel Mount Snap-In |
Carling Technologies | 100000 Cycles | 100000 Cycles | 20 A | Black | 85 °C | -40 C | IP66 IP68 | Amber LED | Concave (Standard V) - Illuminated | Mom-Off-Mom | 12 VDC | 36.83 mm | 21.08 mm | No Marking | DPDT | Quick Connect - 0.250" (6.3mm) | 12 V | CSA UL VDE | Panel Mount Snap-In |
 Carling Technologies | 100000 Cycles | 100000 Cycles | 20 A | 85 °C | -40 C | IP66 IP68 | Amber LED | Actuator Arm Cap Required Illuminated | Mom-Off-Mom | 12 VDC | 36.83 mm | 21.08 mm | Varies by Cap | DPDT | Quick Connect - 0.250" (6.3mm) | 12 V | CSA UL VDE | Panel Mount Snap-In |
