C2225C Series
Manufacturer: KEMET
Catalog

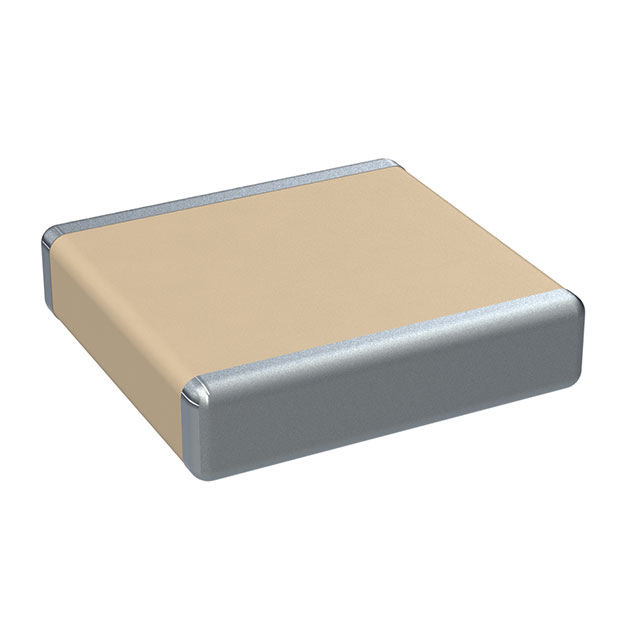

CAP CER 0.015UF 200V C0GNP0 2225
...
| Part | Features | Voltage - Rated | Thickness (Max) | Thickness (Max) [Max] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Applications | Package / Case | Package / Case | Operating Temperature [Min] | Operating Temperature [Max] | Temperature Coefficient | Tolerance | Mounting Type | Capacitance | Voltage - Rated | Thickness (Max) [Max] | Thickness (Max) [Max] [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 KEMET | Low ESL | 200 V | 1.55 mm | 0.061 in | 0.252 in | 5.6 mm | 0.22 in | 6.4 mm | General Purpose | 2225 | 5763 Metric | -55 °C | 125 °C | C0G NP0 | 5 % | MLCC Surface Mount | 15000 pF | |||

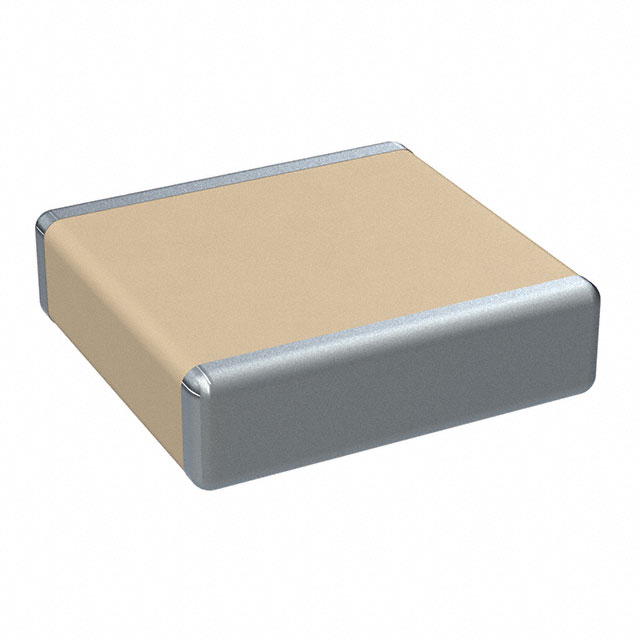

 KEMET | High Voltage Low ESL | 2.5 kV | 1.8 mm | 0.071 " | 0.252 in | 5.6 mm | 0.22 in | 6.4 mm | General Purpose | 2225 | 5763 Metric | -55 °C | 125 °C | C0G NP0 | 2 % | MLCC Surface Mount | 910 pF | 2.5 kV | ||
KEMET | High Voltage Low ESL | 2000 V | 0.106 " | 0.252 in | 5.6 mm | 0.22 in | 6.4 mm | General Purpose | 2225 | 5763 Metric | -55 °C | 125 °C | C0G NP0 | 5 % | MLCC Surface Mount | 3900 pF | 2 kV | 2.7 mm | ||
KEMET | Low ESL | 100 V | 1.55 mm | 0.061 in | 0.252 in | 5.6 mm | 0.22 in | 6.4 mm | General Purpose | 2225 | 5763 Metric | -55 °C | 125 °C | C0G NP0 | 5 % | MLCC Surface Mount | 0.027 µF | |||
KEMET | High Voltage Low ESL | 500 V | 0.106 " | 0.252 in | 5.6 mm | 0.22 in | 6.4 mm | General Purpose | 2225 | 5763 Metric | -55 °C | 125 °C | C0G NP0 | 5 % | MLCC Surface Mount | 0.039 µF | 2.7 mm | |||
 KEMET | Low ESL | 50 VDC | 1.55 mm | 0.061 in | 0.252 in | 5.6 mm | 0.22 in | 6.4 mm | General Purpose | 2225 | 5763 Metric | -55 °C | 125 °C | C0G NP0 | 5 % | MLCC Surface Mount | 10000 pF | |||
KEMET | High Voltage Low ESL | 1.8 mm | 0.071 " | 0.252 in | 5.6 mm | 0.22 in | 6.4 mm | General Purpose | 2225 | 5763 Metric | -55 °C | 125 °C | C0G NP0 | 5 % | MLCC Surface Mount | 470 pF | ||||
KEMET | Low ESL | 50 VDC | 1.55 mm | 0.061 in | 0.252 in | 5.6 mm | 0.22 in | 6.4 mm | General Purpose | 2225 | 5763 Metric | -55 °C | 125 °C | C0G NP0 | 1 % | MLCC Surface Mount | 0.033 çF | |||
KEMET | High Voltage Low ESL | 2.5 kV | 1.8 mm | 0.071 " | 0.252 in | 5.6 mm | 0.22 in | 6.4 mm | General Purpose | 2225 | 5763 Metric | -55 °C | 125 °C | C0G NP0 | 5 % | MLCC Surface Mount | 820 pF | 2.5 kV | ||

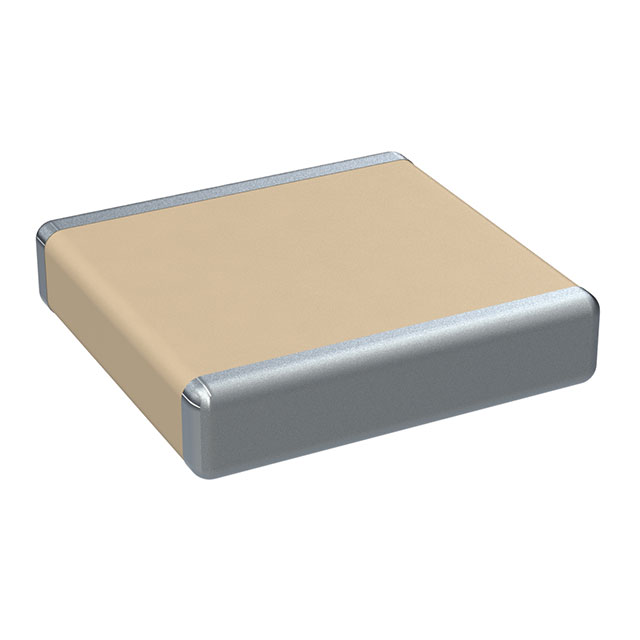

 KEMET | 100 V | 1.45 mm | 0.252 in | 5.6 mm | 0.22 in | 6.4 mm | Bypass Decoupling High Reliability | 2225 | 5763 Metric | -55 °C | 125 °C | X7R | 5 % | MLCC Surface Mount | 1 µF | 0.057 in |
