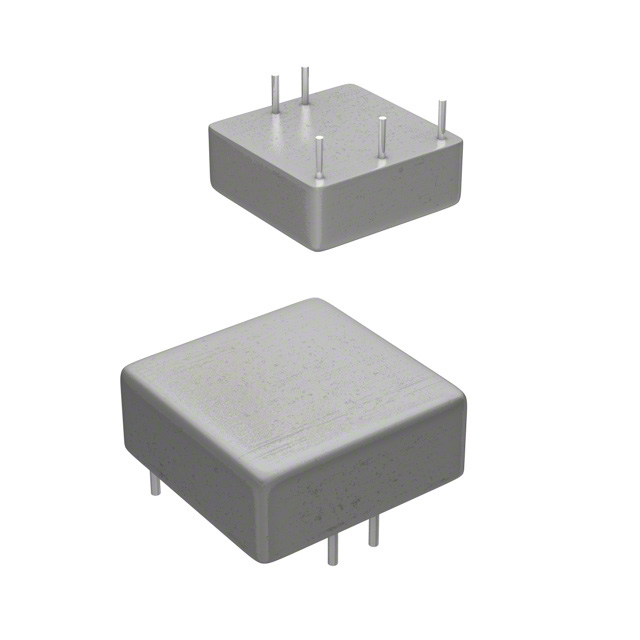

RP15-2412 Series
Manufacturer: Recom Power
Beta
⌘K
15W DC/DC-CONVERTER POWERLINE 1"X1" 1.6KV REG 2:1 ROHS COMPLIANT: YES
| Part | Number of Outputs | Voltage - Input (Min) [Min] | Efficiency | Operating Temperature [Max] | Operating Temperature [Min] | Current - Output (Max) [Max] | Current - Output (Max) [Max] | Features | Voltage - Output 2 | Voltage - Output 1 | Type | Control Features | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Voltage - Input (Max) [Max] | Applications | Voltage - Isolation | Mounting Type | Power (Watts) | Package / Case |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Recom Power | 2 | 18 V | 88 % | 85 °C | -40 C | 625 mA | 625 mA | OCP OVP Remote On/Off SCP | -12 V | 12 V | Isolated Module | Active Low Enable | 0.39 " | 9.9 mm | 1 in | 1 " | 25.4 mm | 25.4 mm | 36 V | ITE (Commercial) | 1.6 kV | Through Hole | 15 W | 6-DIP Module 4 Leads |
