S04B-XAS Series
Manufacturer: JST Sales America Inc.
Beta
⌘K

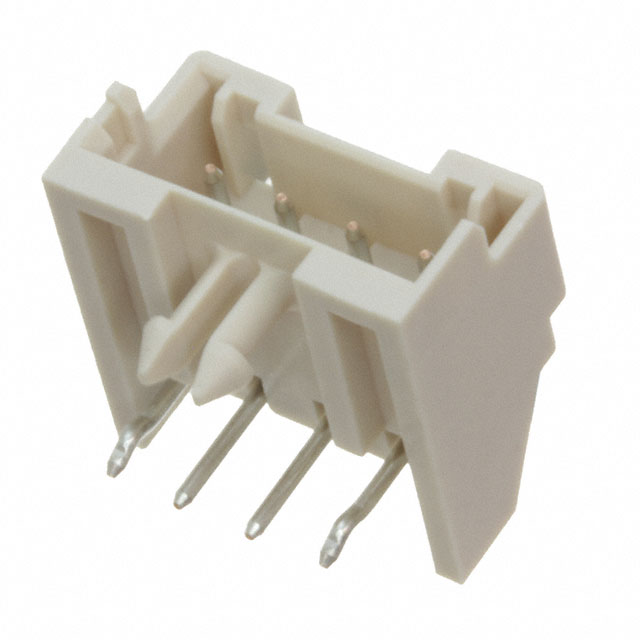

CONN HEADER R/A 4POS 2.5MM
| Part | Contact Material | Pitch - Mating | Pitch - Mating | Current Rating (Amps) | Insulation Material | Connector Type | Number of Positions Loaded | Operating Temperature [Max] | Operating Temperature [Min] | Insulation Color | Contact Type | Contact Shape | Shrouding | Style | Number of Rows | Insulation Height [z] | Insulation Height | Contact Length - Post [x] | Contact Length - Post [x] | Mounting Type | Number of Positions | Fastening Type | Voltage Rating | Contact Finish - Post | Termination | Material Flammability Rating | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 JST Sales America Inc. | Copper Alloy | 2.5 mm | 0.098 in | 3 A | Glass Filled Nylon 6/6 Polyamide (PA66) | Header | All | 85 °C | -25 °C | Natural | Male Pin | Circular | Shrouded - 4 Wall | Board to Cable/Wire | 1 | 0.299 " | 7.6 mm | 0.126 " | 3.2 mm | Right Angle Through Hole | 4 | Locking Ramp | 250 V | Tin | Solder | UL94 V-0 | |
 JST Sales America Inc. | Copper Alloy | 2.5 mm | 0.098 in | 3 A | Glass Filled Nylon 6/6 Polyamide (PA66) | Header | All | 85 °C | -25 °C | Natural | Male Pin | Circular | Shrouded - 4 Wall | Board to Cable/Wire | 1 | 0.299 " | 7.6 mm | 0.126 " | 3.2 mm | Right Angle Through Hole | 4 | Locking Ramp | 250 V | Tin | Press-Fit Solder | UL94 V-0 | Board Lock |
