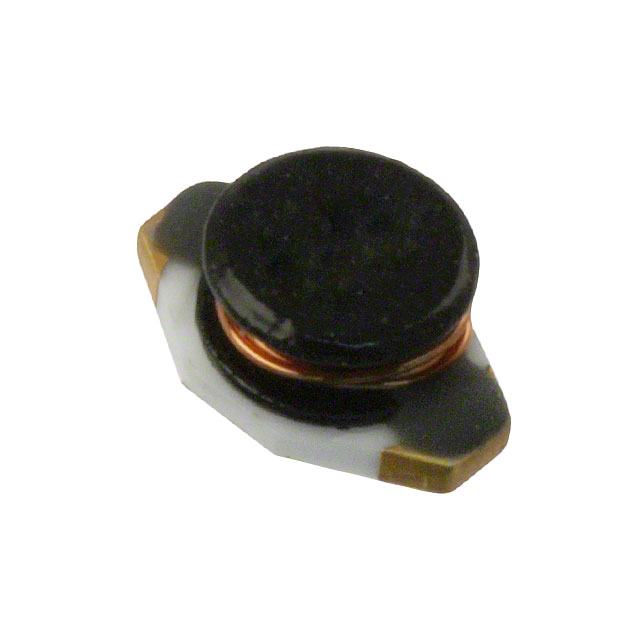

SDR6603 Series

Catalog

3806X4.45X2.92MM,2.2UH20%2.4A,SHDSMD /TAPE & REEL - 7" REEL

Part	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Frequency - Self Resonant	DC Resistance (DCR)	Current - Saturation (Isat)	Current Rating (Amps)	Mounting Type	Type	Package / Case	Inductance Frequency - Test	Tolerance	Operating Temperature [Max]	Operating Temperature [Min]	Material - Core	Q @ Freq	Shielding	Inductance	Q @ Freq [custom]	Q @ Freq [custom]	DC Resistance (DCR) [Max]
Bourns Inc. SDR6603-2R2M	0.26 in	4.45 mm	0.175 "	6.6 mm	90 MHz	70 mOhm	2.3 A	2.4 A	Surface Mount	Drum Core Wirewound	Nonstandard	100 kHz	20 %	125 °C	-40 C	Ferrite	7.96 MHz 18	Unshielded	2.2 µH
Bourns Inc. SDR6603-330M	0.26 in	4.45 mm	0.175 "	6.6 mm	15 MHz		580 mA	600 mA	Surface Mount	Drum Core Wirewound	Nonstandard	100 kHz	20 %	125 °C	-40 C	Ferrite		Unshielded	33 µH	2.52 MHz	24	510 mOhm
Bourns Inc. SDR6603-101M	0.26 in	4.45 mm	0.175 "	6.6 mm	9 MHz		310 mA	0.3 A	Surface Mount	Drum Core Wirewound	Nonstandard	100 kHz	20 %	125 °C	-40 C	Ferrite	29 796 kHz	Unshielded	100 µH			1.3 Ohm
Bourns Inc. SDR6603-151M	0.26 in	4.45 mm	0.175 "	6.6 mm	6 MHz		270 mA	0.25 A	Surface Mount	Drum Core Wirewound	Nonstandard	100 kHz	20 %	125 °C	-40 C	Ferrite	41 796 kHz	Unshielded	150 µH			2 Ohm
Bourns Inc. SDR6603-8R2M	0.26 in	4.45 mm	0.175 "	6.6 mm	40 MHz		1.15 A	1.3 A	Surface Mount	Drum Core Wirewound	Nonstandard	100 kHz	20 %	125 °C	-40 C	Ferrite	7.96 MHz 10	Unshielded	8.2 µH			160 mOhm
Bourns Inc. SDR6603-6R8M	0.26 in	4.45 mm	0.175 "	6.6 mm	45 MHz	130 mOhm	1.2 A	1.4 A	Surface Mount	Drum Core Wirewound	Nonstandard	100 kHz	20 %	125 °C	-40 C	Ferrite	7.96 MHz 15.5	Unshielded	6.8 µH
Bourns Inc. SDR6603-1R0M	0.26 in	4.45 mm	0.175 "	6.6 mm	130 MHz		2.9 A	2.9 A	Surface Mount	Drum Core Wirewound	Nonstandard	100 kHz	20 %	125 °C	-40 C	Ferrite		Unshielded	1 µH	7.96 MHz	20	50 mOhm
Bourns Inc. SDR6603-1R5M	0.26 in	4.45 mm	0.175 "	6.6 mm	115 MHz		2.6 A	2.8 A	Surface Mount	Drum Core Wirewound	Nonstandard	100 kHz	20 %	125 °C	-40 C	Ferrite		Unshielded	1.5 µH	7.96 MHz	19	50 mOhm
Bourns Inc. SDR6603-102M	0.26 in	4.45 mm	0.175 "	6.6 mm	2 MHz	13.8 Ohm	100 mA	70 mA	Surface Mount	Drum Core Wirewound	Nonstandard	100 kHz	20 %	125 °C	-40 C	Ferrite		Unshielded	1 mH	252 kHz	71
Bourns Inc. SDR6603-100M	0.26 in	4.45 mm	0.175 "	6.6 mm	35 MHz		1.1 A	1.1 A	Surface Mount	Drum Core Wirewound	Nonstandard	100 kHz	20 %	125 °C	-40 C	Ferrite	2.52 MHz 17	Unshielded	10 µH			160 mOhm
