11831 Series

Manufacturer: 3M (TC)

Catalog

TAPE COPPER FOIL SILV 0.47"X18YD

Part	Width [x]	Width [x]	Shelf Life	Tape Type	Usage	Length	Length	Length	Thickness - Backing, Carrier	Thickness - Backing, Carrier	Thickness - Backing, Carrier	Shelf Life Start	Adhesive	Backing, Carrier	Color	Thickness - Adhesive	Thickness - Adhesive	Thickness - Adhesive	Thickness	Thickness	Thickness	Storage/Refrigeration Temperature [Max]	Storage/Refrigeration Temperature [Min]	Width	Width	Width	Width	Length [x]	Thickness - Overall	Thickness - Overall	Operating Temperature [Min]	Operating Temperature [Max]	Type	Material
3M (TC) 1183 C12MMX16,5MM	0.47 in	12 mm	60 Months	Copper Foil	EMI Shielding	54 ft	16.5 m	18 yd	0.0014 in	1.4 mils	0.035 mm	Date of Manufacture	Conductive Acrylic	Copper Foil Tin Plated	Silver
3M (TC) 1183 7.7X18YD	7.7 in	195.58 mm	60 Months	Copper Foil	EMI Shielding	54 ft	16.5 m	18 yd	0.0014 in	1.4 mils	0.035 mm	Date of Manufacture	Conductive Acrylic	Copper Foil Tin Plated	Silver

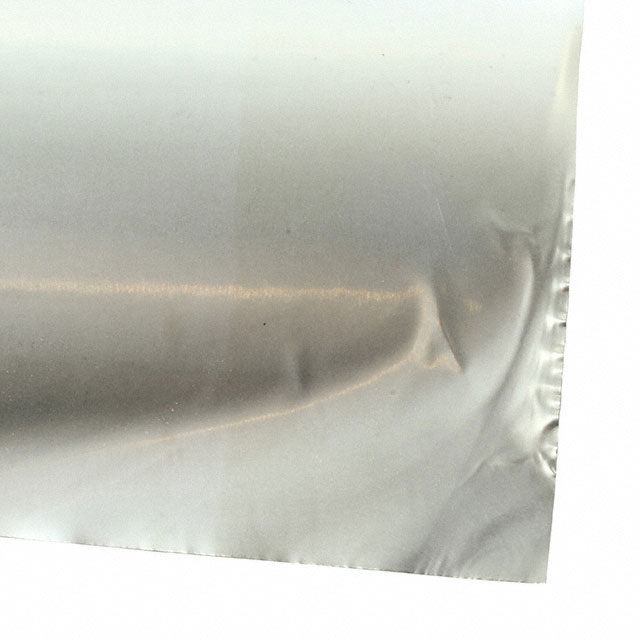

3M (TC) 1183-23X18YD	23 in	584.2 mm	60 Months	Copper Foil	EMI/RFI Shielding	54 ft	16.5 m	18 yd	0.0014 in	1.4 mils	0.036 mm	Date of Manufacture	Acrylic	Copper Foil	Silver	0.0013 "	1.3 mils	0.033 mm	0.068 mm	0.0027 "	2.7 mils	27 °C 80 °F	10 °C

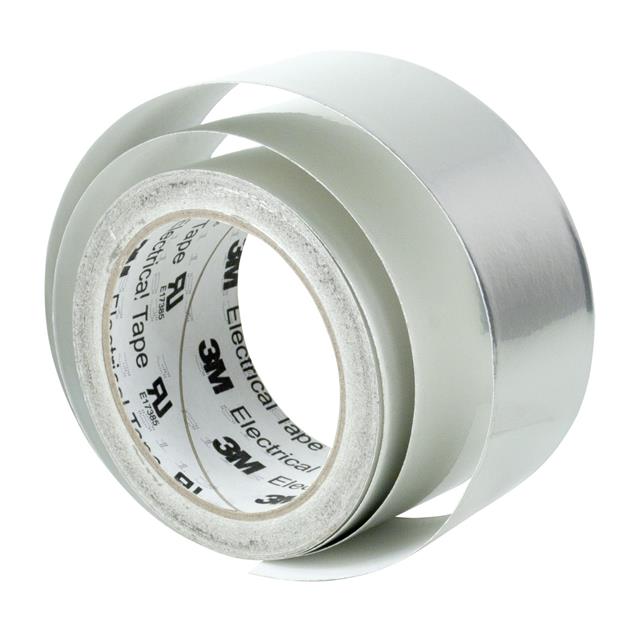

3M (TC) 1183LOG 23"X18YD	23 in	584.2 mm	60 Months	Copper Foil	EMI Shielding	54 ft	16.5 m	18 yd	0.0014 in	1.4 mils	0.035 mm	Date of Manufacture	Conductive Acrylic	Copper Foil Tin Plated	Silver
3M (TC) 1183 41MM X 50M			60 Months	Copper Foil	EMI Shielding	164 ft	50 m	54.7 yds	0.0014 in	1.4 mils	0.035 mm	Date of Manufacture	Conductive Acrylic	Copper Foil Tin Plated	Silver									1.63 in 41.28 mm	1 5/8
3M (TC) 1183 19MMX16,5M			60 Months	Copper Foil	EMI Shielding	54 ft	16.5 m	18 yd	0.0014 in	1.4 mils	0.035 mm	Date of Manufacture	Conductive Acrylic	Copper Foil Tin Plated	Silver									0.75 in		19.05 mm	0.75 in

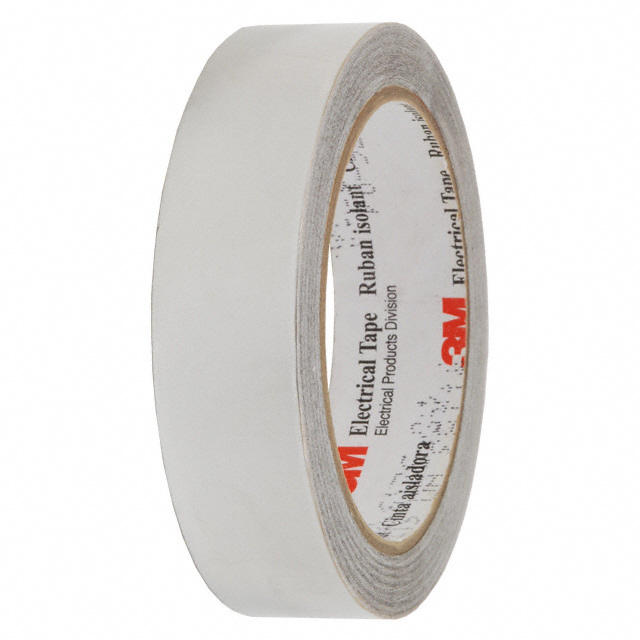

3M (TC) 1183 1"	1 in		60 Months			54 ft	16.5 m 91.44 cm					Date of Manufacture	Conductive Single Sided									27 °C 80 °F	10 °C				25.4 mm	36 "	0.003 "	0.07 mm	-40 °C	130 °C	Shielding Sheet Shielding Tape	Tin-Plated Copper Foil
3M (TC) 1183-3/4X18YD			60 Months			54 ft	16.5 m					Date of Manufacture	Conductive Single Sided									27 °C 80 °F	10 °C	0.75 in			19.1 mm		0.003 "	0.07 mm	-40 °C	130 °C	Shielding Tape	Tin-Plated Copper Foil
3M (TC) 1183 25MMX165MMC9			60 Months	Copper Foil	EMI Shielding	54 ft	16.5 m	18 yd	0.0014 in	1.4 mils	0.035 mm	Date of Manufacture	Conductive Acrylic	Copper Foil Tin Plated	Silver									0.98 "			25 mm
