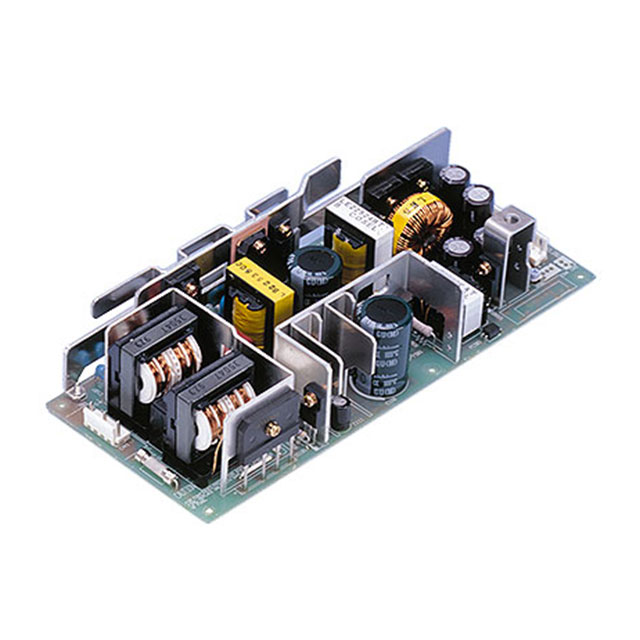

LEB225F Series

Catalog

AC/DC CONVERTER 5V 24V

Part	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Output 2	Efficiency	Mounting Type	Applications	Current - Output 1	Current - Output 2	Number of Outputs	Approval Agency	Voltage - Output 1	Type	Voltage - Isolation	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Power (Watts)	Features
Cosel USA, Inc. LEB225F-0524-T	70 °C	-10 °C	24 V	83 %	Chassis Mount	ITE (Commercial)	5 A	14 A	2	CE cURus TUV	5 V	Open Frame	3000 V	3.74 "	95 mm	45 mm	222 mm	8.74 in	1.77 in
Cosel USA, Inc. LEB225F-0512-Y	70 °C	-10 °C	12 V	79 %	Chassis Mount	ITE (Commercial)	5 A	20 A	2	CE cURus TUV	5 V	Open Frame	3000 V	3.74 "	95 mm	45 mm	222 mm	8.74 in	1.77 in
Cosel USA, Inc. LEB225F-0524-SNT	70 °C	-10 °C	24 V	83 %	Chassis Mount	ITE (Commercial)	5 A	14 A	2	CE cURus TUV	5 V	Enclosed	3000 V	3.74 "	95 mm	45 mm	222 mm	8.74 in	1.77 in
Cosel USA, Inc. LEB225F-0524-U	70 °C	-10 °C	24 V	83 %	Chassis Mount	ITE (Commercial)	5 A	14 A	2	CE cURus TUV	5 V	Open Frame	3000 V	3.74 "	95 mm	45 mm	222 mm	8.74 in	1.77 in
Cosel USA, Inc. LEB225F-0524	70 °C	-10 °C	24 V	83 %	Chassis Mount	ITE (Commercial)	5 A	9 A	2	CE cURus TUV	5 V	Open Frame								225 W	DC Input Capable Universal Input
Cosel USA, Inc. LEB225F-0524-SNY	70 °C	-10 °C	24 V	83 %	Chassis Mount	ITE (Commercial)	5 A	14 A	2	CE cURus TUV	5 V	Enclosed	3000 V	3.74 "	95 mm	45 mm	222 mm	8.74 in	1.77 in
Cosel USA, Inc. LEB225F-0512-SN	70 °C	-10 °C	12 V	79 %	Chassis Mount	ITE (Commercial)	5 A	20 A	2	CE cURus TUV	5 V	Enclosed	3000 V	3.74 "	95 mm	45 mm	222 mm	8.74 in	1.77 in
Cosel USA, Inc. LEB225F-0512-Z25	70 °C	-10 °C	12 V	79 %	Chassis Mount	ITE (Commercial)	5 A	20 A	2	CE cURus TUV	5 V	Open Frame	3000 V	3.74 "	95 mm	45 mm	222 mm	8.74 in	1.77 in
Cosel USA, Inc. LEB225F-0324	70 °C	-10 °C	24 V	83 %	Chassis Mount	ITE (Commercial)	5 A	14 A	2	CE cURus TUV	3.3 V	Open Frame	3000 V	3.74 "	95 mm	45 mm	222 mm	8.74 in	1.77 in
Cosel USA, Inc. LEB225F-0512-SNY	70 °C	-10 °C	12 V	79 %	Chassis Mount	ITE (Commercial)	5 A	20 A	2	CE cURus TUV	5 V	Enclosed	3000 V	3.74 "	95 mm	45 mm	222 mm	8.74 in	1.77 in
