122-87 Series

Manufacturer: Preci-Dip

Catalog

BOARD TO BOARD & MEZZANINE CONNECTORS

Part	Termination Post Length	Termination Post Length	Material Flammability Rating	Current Rating (Amps)	Contact Resistance	Features	Contact Finish Thickness - Mating	Contact Finish - Mating	Number of Positions or Pins (Grid)	Operating Temperature [Min]	Operating Temperature [Max]	Type	Type	Type	Pitch - Mating	Pitch - Mating	Mounting Type	Contact Finish - Post	Termination	Contact Material - Mating	Contact Material - Post [custom]	Housing Material	Pitch - Post	Pitch - Post	Number of Positions or Pins (Grid) [y]	Number of Positions or Pins (Grid) [x]	Number of Positions or Pins (Grid) [custom]	Number of Positions or Pins (Grid) [custom]	Number of Positions or Pins (Grid) [custom]	Type [custom]	Type [custom]

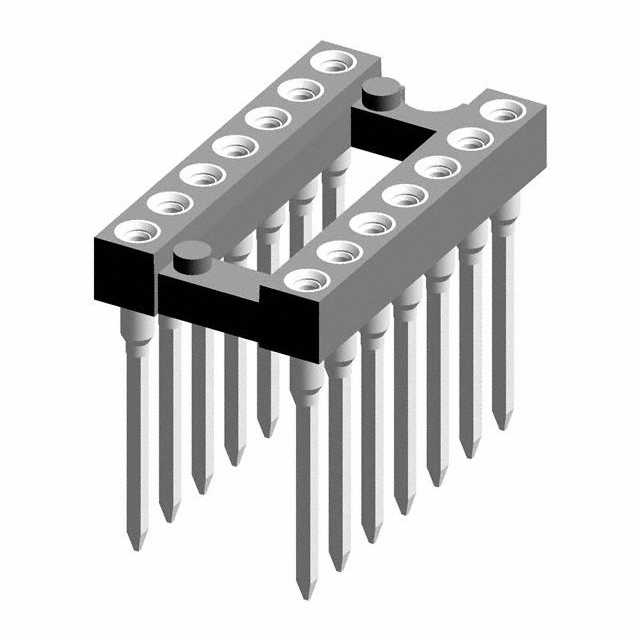

Preci-Dip 122-87-314-41-001101	9.4 mm	0.37 in	UL94 V-0	1 A	10 mOhm	Open Frame	Flash	Gold	14	-55 C	125 °C	7.62 mm	0.3 in	DIP	0.1 "	2.54 mm	Through Hole	Tin	Wire Wrap	Beryllium Copper	Brass	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	0.1 in	2.54 mm

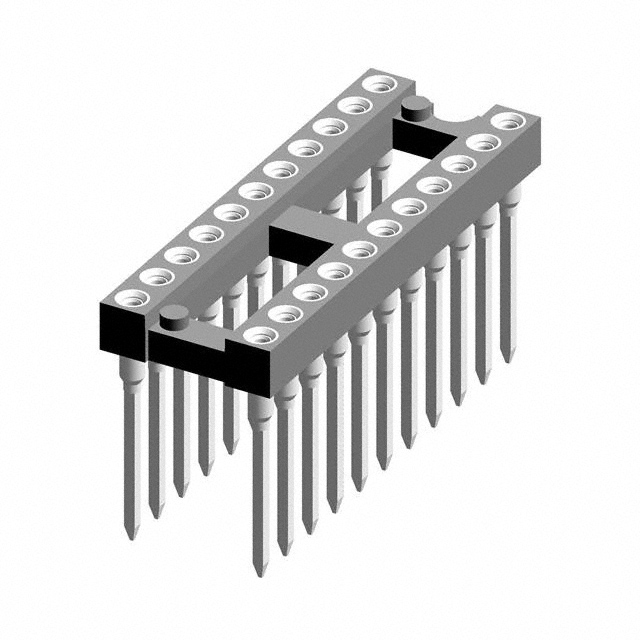

Preci-Dip 122-87-322-41-001101	9.4 mm	0.37 in	UL94 V-0	1 A	10 mOhm	Open Frame	Flash	Gold	22	-55 C	125 °C	7.62 mm	0.3 in	DIP	0.1 "	2.54 mm	Through Hole	Tin	Wire Wrap	Beryllium Copper	Brass	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	0.1 in	2.54 mm	11	2

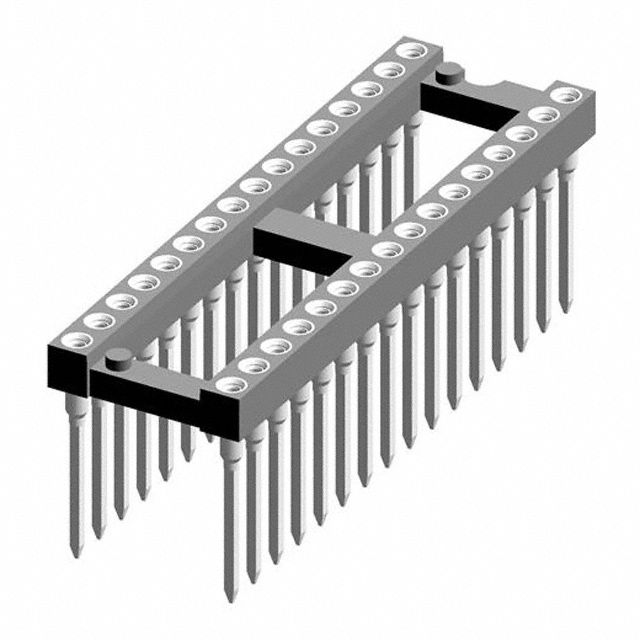

Preci-Dip 122-87-432-41-001101	9.4 mm	0.37 in	UL94 V-0	1 A	10 mOhm	Open Frame	Flash	Gold	32	-55 C	125 °C		0.4 in	DIP	0.1 "	2.54 mm	Through Hole	Tin	Wire Wrap	Beryllium Copper	Brass	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	0.1 in	2.54 mm

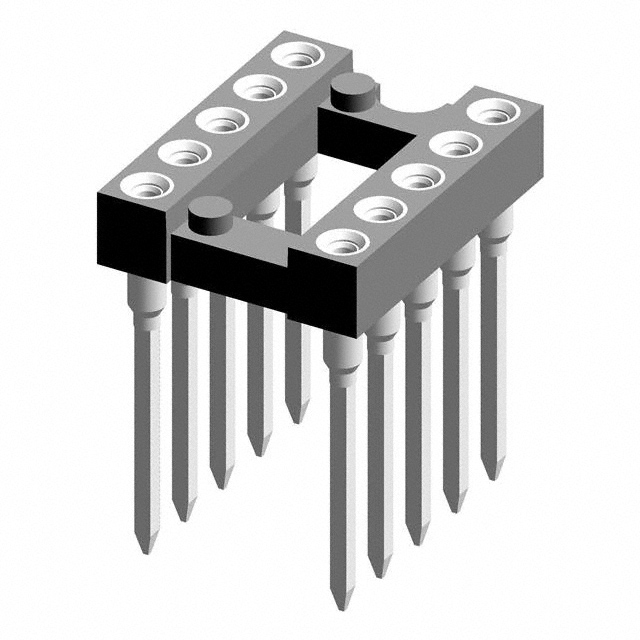

Preci-Dip 122-87-310-41-001101	9.4 mm	0.37 in	UL94 V-0	1 A	10 mOhm	Open Frame	Flash	Gold	10	-55 C	125 °C	7.62 mm	0.3 in	DIP	0.1 "	2.54 mm	Through Hole	Tin	Wire Wrap	Beryllium Copper	Brass	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	0.1 in	2.54 mm	5	2

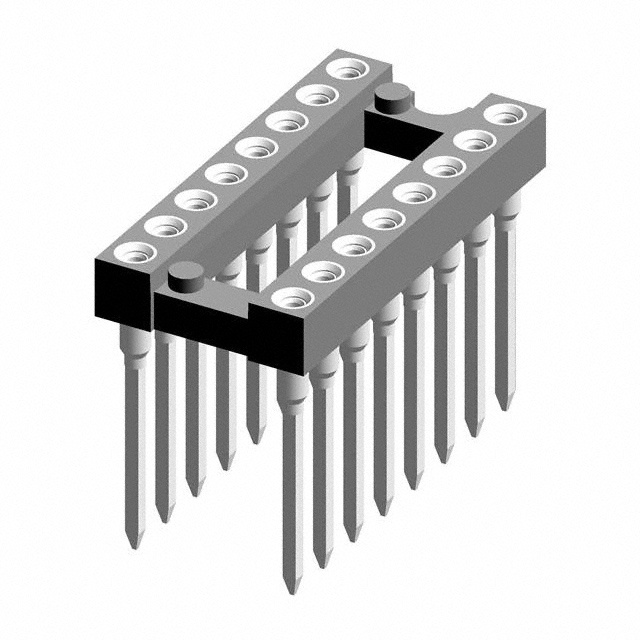

Preci-Dip 122-87-316-41-001101	9.4 mm	0.37 in	UL94 V-0	1 A	10 mOhm	Open Frame	Flash	Gold	16	-55 C	125 °C	7.62 mm	0.3 in	DIP	0.1 "	2.54 mm	Through Hole	Tin	Wire Wrap	Beryllium Copper	Brass	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	0.1 in	2.54 mm			2	8

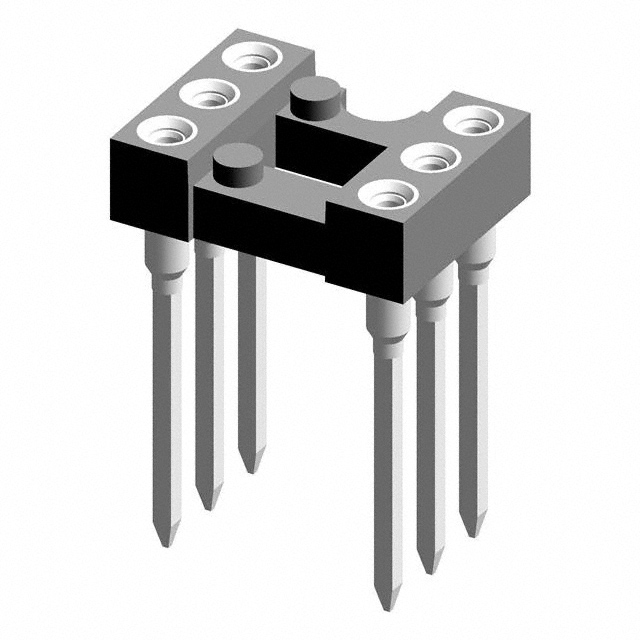

Preci-Dip 122-87-306-41-001101	9.4 mm	0.37 in	UL94 V-0	1 A	10 mOhm	Open Frame	Flash	Gold	6	-55 C	125 °C	7.62 mm	0.3 in	DIP	0.1 "	2.54 mm	Through Hole	Tin	Wire Wrap	Beryllium Copper	Brass	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	0.1 in	2.54 mm	3 positions or pins	2

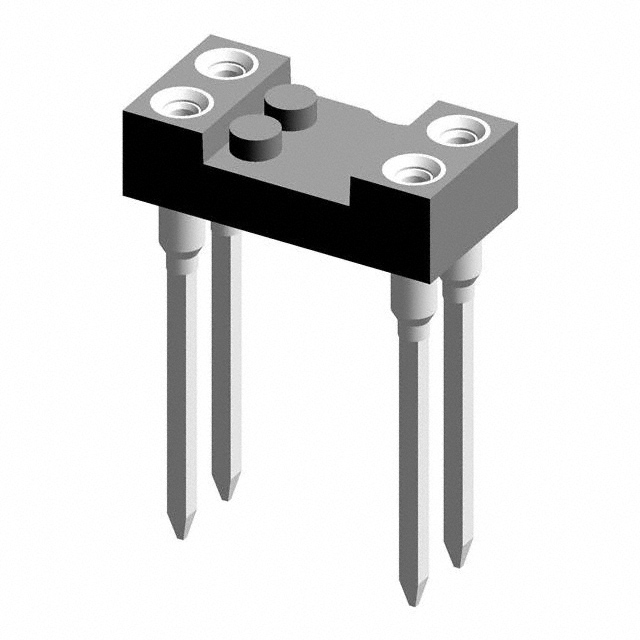

Preci-Dip 122-87-304-41-001101	9.4 mm	0.37 in	UL94 V-0	1 A	10 mOhm	Open Frame	Flash	Gold	4 pins	-55 C	125 °C	7.62 mm	0.3 in	DIP	0.1 "	2.54 mm	Through Hole	Tin	Wire Wrap	Beryllium Copper	Brass	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	0.1 in	2.54 mm					2 x 2

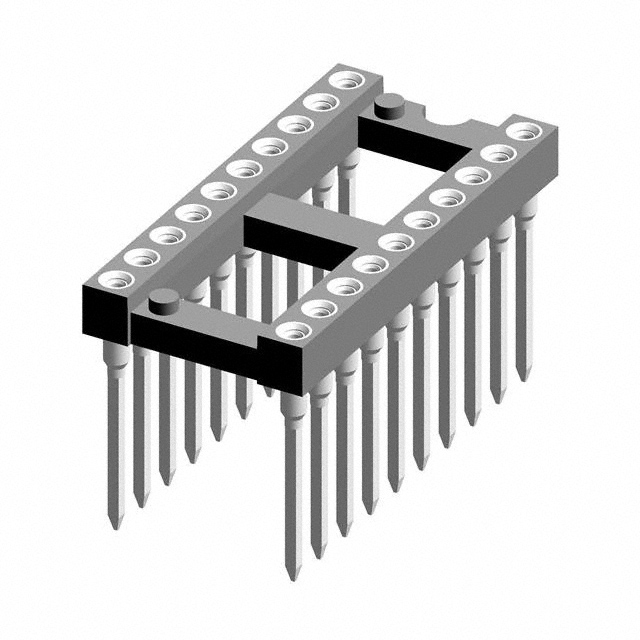

Preci-Dip 122-87-420-41-001101	9.4 mm	0.37 in	UL94 V-0	1 A	10 mOhm	Open Frame	Flash	Gold	20	-55 C	125 °C		0.4 in	DIP	0.1 "	2.54 mm	Through Hole	Tin	Wire Wrap	Beryllium Copper	Brass	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	0.1 in	2.54 mm

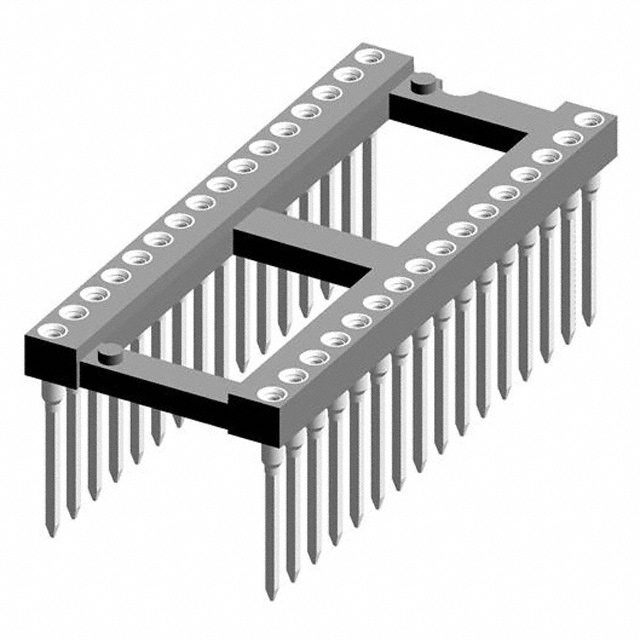

Preci-Dip 122-87-632-41-001101	9.4 mm	0.37 in	UL94 V-0	1 A	10 mOhm	Open Frame	Flash	Gold	32	-55 C	125 °C			DIP	0.1 "	2.54 mm	Through Hole	Tin	Wire Wrap	Beryllium Copper	Brass	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	0.1 in	2.54 mm						15.24 mm	0.6 in

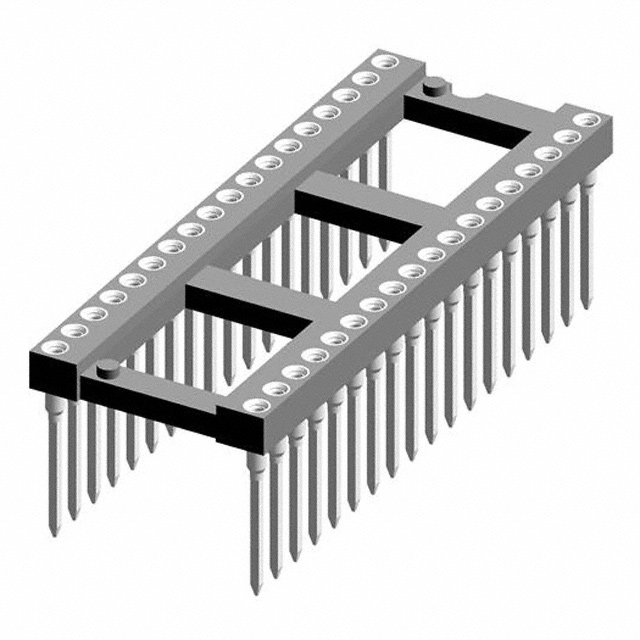

Preci-Dip 122-87-636-41-001101	9.4 mm	0.37 in	UL94 V-0	1 A	10 mOhm	Open Frame	Flash	Gold	36	-55 C	125 °C			DIP	0.1 "	2.54 mm	Through Hole	Tin	Wire Wrap	Beryllium Copper	Brass	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	0.1 in	2.54 mm						15.24 mm	0.6 in
