1747145 Series

Catalog

CONN HEADER R/A 3POS 10.16MM

Part	Pitch - Mating	Pitch - Mating	Voltage Rating	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Material Flammability Rating	Fastening Type	Operating Temperature [Max]	Operating Temperature [Min]	Style	Applications	Mounting Type	Connector Type	Contact Length - Post [x]	Contact Length - Post [x]	Termination	Contact Shape	Insulation Height	Insulation Height	Insulation Material	Shrouding	Contact Finish - Post	Contact Material	Number of Positions Loaded	Features	Contact Finish - Mating	Contact Type	Number of Rows	Current Rating (Amps)	Insulation Color	Number of Positions

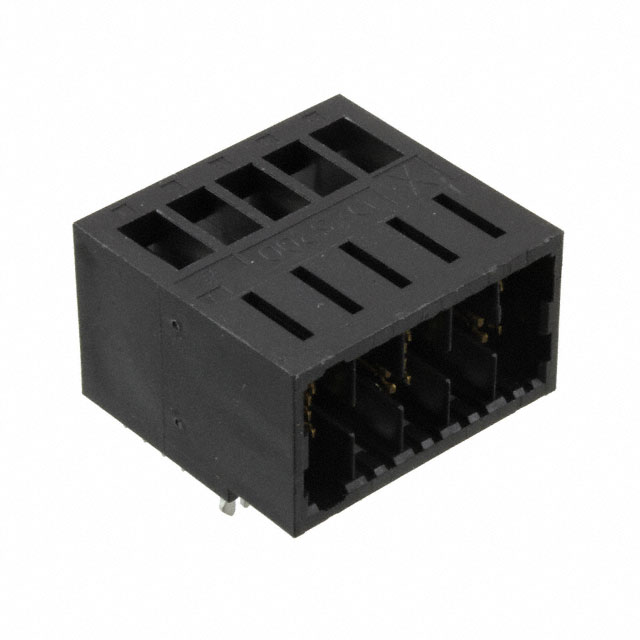

TE Connectivity Raychem Cable Protection 5-1747145-3	10.16 mm	0.4 in	600 V	2 çm	78.7 çin	0.203 Ám	8 Áin	UL94 V-0	Detent Lock	105 ░C	-55 °C	Board to Cable/Wire	General Purpose Industrial	Through Hole Right Angle	Header	0.15 in	3.81 mm	Solder	Rectangular	0.63 in	16 mm	Glass Filled Polyester Thermoplastic	Shrouded - 4 Wall	Tin	Copper Alloy	All	Board Guide Board Lock	Gold	Tab	1	30 A	Black
TE Connectivity Raychem Cable Protection 5-1747145-4	10.16 mm	0.4 in	600 V	2 çm	78.7 çin	0.203 Ám	8 Áin	UL94 V-0	Detent Lock	105 ░C	-55 °C	Board to Cable/Wire	General Purpose Industrial	Through Hole Right Angle	Header	0.15 in	3.81 mm	Solder	Rectangular	0.63 in	16 mm	Glass Filled Polyester Thermoplastic	Shrouded - 4 Wall	Tin	Copper Alloy	All	Board Guide Board Lock	Gold	Tab	1	30 A	Black	4
