TPS2552-1 Series

0.075-1.7A adj. ILIMIT, 2.5-6.5V, 85mΩ USB power switch, active-low, latch-off, reverse blocking

Catalog

0.075-1.7A adj. ILIMIT, 2.5-6.5V, 85mΩ USB power switch, active-low, latch-off, reverse blocking

Part	Type	Utilized IC / Part	Primary Attributes [Min]	Primary Attributes [Max]	Supplied Contents	Secondary Attributes	Function	Input Type	Ratio - Input:Output [custom]	Features	Supplier Device Package	Interface	Output Type	Number of Outputs	Current - Output (Max) [Max]	Voltage - Load [Max]	Voltage - Load [Min]	Switch Type	Rds On (Typ)	Operating Temperature [Max]	Operating Temperature [Min]	Fault Protection	Mounting Type	Output Configuration	Package / Case	Contents

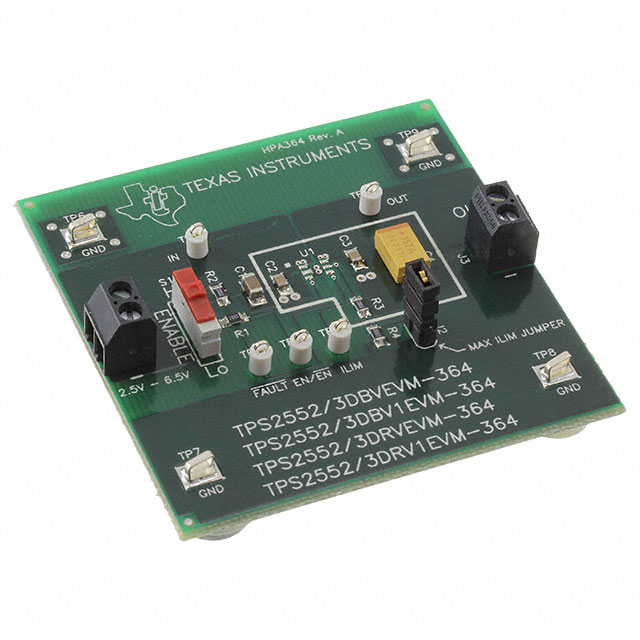

Texas Instruments TPS2552DRV1EVM-364	Power Management	TPS2552-1	2.5 V	6.5 V	Board(s)	Overvoltage Short-Circuit Thermal Undervoltage Protection	Power Distribution Switch (Load Switch)
Texas Instruments TPS2552DRVT								Inverting	1:1	Slew Rate Controlled Status Flag	6-WSON (2x2)	On/Off	N-Channel	1	1.5 A	6.5 V	2.5 V	General Purpose	100 mOhm	150 °C	-40 °C	Current Limiting (Adjustable) Over Temperature UVLO	Surface Mount	High Side
Texas Instruments TPS2552DRVT-1								Inverting	1:1	Slew Rate Controlled Status Flag	6-WSON (2x2)	On/Off	N-Channel	1	1.5 A	6.5 V	2.5 V	General Purpose	100 mOhm	150 °C	-40 °C	Current Limiting (Adjustable) Over Temperature UVLO	Surface Mount	High Side
Texas Instruments TPS2552DBVT								Inverting	1:1	Slew Rate Controlled Status Flag	SOT-23-6	On/Off	N-Channel	1	1.5 A	6.5 V	2.5 V	General Purpose	85 mOhm	150 °C	-40 °C	Current Limiting (Adjustable) Over Temperature UVLO	Surface Mount	High Side	SOT-23-6

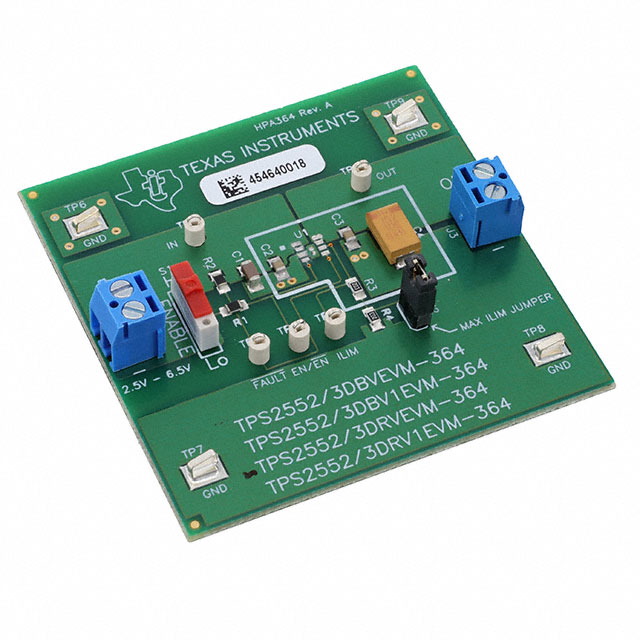

Texas Instruments TPS2552DRVEVM-364	Power Management	TPS2552	2.5 V	6.5 V	Board(s)	Overvoltage Short-Circuit Thermal Undervoltage Protection	Power Distribution Switch (Load Switch)
Texas Instruments TPS2552DBVR-1								Inverting	1:1	Slew Rate Controlled Status Flag	SOT-23-6	On/Off	N-Channel	1	1.5 A	6.5 V	2.5 V	General Purpose	85 mOhm	150 °C	-40 °C	Current Limiting (Adjustable) Over Temperature UVLO	Surface Mount	High Side	SOT-23-6

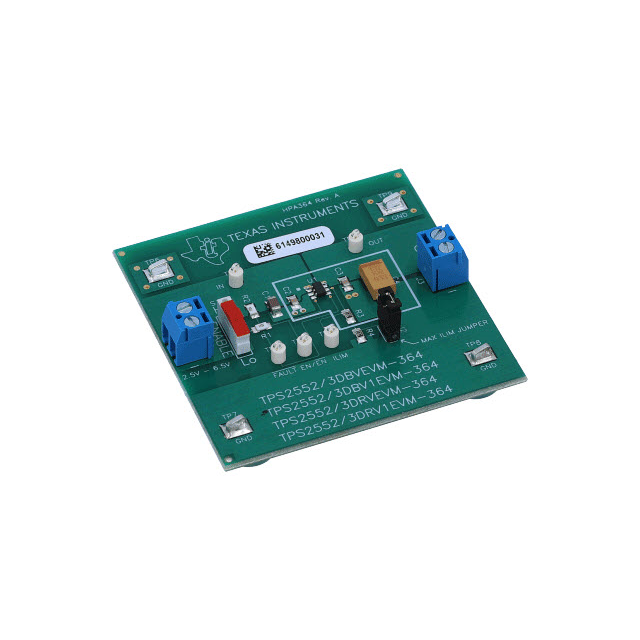

Texas Instruments TPS2552DBV1EVM-364	Power Management	TPS2552-1	2.5 V	6.5 V	Board(s)	Overvoltage Short-Circuit Thermal Undervoltage Protection	Power Distribution Switch (Load Switch)																			Board(s)
Texas Instruments TPS2552DDBVR								Inverting	1:1	Slew Rate Controlled Status Flag	SOT-23-6	On/Off	N-Channel	1	1.5 A	6.5 V	2.7 V	General Purpose	85 mOhm	150 °C	-40 °C	Current Limiting (Adjustable) Over Temperature UVLO	Surface Mount	High Side	SOT-23-6
Texas Instruments TPS2552DRVR								Inverting	1:1	Slew Rate Controlled Status Flag	6-WSON (2x2)	On/Off	N-Channel	1	1.5 A	6.5 V	2.5 V	General Purpose	100 mOhm	150 °C	-40 °C	Current Limiting (Adjustable) Over Temperature UVLO	Surface Mount	High Side
Texas Instruments TPS2552DBVT-1								Inverting	1:1	Slew Rate Controlled Status Flag	SOT-23-6	On/Off	N-Channel	1	1.5 A	6.5 V	2.5 V	General Purpose	85 mOhm	150 °C	-40 °C	Current Limiting (Adjustable) Over Temperature UVLO	Surface Mount	High Side	SOT-23-6

Catalog

0.075-1.7A adj. ILIMIT, 2.5-6.5V, 85mΩ USB power switch, active-low, latch-off, reverse blocking

Key Features

• Up to 1.5 A Maximum Load Current±6% Current-Limit Accuracy at 1.7 A (Typ)Meets USB Current-Limiting RequirementsBackwards Compatible with TPS2550/51Adjustable Current Limit, 75 mA–1700 mA (Typ)Constant-Current (TPS2552D and TPS2553D)TPS2552D (Enable Low) and TPS2553D (Enable High)Fast Overcurrent Response - 2 µs (Typ)85-mΩ High-Side MOSFET (DBV Package)Reverse Input-Output Voltage ProtectionOperating Range: 2.7 V to 6.5 VBuilt-in Soft-Start15 kV ESD Protection per IEC 61000-4-2 (With External Capacitance)UL Listed – File No. E169910 and NEMKO IEC60950-1-am1 ed2.0See theTI Switch PortfolioUp to 1.5 A Maximum Load Current±6% Current-Limit Accuracy at 1.7 A (Typ)Meets USB Current-Limiting RequirementsBackwards Compatible with TPS2550/51Adjustable Current Limit, 75 mA–1700 mA (Typ)Constant-Current (TPS2552D and TPS2553D)TPS2552D (Enable Low) and TPS2553D (Enable High)Fast Overcurrent Response - 2 µs (Typ)85-mΩ High-Side MOSFET (DBV Package)Reverse Input-Output Voltage ProtectionOperating Range: 2.7 V to 6.5 VBuilt-in Soft-Start15 kV ESD Protection per IEC 61000-4-2 (With External Capacitance)UL Listed – File No. E169910 and NEMKO IEC60950-1-am1 ed2.0See theTI Switch Portfolio

Description
