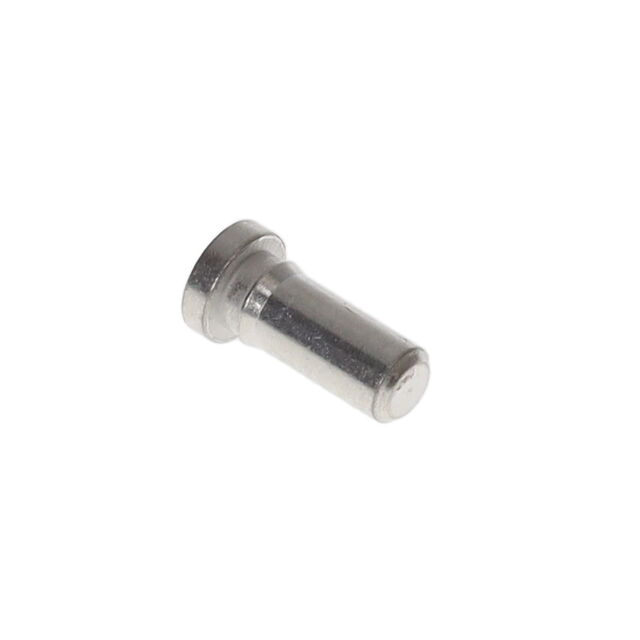

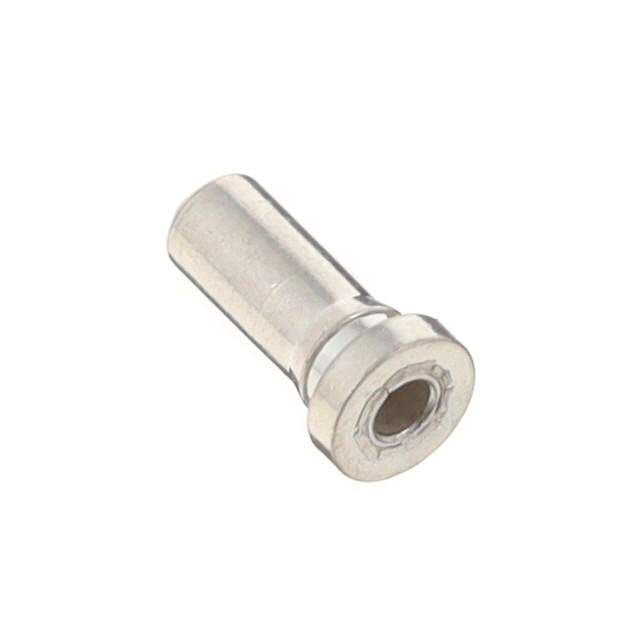

0345-0 Series

Manufacturer: Mill-Max Manufacturing Corp.

Catalog

CONN PIN RCPT

Part	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish	Pin Hole Diameter [diameter]	Pin Hole Diameter [diameter]	Contact Material	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Socket Depth	Socket Depth	Tail Type	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Termination	Flange Diameter [diameter]	Flange Diameter [diameter]	Length - Overall [x]	Length - Overall [x]	Contact Finish Thickness	Contact Finish Thickness
Mill-Max Manufacturing Corp. 0345-0-15-80-34-80-10-0	-55 C	125 °C	Tin	1.63 mm	0.064 in	Beryllium Copper	1.17 mm	0.81 mm	0.046 "	0.032 "	5.21 mm	0.205 in	No Tail	2.26 mm	0.089 in	Press-Fit	0.122 "	3.1 mm	0.24 in	6.1 mm	200 Áin	5.08 Ám
Mill-Max Manufacturing Corp. 0345-0-15-01-34-14-10-0	-55 C	125 °C	Gold	1.63 mm	0.064 in	Beryllium Copper	1.17 mm	0.81 mm	0.046 "	0.032 "	5.21 mm	0.205 in	No Tail	2.26 mm	0.089 in	Press-Fit	0.122 "	3.1 mm	0.24 in	6.1 mm	10 Áin	0.25 Ám
Mill-Max Manufacturing Corp. 0345-0-15-01-34-27-10-0	-55 C	125 °C	Gold	1.63 mm	0.064 in	Beryllium Copper	1.17 mm	0.81 mm	0.046 "	0.032 "	5.21 mm	0.205 in	No Tail	2.26 mm	0.089 in	Press-Fit	0.122 "	3.1 mm	0.24 in	6.1 mm	30 Áin	0.76 Ám
Mill-Max Manufacturing Corp. 0345-0-15-80-34-27-10-0	-55 C	125 °C	Gold	1.63 mm	0.064 in	Beryllium Copper	1.17 mm	0.81 mm	0.046 "	0.032 "	5.21 mm	0.205 in	No Tail	2.26 mm	0.089 in	Press-Fit	0.122 "	3.1 mm	0.24 in	6.1 mm	30 Áin	0.76 Ám
Mill-Max Manufacturing Corp. 0345-0-15-15-34-14-10-0	-55 C	125 °C	Gold	1.63 mm	0.064 in	Beryllium Copper	1.17 mm	0.81 mm	0.046 "	0.032 "	5.21 mm	0.205 in	No Tail	2.26 mm	0.089 in	Press-Fit	0.122 "	3.1 mm	0.24 in	6.1 mm	10 Áin	0.25 Ám
Mill-Max Manufacturing Corp. 0345-0-15-01-34-01-10-0	-55 C	125 °C	Tin-Lead	1.63 mm	0.064 in	Beryllium Copper	1.17 mm	0.81 mm	0.046 "	0.032 "	5.21 mm	0.205 in	No Tail	2.26 mm	0.089 in	Press-Fit	0.122 "	3.1 mm	0.24 in	6.1 mm	200 Áin	5.08 Ám
