788800 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

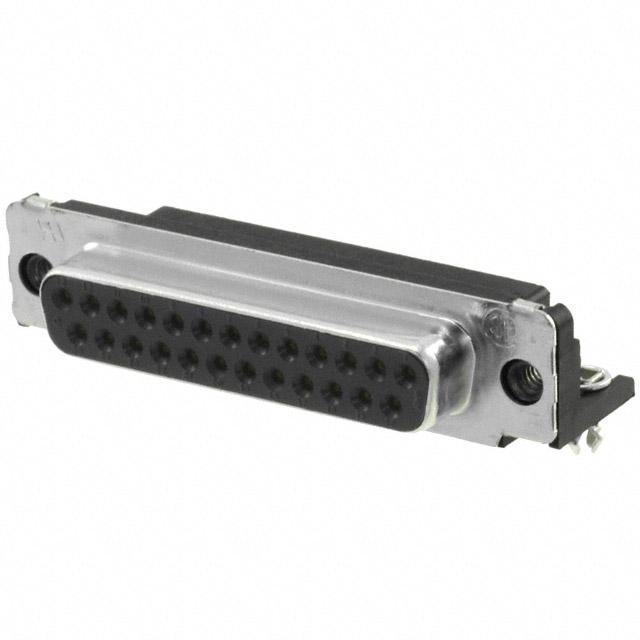

CONN D-SUB RCPT 25POS R/A SLDR
| Part | Color | Contact Material | Dielectric Material | Operating Temperature [Min] | Operating Temperature [Max] | Voltage Rating | Number of Positions | Shell Size, Connector Layout | Shell Size, Connector Layout [x] | Contact Finish | Current Rating (Amps) | Mounting Type | Material Flammability Rating | Number of Rows [custom] | Contact Finish Thickness | Flange Feature | Flange Feature | Connector Style | Contact Type | Features | Backset Spacing | Backset Spacing | Termination | Connector Type | Contact Finish Thickness | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | Black | Phosphor Bronze | Polyamide (PA) Nylon | -55 C | 105 ░C | 125 VDC | 25 | B DB | 3 | Gold | 6 A | Right Angle Through Hole | UL94 V-0 | 2 | Flash | Housing/Shell | 4-40 | D-Sub | Signal | Board Lock | 8.08 mm | 0.318 " | Solder | Receptacle Female Sockets | ||
 TE Connectivity AMP Connectors | Black | Phosphor Bronze | Polyamide (PA) Nylon | -55 C | 105 ░C | 125 VDC | 25 | B DB | 3 | Gold | 6 A | Right Angle Through Hole | UL94 V-0 | 2 | Housing/Shell | 4-40 | D-Sub | Signal | Board Lock | 8.08 mm | 0.318 " | Solder | Receptacle Female Sockets | 30 Áin | 0.76 Ám |
