9388 Series
Manufacturer: Belden Inc.
Beta
⌘K

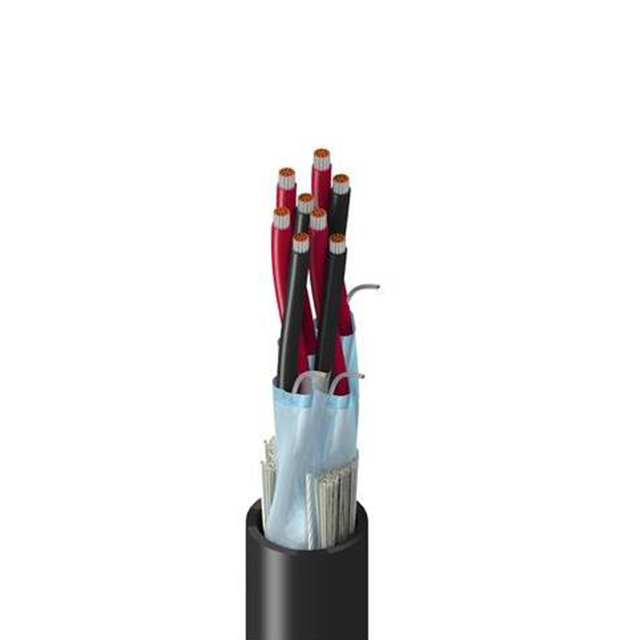

MULTI-PAIR 8CON 18AWG CHROM
| Part | Shield Coverage | Shield Material | Conductor Material | Cable Type | Jacket (Insulation) Material | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Features | Conductor Strand [custom] | Conductor Strand [custom] | Shield Type | Ratings | Wire Gauge | Number of Conductors | Length | Length | Usage | Jacket Color | Conductor Insulation | Jacket (Insulation) Diameter | Jacket (Insulation) Diameter | Operating Temperature [Min] | Operating Temperature [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | 100 % | Aluminum | Copper Tinned | Multi-Pair | Poly-Vinyl Chloride (PVC) | 0.053 " | 1.346 mm | Drain Wire Rip Cord | 30 AWG | 19 | Foil | UL Style 2464 | 18 AWG | 8 | 152.4 m | 500 ft | Instrumentation | Chrome | Poly-Vinyl Chloride (PVC) | 0.461 " | 11.71 mm | -30 ░C | 105 ░C |
Belden Inc. | 100 % | Aluminum | Copper Tinned | Multi-Pair | Poly-Vinyl Chloride (PVC) | 0.053 " | 1.346 mm | Drain Wire Rip Cord | 30 AWG | 19 | Foil | UL Style 2464 | 18 AWG | 8 | 304.8 m | 1000 ft | Instrumentation | Chrome | Poly-Vinyl Chloride (PVC) | 0.461 " | 11.71 mm | -30 ░C | 105 ░C |
Belden Inc. | 100 % | Aluminum | Copper Tinned | Multi-Pair | Poly-Vinyl Chloride (PVC) | 0.053 " | 1.346 mm | Drain Wire Rip Cord | 30 AWG | 19 | Foil | UL Style 2464 | 18 AWG | 8 | Instrumentation | Chrome | Poly-Vinyl Chloride (PVC) | 0.461 " | 11.71 mm | -30 ░C | 105 ░C |
