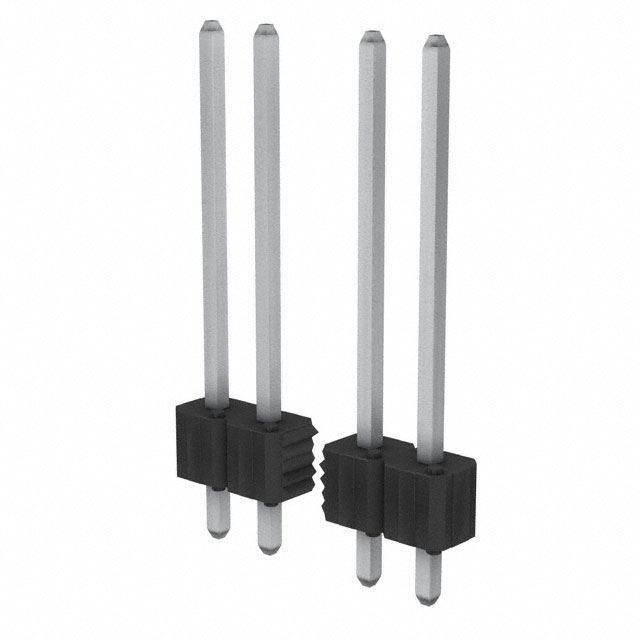

68653 Series

Catalog

BERGSTIK II .100CC DR ST RAIGHT

Part	Termination	Contact Length - Post [x]	Contact Length - Post [x]	Connector Type	Contact Finish - Post	Pitch - Mating	Pitch - Mating	Insulation Color	Number of Positions	Material Flammability Rating	Contact Type	Fastening Type	Contact Shape	Voltage Rating	Insulation Height	Insulation Height	Shrouding	Number of Rows	Current Rating (Amps)	Overall Contact Length	Overall Contact Length	Number of Positions Loaded	Contact Material	Mounting Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish - Mating
Amphenol ICC (FCI) 68653-429HLF	Solder	2.41 mm	0.095 in	Header	Tin	0.1 in	2.54 mm	Black	29	UL94 V-0	Male Pin	Push-Pull	Square	110 VDC	0.1 in	2.54 mm	Unshrouded	1	5 A	18.67 mm	0.735 in	All	Phosphor Bronze	Through Hole	2.54 çm	100 çin
Amphenol ICC (FCI) 68653-128HLF	Solder	2.41 mm	0.095 in	Header		0.1 in	2.54 mm	Black	28	UL94 V-0	Male Pin	Push-Pull	Square	110 VDC	0.1 in	2.54 mm	Unshrouded	1	5 A	18.67 mm	0.735 in	All	Phosphor Bronze	Through Hole	0.76 Ám	30 Áin	Gold or Gold GXT™
Amphenol ICC (FCI) 68653-415HLF	Solder	2.41 mm	0.095 in	Header	Tin	0.1 in	2.54 mm	Black	15	UL94 V-0	Male Pin	Push-Pull	Square	110 VDC	0.1 in	2.54 mm	Unshrouded	1	5 A	18.67 mm	0.735 in	All	Phosphor Bronze	Through Hole	2.54 çm	100 çin
Amphenol ICC (FCI) 68653-134HLF	Solder	2.41 mm	0.095 in	Header		0.1 in	2.54 mm	Black	34	UL94 V-0	Male Pin	Push-Pull	Square	110 VDC	0.1 in	2.54 mm	Unshrouded	1	5 A	18.67 mm	0.735 in	All	Phosphor Bronze	Through Hole	0.76 Ám	30 Áin	Gold or Gold GXT™
Amphenol ICC (FCI) 68653-119HLF	Solder	2.41 mm	0.095 in	Header		0.1 in	2.54 mm	Black	19	UL94 V-0	Male Pin	Push-Pull	Square	110 VDC	0.1 in	2.54 mm	Unshrouded	1	5 A	18.67 mm	0.735 in	All	Phosphor Bronze	Through Hole	0.76 Ám	30 Áin	Gold or Gold GXT™
Amphenol ICC (FCI) 68653-426HLF	Solder	2.41 mm	0.095 in	Header	Tin	0.1 in	2.54 mm	Black	26	UL94 V-0	Male Pin	Push-Pull	Square	110 VDC	0.1 in	2.54 mm	Unshrouded	1	5 A	18.67 mm	0.735 in	All	Phosphor Bronze	Through Hole	2.54 çm	100 çin
Amphenol ICC (FCI) 68653-120HLF	Solder	2.41 mm	0.095 in	Header		0.1 in	2.54 mm	Black	20	UL94 V-0	Male Pin	Push-Pull	Square	110 VDC	0.1 in	2.54 mm	Unshrouded	1	5 A	18.67 mm	0.735 in	All	Phosphor Bronze	Through Hole	0.76 Ám	30 Áin	Gold or Gold GXT™
Amphenol ICC (FCI) 68653-106HLF	Solder	2.41 mm	0.095 in	Header		0.1 in	2.54 mm	Black	6	UL94 V-0	Male Pin	Push-Pull	Square	110 VDC	0.1 in	2.54 mm	Unshrouded	1	5 A	18.67 mm	0.735 in	All	Phosphor Bronze	Through Hole	0.76 Ám	30 Áin	Gold or Gold GXT™
Amphenol ICC (FCI) 68653-113HLF	Solder	2.41 mm	0.095 in	Header		0.1 in	2.54 mm	Black	13	UL94 V-0	Male Pin	Push-Pull	Square	110 VDC	0.1 in	2.54 mm	Unshrouded	1	5 A	18.67 mm	0.735 in	All	Phosphor Bronze	Through Hole	0.76 Ám	30 Áin	Gold or Gold GXT™
Amphenol ICC (FCI) 68653-135HLF	Solder	2.41 mm	0.095 in	Header		0.1 in	2.54 mm	Black	35	UL94 V-0	Male Pin	Push-Pull	Square	110 VDC	0.1 in	2.54 mm	Unshrouded	1	5 A	18.67 mm	0.735 in	All	Phosphor Bronze	Through Hole	0.76 Ám	30 Áin	Gold or Gold GXT™
