SRU6018 Series

Catalog

IND6.5X6.2X1.8MM,10UH30%1.7A,SHDSMD /TAPE & REEL - 7" REEL

Part	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Inductance Frequency - Test	Type	DC Resistance (DCR) [Max]	Material - Core	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Tolerance	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Current - Saturation (Isat)	Mounting Type	Frequency - Self Resonant	Current Rating (Amps)	Q @ Freq [custom]	Q @ Freq [custom]	Inductance	Shielding	Q @ Freq
Bourns Inc. SRU6018-100Y	0.244 in	0.256 in	6.2 mm	6.5 mm	100 kHz	Drum Core Wirewound	88 mOhm	Ferrite	Nonstandard	125 °C	-40 C	30 %	0.079 in	2 mm	1 A	Surface Mount	30 MHz	1.7 A	12	2.52 MHz	10 µH	Shielded

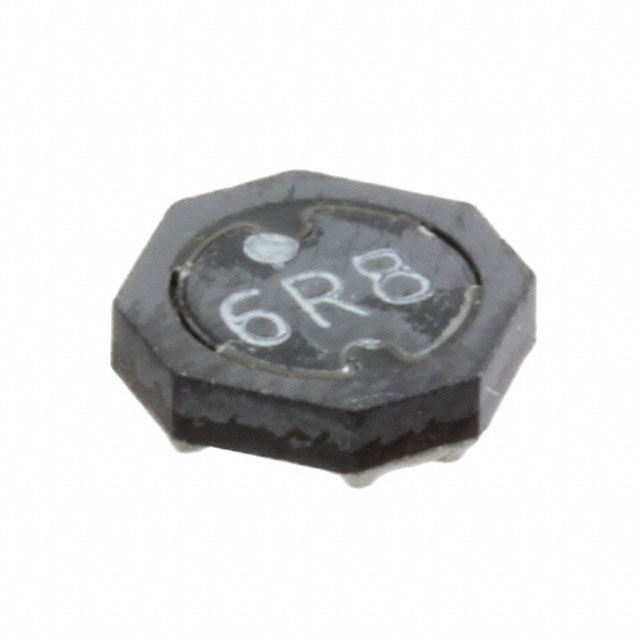

Bourns Inc. SRU6018-6R8Y	0.244 in	0.256 in	6.2 mm	6.5 mm	100 kHz	Drum Core Wirewound		Ferrite	Nonstandard	125 °C	-40 C	30 %	0.079 in	2 mm	1.2 A	Surface Mount	40 MHz	1.9 A			6.8 µH	Shielded	7.96 MHz 8
Bourns Inc. SRU6018-470Y	0.244 in	0.256 in	6.2 mm	6.5 mm	100 kHz	Drum Core Wirewound	410 mOhm	Ferrite	Nonstandard	125 °C	-40 C	30 %	0.079 in	2 mm	460 mA	Surface Mount	14 MHz	800 mA	12	2.52 MHz	47 µH	Shielded
Bourns Inc. SRU6018-4R7Y	0.244 in	0.256 in	6.2 mm	6.5 mm	100 kHz	Drum Core Wirewound	42 mOhm	Ferrite	Nonstandard	125 °C	-40 C	30 %	0.079 in	2 mm	1.4 A	Surface Mount	50 MHz	2.2 A			4.7 ÁH	Shielded	7.96 MHz 8
